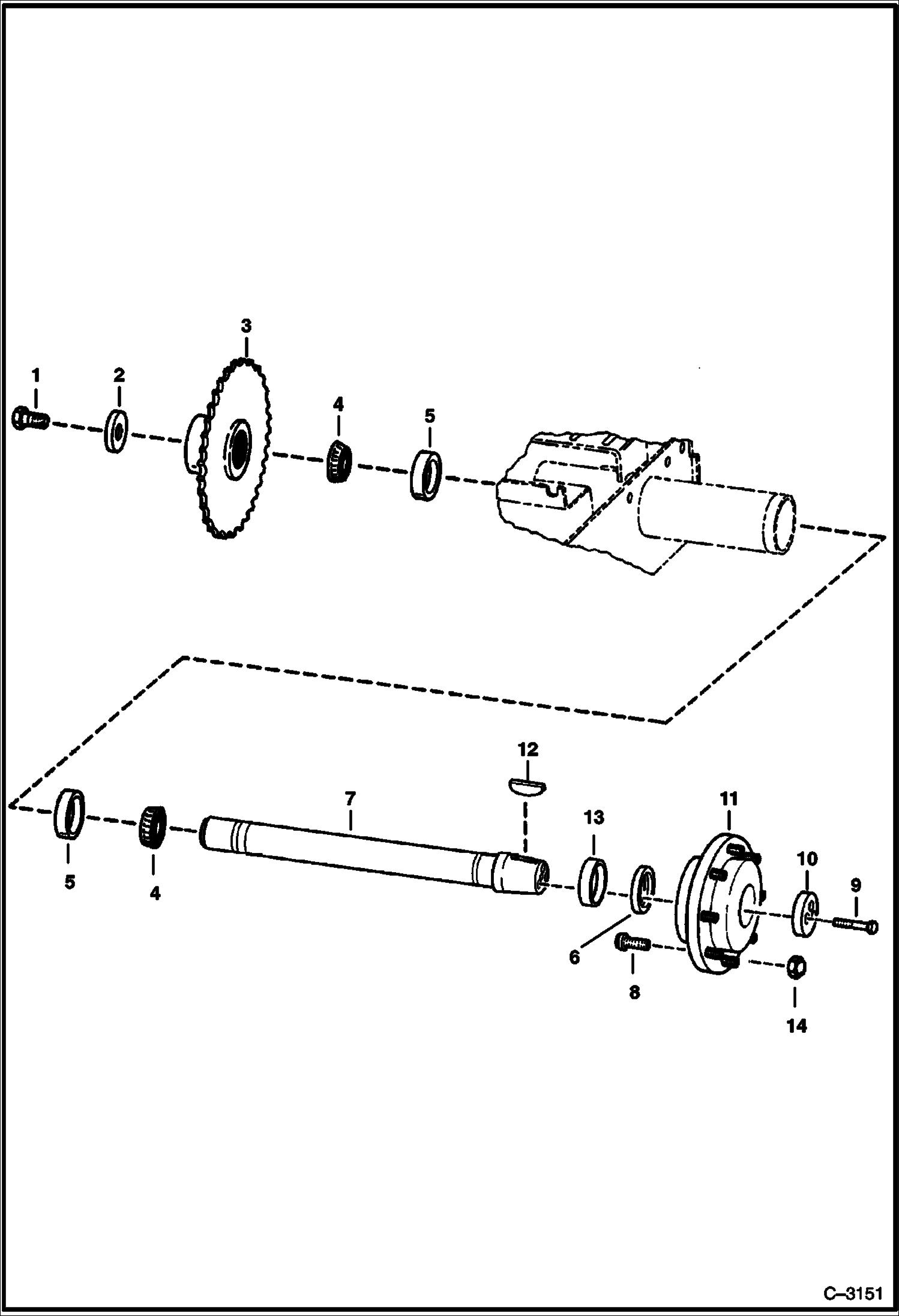

Запчасти Bobcat 800s AXLE DRIVE TRAIN

1

2C1626

BOLT

2

6558694

WASHER

3

6568918

SPROCKET, AXLE

4

1321608

BEARING, CONE

5

1321607

CUP, BEARING

6

6671138

SEAL, OIL 3.097'' I.D. - Before ordering seal, Ref. 6, determine if axle, Ref. 7, uses wear ring. W/wear ring Order 6658229, W/O wear ring Order Ref. 6671138

6

6658229

SEAL, OIL 3.22'' I.D. - Before ordering seal, Ref. 6, determine if axle, Ref. 7, uses wear ring. W/wear ring Order 6658229, W/O wear ring Order 6671138

7

6709757

SHAFT, AXLE W/O wear ring

8

6709170

BOLT, WHEEL

9

17C1024

BOLT

10

6565947

WASHER recessed

11

6578857

HUB, WHEEL W/Ref. 8

12

6J1664

KEY

13

6558693

WEAR RING wear - service part only

14

6564669

NUT, 10 wheel
