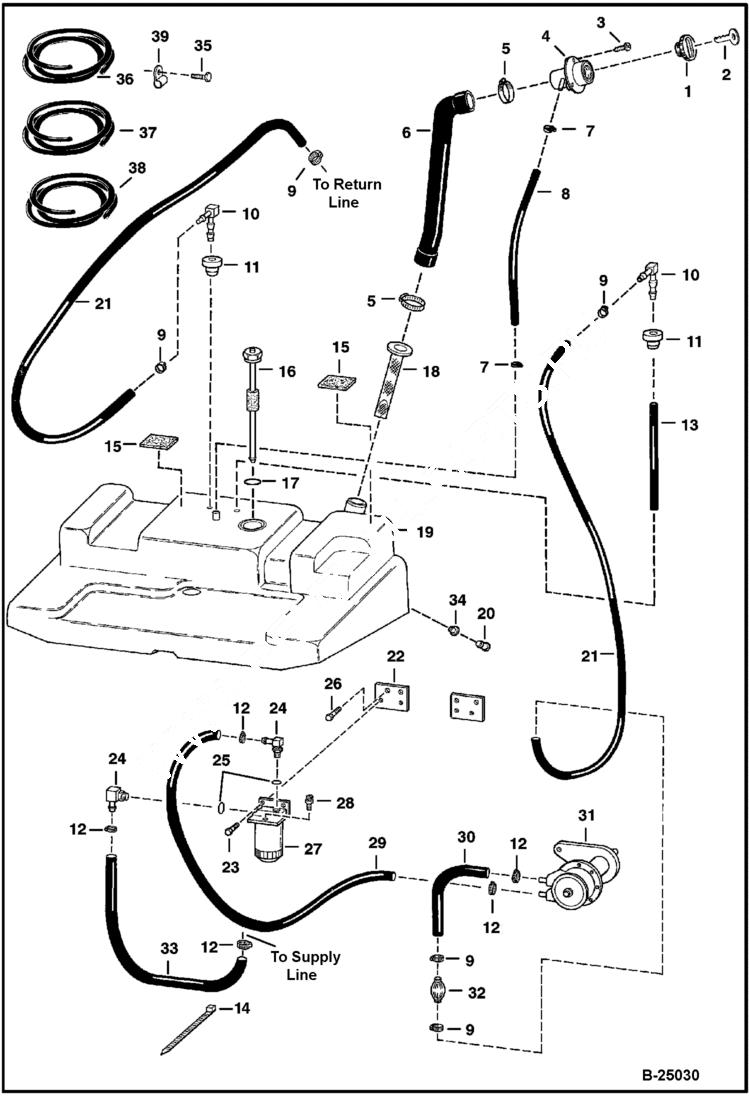

Запчасти Bobcat 800s FUEL SYSTEM MAIN FRAME

1

6661114

CAP. DIESEL green fuel fill

1

6661696

CAP, FUEL LOCKING locking - W/Ref. 2 - Code PK510

2

6587458

KEY Code PK510

3

6706517

SCREW

4

6701449

FILLER TUBE

5

42H24

CLAMP-5

6

6717451

HOSE

7

44H20

CLAMP Was 6666864 - A

8

HOSE NLA - 38'' (965mm) long - Order Ref. 36

9

5HM13

CLAMP

10

6598908

ELBOW Was 6681462 - A

11

6553411

BUSHING 0.38'' ID

12

5HM14

CLAMP

13

HOSE NLA - 12'' (305 mm) long - Was 6579554 - A

13

6729854

TUBE 12.5'' (317,5 mm) long

14

6610510

TIE

15

6578278

PAD self adhesive one side

16

7179839

SENSOR FUEL W/gasket - Was 6680438 - A

17

79K14

O RING 10

17

6717579

GASKET

18

7120881

SCREEN, FILLER Was 6569219 - A

19

6708527

TANK, FUEL

20

6599645

PLUG, STEEL .5'' shoulder

20

7203382

PLUG, STEEL fuel drain - .75'' shoulder - Was 6717401 - A

21

HOSE NLA - 29.5''(749mm) long - Order Ref. 38

22

6710488

MOUNT

23

53CM830

BOLT

24

6715183

ELBOW W/Ref. 25 - check boss face to determine correct replacement O-ring

25

99K5

O-RING for tapered boss face

25

79K5

O RING 10 for flat boss face

26

43C512

BOLT

27

6667353

FILTER ASSY W/Ref. 28

27

6667352

FILTER, FUEL W/SEPARATOR 12

27

72F1

FITTING

28

6658180

PLUG, BLEED

29

HOSE NLA - 14'' (354mm) long - Order Ref. 37

30

HOSE NLA - 9.5'' (241mm) long - Order Ref. 38

31

FUEL PUMP See Illustration FUEL INJECTION SYSTEM/ B17431

32

6657734

PUMP, PRIMER HAND 124 mm (4.88'') long - B

33

HOSE NLA - 17.5'' (445mm) long - Order Ref. 37

34

6717402

BUSHING 0.54'' ID

35

1CM816

BOLT

36

6578172

HOSE bulk - sold per foot

37

6577822

HOSE bulk - sold per foot - .3125'' ID

38

6577821

HOSE bulk - sold per foot - .25'' ID

39

30H30

CLAMP
