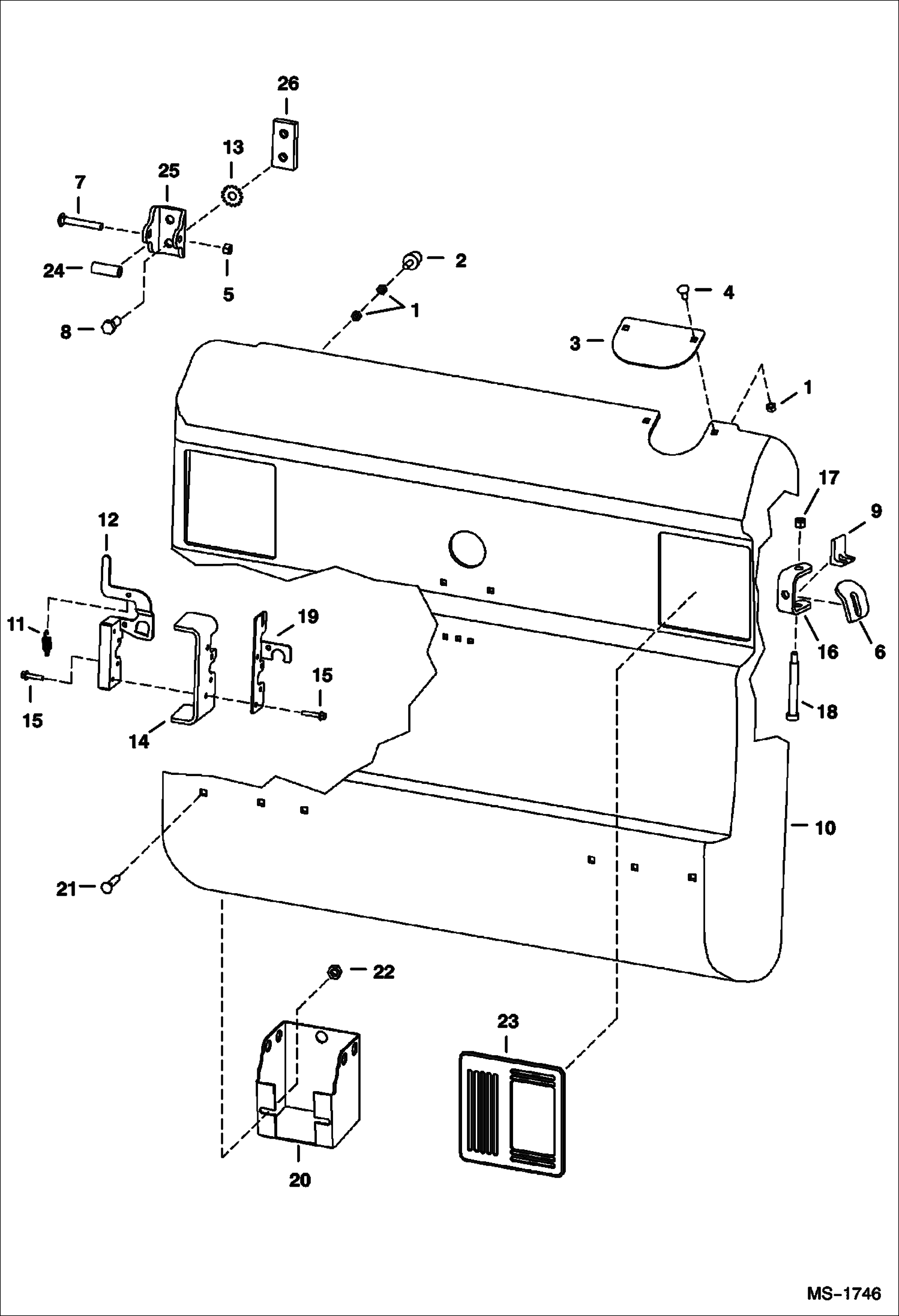

Запчасти Bobcat 800s REAR DOOR (S/N 5201 & Bel, 5202 & Bel.) MAIN FRAME

1

61D5

NUT

2

6655399

BUMPER

3

6714509

COVER exhaust

4

37C512

BOLT

5

61D6

NUT 5

6

6714126

DOOR STOP

7

37C644

BOLT carriage

8

17C820

BOLT Was 25G000820B - A

9

6719766

STOP

10

REAR DOOR See BTI357 - NLA - Was 6711524 - A

11

6714210

SPRING

12

6670867

LATCH, REAR DOOR

13

6675273

WASHER lock

14

6711527

LATCH PLATE weld-on

15

31C420

BOLT 5

16

6733575

HINGE, REAR DOOR weld-on - Was 6711526 - A

17

59D6

NUT

18

6809845

BOLT Was 38C856 - B

19

6711664

GUIDE, LATCH latch

20

6715318

TOOL HOLDER standard for Europe

21

37C612

BOLT

22

55D6

NUT

23

6670287

COVER

24

6719550

TUBE striker

25

6719524

STRIKER

26

6719525

BAR threaded striker
