Запчасти Bobcat 800s REAR AUXILIARY HYDRAULICS (Standard Flow) ACCESSORIES & OPTIONS

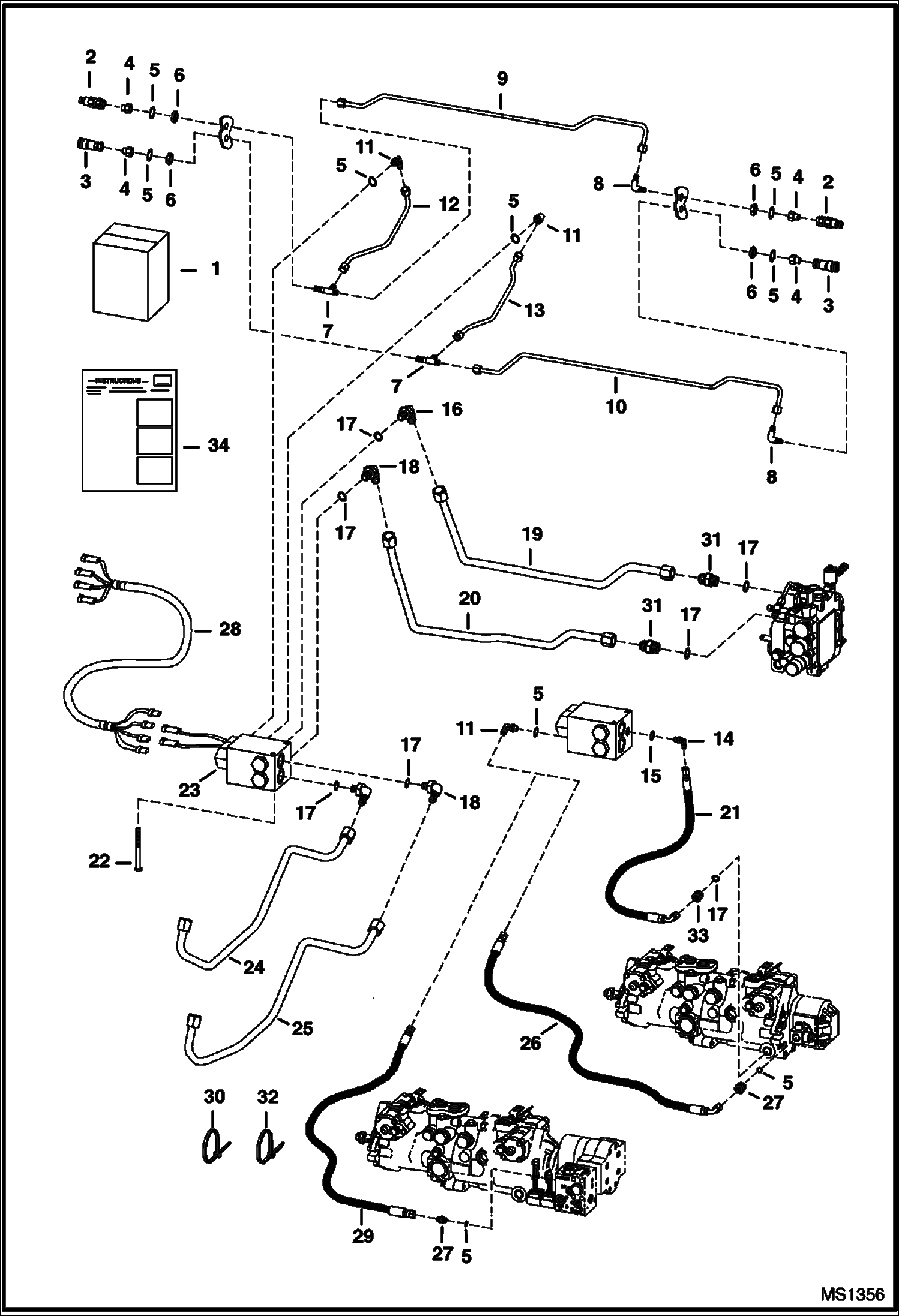

Схема запчастей Bobcat 800s - REAR AUXILIARY HYDRAULICS (Standard Flow) ACCESSORIES & OPTIONS

Артикул

Название

Примечание

Количество

1

KIT See Illustration HIGH HORSEPOWER HYDRAULICS/ PE2653 For High Flow Rear Auxiliary - SALES - Ref. 2-34 - Order 6725267 from SALES

2

6667803

COUPLER, FF FEMALE

3

6667804

COUPLER, FF MALE

4

6706633

ADAPTER W/Ref. 5 - flat boss face

5

99K6

O RING

6

86F5

NUT

7

TEE NLA - Was 6719298 - A

7

97K6

O RING flared end

7

91K5

TEE

8

88F5

ELBOW Was 88FN00005B - A

9

6718552

TUBELINE

10

6718553

TUBELINE

11

17KB0606

FITTING tapered boss face - W/Ref. 5 - Was 17KV00005B - A

11

17KB0606

FITTING tapered boss face - W/Ref. 5 - W/power bobtach - Was 17KV00005B - A

11

97K6

O RING flared end

12

6719793

TUBELINE

13

6719794

TUBELINE

14

17KB0404

FTG HYD ELBOW 90 W/Ref. 15 - tapered boss face - Was 17KV00003B - A

14

96K4

O-RING flared end

15

79K4

O RING 10

16

6716443

ELBOW W/Ref. 17

16

97K12

O'RING flared end

17

99K12

O RING tapered boss face

17

79K12

O RING 10 flat boss face

18

17KB1212

FITTING, HYD ELBOW W/Ref. 17 - tapered boss face - Was 17KV00008B - A

18

97K12

O'RING flared end

19

6719789

TUBELINE

20

6719790

TUBELINE

21

6714875

HOSE

22

17C672

BOLT

23

6665572

VALVE See Illustration REAR AUXILIARY VALVE/ TS1362

24

6719791

TUBELINE

25

6719792

TUBELINE

26

6714808

HOSE w/ 90 degrees hose end

27

15KB0606

FITTING, HYD CONNECTOR W/Ref. 5 - Use W/Ref. 26

27

15KB0606

FITTING, HYD CONNECTOR W/Ref. 5 - Use W/Ref. 34 & power bob-tach

28

6718645

HARNESS

29

6730884

HOSE

30

6624289

STRAP, TIE

31

15K8

FITTING W/Ref. 17 - flat boss face - not in kit

32

6610510

TIE

33

ADAPTER NLA - W/Ref. 17 - tapered boss face - Was 6715186 - A

33

97K12

O'RING flared end

33

15KB0612

FITTING, HYD CONNECTOR W/Ref. 17 - flat boss face

33

14K5

TEE

34

6900980

INSTRUCTIONS

Выбрано товаров: 46
