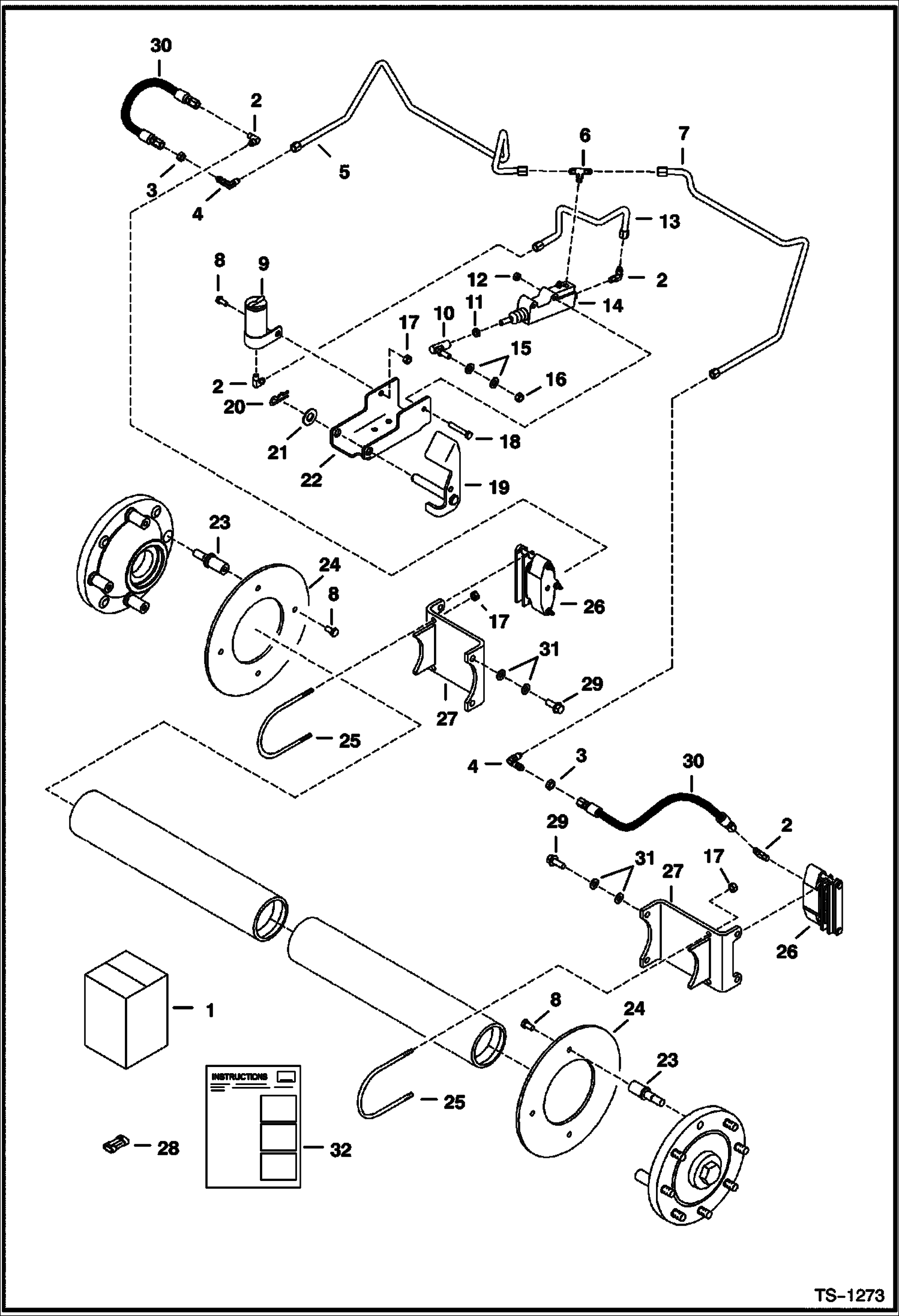

Запчасти Bobcat 800s EUROPEAN ACCESSORIES (Caliper Brake Kit) ACCESSORIES & OPTIONS

1

KIT NLA - Ref. 2-32 - Was 6718032 - A

2

83F3

ELBOW 5

2

ELBOW NLA - Was 83FN-3 - A

2

97K4

O'RING flared end

3

86F3

LOCKNUT

4

88F3

ELBOW 5 W/O O-rings

4

ELBOW NLA - w/ o-rings - Was 88FN-3 - A

4

97K4

O'RING

5

6710421

TUBE

6

TEE NLA - Was 98F000003B - A

7

6710420

TUBE

8

17C612

BOLT 5

9

6661117

TANK

10

6599744

BALL JOINT

11

8D6

NUT 5

12

91D5

NUT 5

13

6709400

TUBE

14

6666933

CYLINDER

15

25E17

WASHER 5

16

62D6

NUT 5

17

95D6

NUT

18

17C532

BOLT 5

19

6709239

PEDAL ASSY.

20

1318565

COTTER PIN

21

25E25

WASHER 10

22

6709236

MOUNT pedal

23

6709229

BOLT

24

6709234

DISC

25

6709361

CLAMP

26

6666932

BRAKE

27

6716901

MOUNT caliper

28

6667139

CAP

29

17C620

BOLT

30

6710415

HOSE

31

27E6

WASHER 5

32

6901702

INSTRUCTIONS Was 6724380 - A
