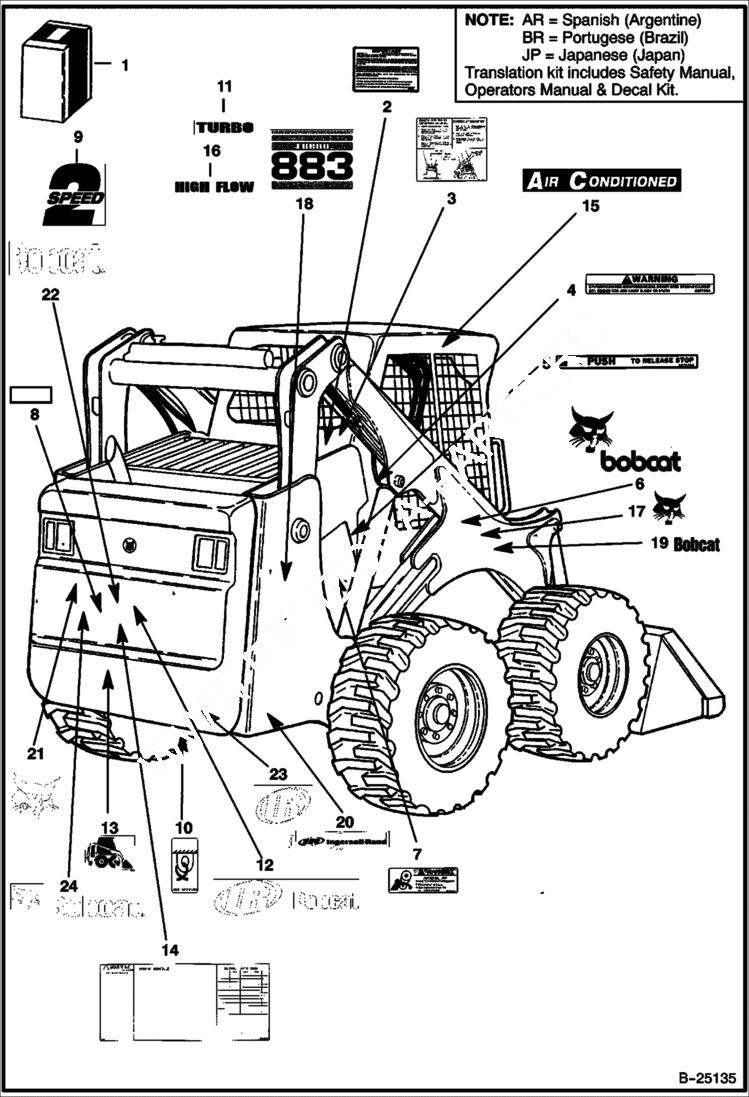

Запчасти Bobcat 800s DECALS ACCESSORIES & OPTIONS

1

KIT decal

1

KIT translation - SEE NOTE

1

KIT translation - SEE NOTE

1

KIT decal - SEE NOTE

1

KIT decal - SEE NOTE

1

KIT decal - SEE NOTE

2

6560573

DECAL spark arrestor - Was 6708937 - A

3

6729869

DECAL lift arm stop - Was 6708820 - B

4

6577754

DECAL, WARNING 5 gas spring

5

6578368

DECAL, OPERATION push to release stop

6

6729268

DECAL R.H. Bobcat & head - 10'' x 20'' - Was 6727309 - A

6

6729267

DECAL L.H. Bobcat & head - 10'' x 20'' - Was 6727308 - A

7

6708941

DECAL, WARNING rotating parts

8

6565200

DECAL, FILTER

9

6729078

DECAL 2 speed - not in kit

10

6727595

DECAL See Illustration REAR AUXILIARY HYDRAULICS/ MS1356 Was 6595014 - B

11

6727912

DECAL turbo

12

DECAL NLA - IR Logo - Was 6727311 - A

13

6595014

DECAL Tow Hook - Order Ref. 10 - Was 6707867 - A

14

6734534

DECAL, SERVICE service/warning/filters - Was 6718398 - A

15

6729077

DECAL air conditioned - not in kit

16

6727913

DECAL high flow - Was 6714534 - A

17

6731507

DECAL RH - Bobcat head - black

17

6731508

DECAL LH - Bobcat head - black

18

6731476

DECAL Model 883

19

6731336

DECAL Bobcat - black

20

DECAL NLA - IR Logo - Black - Was 6735864 - A

21

DECAL NLA - Bobcat Head - White - Order Ref. 24

22

DECAL NLA - Bobcat - White - Order Ref. 24

23

DECAL NLA - IR - White - Was 6732423 - A

24

6735901

DECAL, LOGO BOBCAT HEAD white
