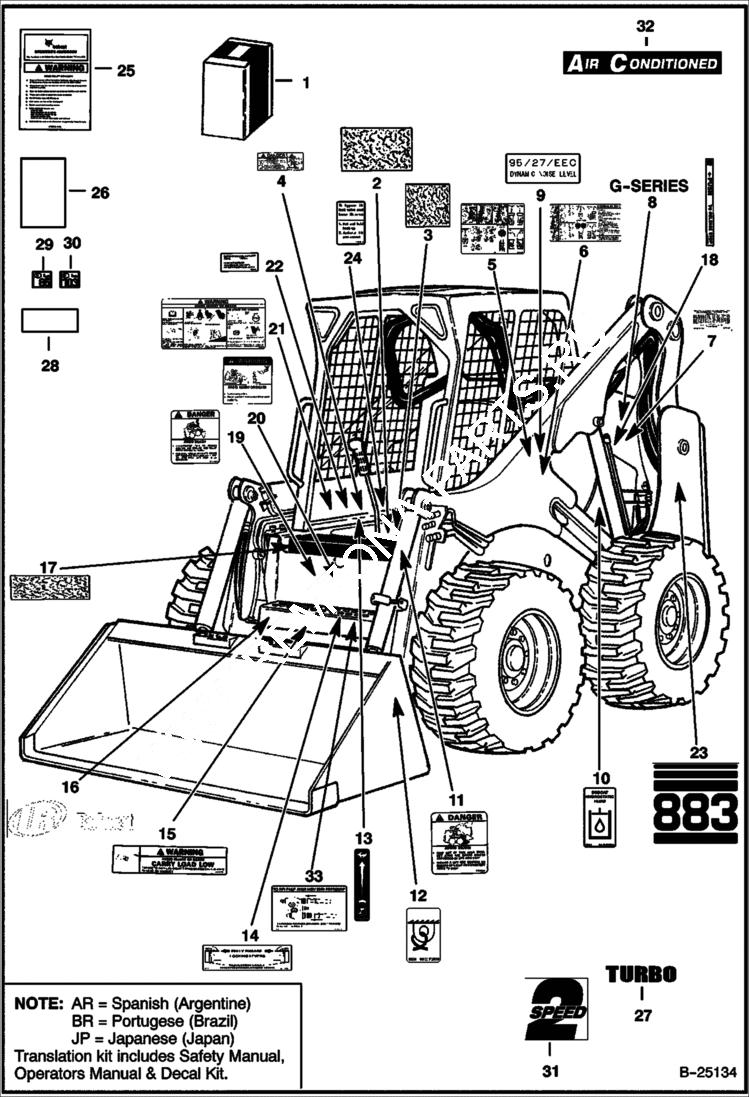

Запчасти Bobcat 800s DECALS ACCESSORIES & OPTIONS

1

KIT decal

1

KIT translation - SEE NOTE

1

KIT translation - SEE NOTE

1

KIT decal - SEE NOTE

1

KIT decal - SEE NOTE

1

KIT decal - SEE NOTE

2

6553976

SAFETY TREAD 127 x 203 mm (5 x 8'')

3

6554100

TREAD 76,2 x 152,4 mm (3 x 6'')

4

6717343

DECAL, DANGER

5

6727926

DECAL, OPERATION operating - Was 6728327 - A

6

6727926

DECAL, OPERATION hand & foot controls - not in kit

7

DECAL NLA - patent - Was 6557224 - C

8

6717907

DECAL G-Series

9

6715428

DECAL dynamic noise level - Europe

10

6565990

DECAL, OIL HYD 5 hydrostatic fluid fill

11

6579639

DECAL danger

12

6727595

DECAL Was 6595014 - B

13

6735140

DECAL, THROTTLE Was 6557565 - A

14

6561383

DECAL, OPERATION 5 Bob-Tach locking levers

15

6579528

DECAL, WARNING carry load low

16

DECAL NLA - Ingersoll Rand - white lettering - Was 6728125 - A

17

SAFETY TREAD NLA - 12'' x 25.30'' (304,8 mm x 642,6 mm) W/corners (2) cut - Order 7108222 - Was 6712791 - A

17

7108222

SAFETY TREAD 22.5'' (571,5 mm) wide irregular shape

18

6577754

DECAL, WARNING 5 gas spring

19

6579509

DECAL danger

20

6710358

DECAL warning

21

6728539

DECAL Was 6718698 - A

22

6729427

ROC DECAL rated operating capacity - 2750 lbs. - Was 6709452 - B

23

6731476

DECAL Model 883

24

6711840

DECAL manual lift release

25

6718719

HANDBOOK, OPERATOR'S W/WIRE ROPE not in kit - Was 6737783 - A

25

6558309

WIRE ROPE bulk - sold per foot - Also Order (2) of 6558310 sleeve

25

6558310

SLEEVE wire rope

25

84G3112

BOLT 5

26

6901274

OM, 883 883H LDR operator - Was 6900791 - B

27

6727912

DECAL Turbo

28

6708941

DECAL, WARNING rotating parts

29

6579385

DECAL noise warning - Europe

30

6579404

DECAL noise warning - Europe

31

6729078

DECAL 2-speed - not in kit

32

6729077

DECAL air conditioned - not in kit

33

6731757

DECAL, OPERATION to release auxiliary hyd. pressure - not in kit
