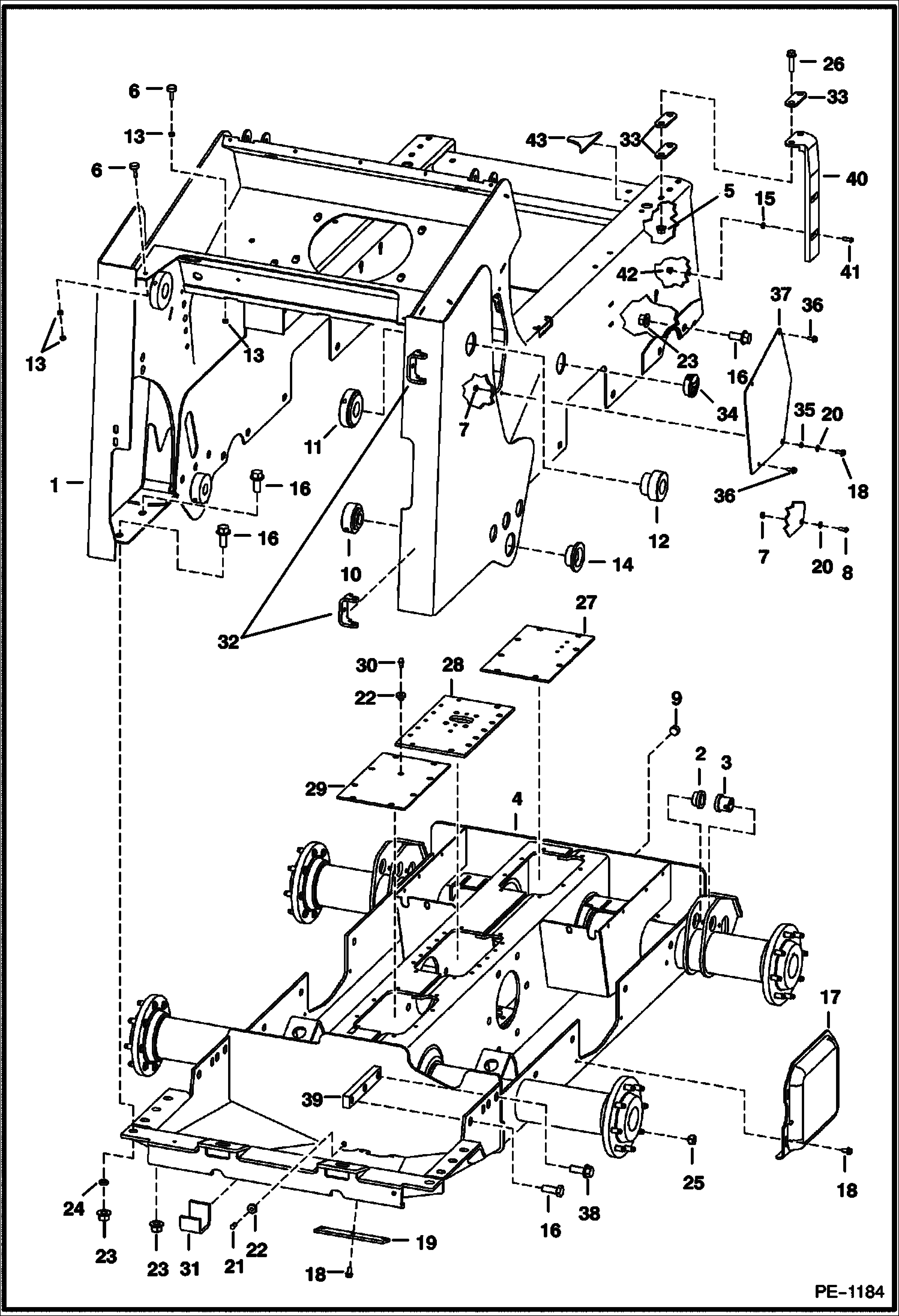

Запчасти Bobcat 800s MAIN FRAME MAIN FRAME

1

6728479

MAIN FRAME

2

6716532

BUSHING weld-on

3

6716533

BUSHING weld-on

4

CHAINCASE See Illustration DRIVE TRAIN/ TS1257 FRAME ONLY

5

83D8

NUT 5

6

6655399

BUMPER

7

97D5

NUT

8

25G514

BOLT

9

6731121

PLUG chaincase fill - Was 11F000012B - A

10

6706712

BUSHING inside upright weld-on

11

6717826

BUSHING inside upright weld-on

12

6717831

BUSHING outside upright weld-on

13

61D5

NUT

14

6709857

BUSHING outside upright weld-on

15

25E14

WSHR Use W/plastic guide

16

31C1228

BOLT

17

6719168

COVER

18

84G3712

BOLT 5

19

6700182

COVER, DRAIN

20

25E15

WASHER

21

6599645

PLUG, STEEL chaincase drain

22

6553411

BUSHING

23

53D12

NUT

24

6701097

WASHER

25

6564669

NUT, 10 See Illustration AXLE/ C3151 WHEEL

26

35C824

BOLT Use W/metal guide

26

BOLT NLA - Order 31C832 bolt - Use W/plastic guide - Was 35C832 - A

27

COVER See Illustration DISC BRAKE/ PE1678

28

COVER See Illustration DISC BRAKE/ PE1678

29

COVER See Illustration DISC BRAKE/ PE1678

30

BREATHER See Illustration DISC BRAKE/ PE1678

31

6706485

HOOK tie down - weld-on

32

6708987

HINGE, WELD-ON

33

6709900

SPACER guide - Use W/metal guide

33

6709900

SPACER guide - Use W/plastic guide

34

6718796

PLUG

35

6564535

SPACER

36

84G3112

BOLT 5

37

6706730

COVER

38

17C1228

BOLT

39

6706857

BLOCK threaded

40

GUIDE NLA - plastic - Order (2) of 6709950 guide - Also Order (4) of 35C824 bolt and (4) of 17C516 bolt - Was 6718512 - A

40

6709950

GUIDE metal

41

17C516

BOLT Use W/metal guide

41

53C516

BOLT Use W/plastic guide

42

83D5

NUT 5

43

6707515

BRACE weld-on
