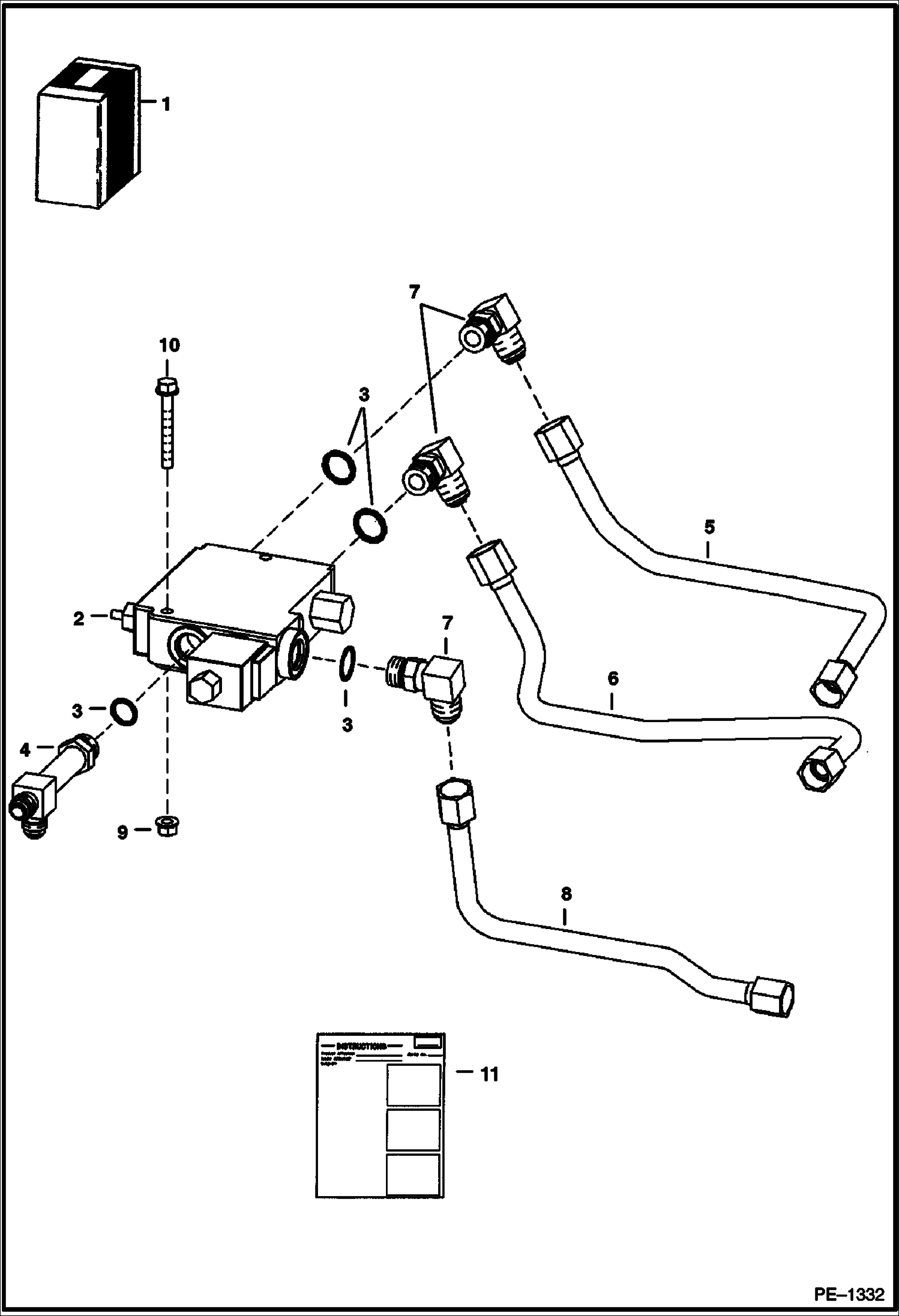

Запчасти Bobcat 800s BUCKET POSITIONING KIT ACCESSORIES & OPTIONS

1

6729651

KIT Ref. 2-11

2

6675669

VALVE, BPV See Illustration BUCKET POSITIONING VALVE/ MS1943 PAINTED PRIMER RED

3

99K10

O'RING

4

6729490

TEE W/Ref. 3

4

97K8

O-RING flared end

5

6728178

TUBELINE

6

6728177

TUBELINE

7

17KB1010

FITTING, HYD ELBOW W/Ref. 3 - Was 17KV00007B - A

7

97K10

O-RING 10 flared end

8

6728176

TUBELINE

9

83D5

NUT 5

10

17C540

BOLT Was 35C000540B - B

11

6901276

INSTRUCTIONS
