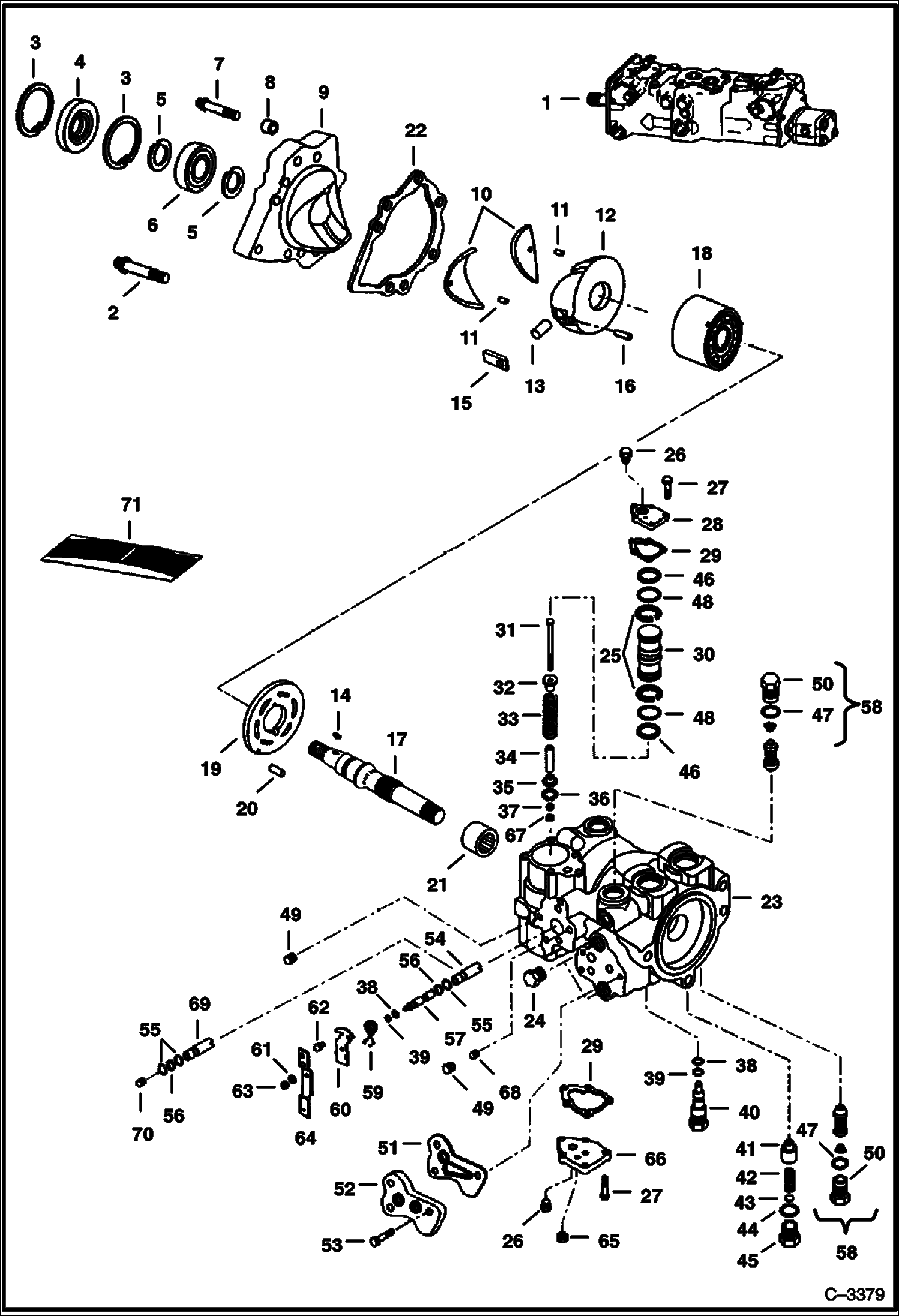

Запчасти Bobcat 800s HYDROSTATIC PUMP (Left Half) (M46 - Servo Assist Steering) (S/N 5141 14999, 5142 12999 & Below) HYDROSTATIC SYSTEM

1

PUMP NLA - W/gear pump - Model M91-46130 - Was 6665523 - A

1

PUMP, HYD TANDEM NLA - W/gear pump - Model M91-46598 - Was 6669045 - A

1

PUMP, HYD TANDEM, W/O GEAR PUMP NLA - Order 6671020REM - Was 6669045REM - A

1

6671020REM

PUMP, HYD COMPLETE, W/O GEAR PUMP

2

6666220

SCREW

3

669863

RING, SNAP

4

6687191

SEAL, OIL Was 6645090 - A

5

658128

RING, SNAP

6

654299

BEARING

7

6666219

BOLT

8

6634592

PIN

9

6656076

COVER front

10

6634613

BEARING journal

11

791355

ROLL PIN

12

6634382

SWASHPLATE

13

6632464

PIN

14

6J807

KEY, WOODRUFF

14

6682261

KEY hex

15

6631428

SLEEVE

16

6673049

PIN Was 6670273 - A

17

SHAFT NLA - half moon - Was 6666221 - A

17

6666221

SHAFT hex

18

6670274

BLOCK Was 6634311 - A

19

PLATE NLA - valve - Order 6665122 & 6666596 RH plate - Was 6634474 - B

19

6665122

PLATE valve

20

6634553

PIN

21

6631022

BEARING

22

6640612

GASKET

23

6656074

HOUSING

24

BOLT

25

6659256

BEARING

26

6645086

PLUG

27

6660434

SCREW

28

6645072

COVER servo

29

6634425

GASKET

30

6634429

PISTON servo

31

6677160

SCREW Was 6631470 - A

32

6631444

GUIDE

33

6631430

SPRING

34

6631446

STOP

35

6631445

GUIDE

36

6631469

SNAP RING

37

6653728

NUT

38

6645079

O-RING

39

6631467

BACK-UP RING

40

6632462

VALVE bypass

41

6518656

VALVE charge relief - Was 6666215 - A

42

6518657

SPRING M91-46130

42

6670272

SPRING M91-46598

43

6598058

SHIM KIT .005, .010, .020, .050, .100

44

79K10

O RING 10

45

6631465

PLUG

46

6634488

KIT W/Ref. 48

47

79K12

O RING 10

48

6653730

O-RING

49

6518510

PLUG

50

6850006

PLUG W/O O-Ring - Was 6660418 - A

51

6660779

SEAL O-ring

52

6660778

ADAPTER

53

6660780

SCREW

54

6657315

SLEEVE, WEAR (0.050)

55

25K20020

O RING 10

56

6631468

WASHER

57

6666211

VALVE SPOOL metered

58

6662847

RELIEF VALVE W/Ref. 47 & 50 - 4350 PSI (300 BAR)

59

6631449

SPRING

60

6631453

BRACKET

61

6653735

WASHER

62

6653733

SCREW

63

6653734

NUT

64

6657319

HANDLE

65

6631458

NUT

66

6645071

COVER

67

6648256

NUT locking

68

6657320

ORIFICE .157 - M91-46130

68

6669257

ORIFICE .054 - M91-46598

69

SLEEVE NLA - Was 6667897 - A

70

6631471

WASHER

71

6661039

SEAL KIT
