HYDROSTATIC MOTOR (S/N 5141 12410-23901, 5142 12270-22305)

Запчасти Bobcat 800s HYDROSTATIC MOTOR (S/N 5141 12410-23901, 5142 12270-22305) HYDROSTATIC SYSTEM

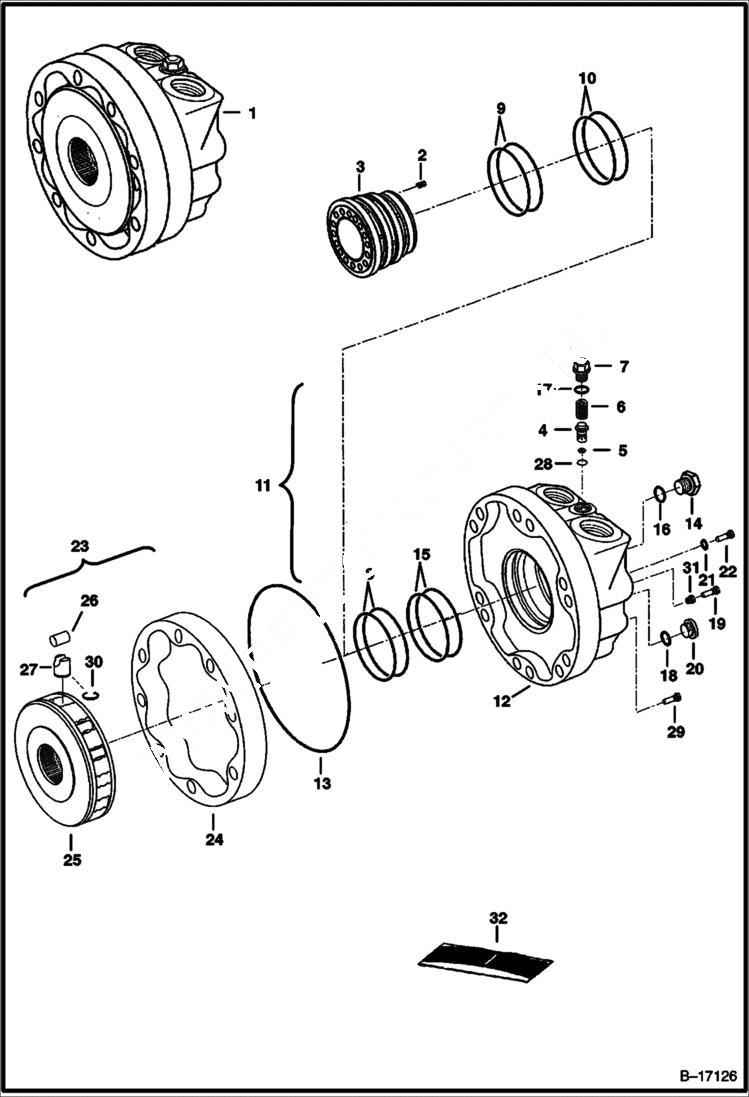

Схема запчастей Bobcat 800s - HYDROSTATIC MOTOR (S/N 5141 12410-23901, 5142 12270-22305) HYDROSTATIC SYSTEM
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

MOTOR See Illustration HYDROSTATIC MOTOR/ B18103 NLA - Ref. 2-29 - Model 5830-003-067 - Order 6675290 motor, (2) of 7231894 elbows, 17KB608 elbow & (10) of 6717806 bolt - Was 6668766 - A

1

MOTOR, DRIVE HYD See Illustration HYDROSTATIC MOTOR/ B18103 NLA - model 5830-003-157 - Order 6675290 motor & (2) of 7231894 elbows - Was 6682171 - A

1

MOTOR, DRIVE HYD See Illustration HYDROSTATIC MOTOR/ B18103 NLA - model 5830-003-157 - Order 6675290 motor & (2) of 7231894 elbows when replacing the LH motor or (1) 7231894 elbow & (1) 41E1612 adapte

1

MOTOR, DRIVE HYD See Illustration HYDROSTATIC MOTOR/ B18103 NLA - model 5830-003-157 - Order 6675290 motor & (2) of 18KB1612 elbows when replacing the LH motor or (2) 15KB1612 adapters when replacing

2

6674037

SPRING

3

REAR HOUSING NLA - Order Ref. 11 - Was 6666361 - A

4

6674043

POPPET

5

6666368

ORIFICE

6

6674042

SPRING

7

6666365

PLUG

8

6674038

SEAL W/ O-ring

9

SEAL NLA - W/ O-ring - Was 6674039 - A

10

6674040

SEAL W/ O-ring - 87,15 mm I.D.

11

REAR HOUSING NLA - Order Ref. 1 - Ref. 2-10,14-18 & 20-22 - Was 6666353 - A

12

REAR HOUSING NLA - Order Ref. 11 - Was 6666363 - A

13

25K30816

O-RING Was 6676036 - A

13

6675864

QUAD RING model 5830-003-157

14

6674045

PLUG W/Ref. 16

15

6675974

O-RING

16

6676039

O-RING

17

6671837

O-RING

18

6676038

O-RING

19

6676037

BOLT

20

6666364

PLUG W/Ref. 18 - Was 6675977 - A

21

6675976

O-RING

22

6666356

PLUG locating

23

ROTARY GROUP NLA - Ref. 24-27 - Order 6677850 cam & 6686719 block - for model 5830-003-067 - Was 6674390 - A

23

6676953

CYLINDER BLOCK Ref. 25-27 - For model 5830-003-157

23

6684036

BOLT KIT W/6 bolts & 2 bushings - for cam hole cracking

24

6675091

CAM

25

6676953

CYLINDER BLOCK W/ pistons & rollers - Was 6674219 - D

26

ROLLER NSS - Order Ref. 23 - Was 6675973 - A

27

PISTON NSS - W/Ref. 30 - Order Ref. 23 - Was 6660026 - A

28

6666369

SNAP RING

29

3GM12100

BOLT

30

RING NSS - keeper - Order Ref. 23

31

6675022

BUSHING

32

6676035

KIT, SEAL Ref. 8-10, 13, 15 & 21
