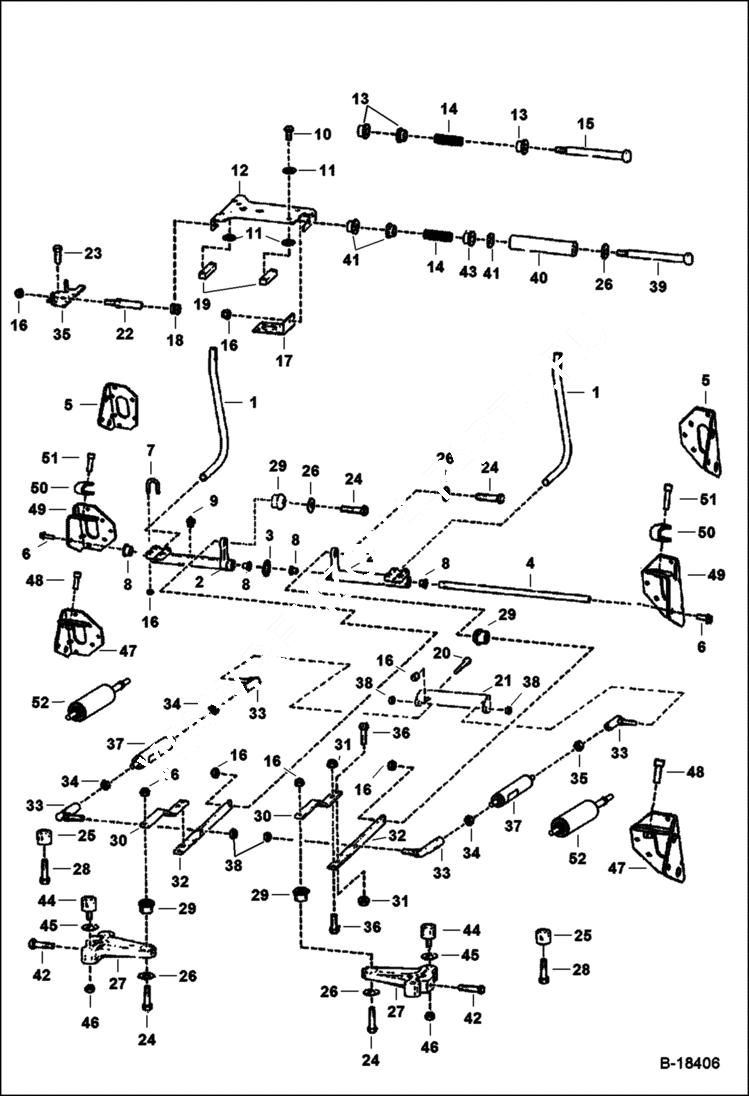

Запчасти Bobcat 800s HAND CONTROLS (S/N 5141 15001-39999, 5142 13000-39999) HYDROSTATIC SYSTEM

1

6702543

LEVER, STEERING

2

BELLCRANK NLA - .8725'' (22,2 mm) I.D. hole for Ref. 29 (6665701 bushing) - W/O notch for bushing tab - Use W/Ref. 8 (6673710 bearing) & Ref. 9 (6518200 grease zerk) - Order 7110571 bellcrank, Ref. 28

2

BELLCRANK NLA - 1.0475'' (26,2 mm) I.D. hole for Ref. 29 (6678067 Bushing) - W/notch for Use W/Ref. 8 (6703879 bushing) - Use W/Ref. 9 (6518200 Grease Zerk) - Order 7110571 Bellcrank & Ref. 9 (10H35 g

2

7110571

BELLCRANK, STEERING W/notch for Ref. 8 (6703879 bushing) - Use W/Ref. 9 (10H35 grease zerk)

2

BELLCRANK NLA - W/O notch - Use W/Ref. 8 (6673710 bearing) - .8725'' (22,2 mm) I.D. hole for Ref. 29 (6665701 bushing) - Order 7110571 bellcrank, Ref. 9 (10H35 grease zerk), Ref. 26 (619021 washer), R

2

BELLCRANK NLA - W/O notch - Use W/Ref. 8 (6673710 bearing ) - 1.0475'' (26,2 mm) I.D. hole for Ref. 29 (6678067 bushing) - Order 7110571 bellcrank, Ref. 9 (10H35 grease zerk) & (2) of Ref. 8 (6703879

2

BELLCRANK NLA - Use W/Ref. 9 (10H35 grease zerk ) - Order 7110571 bellcrank & (2) of Ref. 8 (6703879 bushing) - Was 7110572 - A

3

6599741

WASHER wave

4

ROD NLA - Use W/Ref. 6 (17C000616B bolt) - Order 6716545 rod & 45C000620B bolt (2) - Was 6576250 - A

4

6716545

ROD

5

6577230

BRACKET

6

17C616

BOLT 5

6

45C620

BOLT

7

6732997

U-BOLT Was 6700768 - A

8

6703879

BUSHING, PLASTIC W/tab - Use W/Ref. 2 (NLA/ 6703880, NLA/ 7101047 & 7110571 bellcranks)

8

6673710

BEARING, NEEDLE Use W/Ref. 2 (NLA/ 6716977, NLA/ 7101048 & NLA/ 7110572 bellcranks)

9

6518200

FITTNG, GREASE 10 press fit - Use W/Ref. 2 (NLA/ 6716977 & NLA/ 7101048 bellcranks)

9

10H35

FITTING, GREASE 10 threaded - Use W/Ref. 2 (NLA/ 7110572 bellcrank & 7110571 bellcrank)

10

8C616

SCREW

11

6557831

WASHER

12

6706095

MOUNT

12

6716116

MOUNT

13

BUSHING NLA - Order Ref. 26, 39, 40 & (3) of Ref. 41 - Was 6706097 - A

14

6701535

SPRING

15

BOLT NLA - shoulder - Order Ref. 26, 39, 40 & (3) of Ref. 41 - Was 6702715 - A

16

95D6

NUT Was 91D000006B - B

17

6576196

MOUNT

18

6706098

GUIDE

19

6702716

BLOCK

20

17C612

BOLT 5

21

6706106

MOUNT

22

6577058

PIN

23

1CM820

BOLT

24

17C626

BOLT

25

6711643

CAM

26

6563914

WASHER 1.00'' (25,4mm) OD

26

619021

WASHER, 5 0.13'' thick - 32 mm (1.25'') OD

27

LEVER NLA - .8725'' (22,2 mm) ID hole for Ref. 29 (6665701 bushing) - Order 6729956 lever, Ref. 26 (619021B) washer & Ref. 29 (6678067 bushing - Was 6711644 - A

27

6729956

LEVER, PINTLE 1.0475'' (26,2 mm) ID hole for Ref. 29 (6678067 bushing) - W/ notch for bushing tab - Was 6729957

28

35C612

BOLT

29

6665701

BUSHING, PRESS FIT neoprene - .885'' (22,5mm) O.D.

29

6685060

BUSHING, TORSION torsion - 26,8 mm (1.055'') OD - Was 6678067 - A

30

6713111

LINK

31

83D6

NUT 5

32

6714025

LINK

33

6599744

BALL JOINT

34

8D6

NUT 5

35

6706096

MOUNT

36

17C620

BOLT

37

GAS SPRING NLA - Japan Option - Order Ref. 52 - Was 6649551 - A

38

96D6

NUT Was 86D000006B - B

39

17C680

BOLT

40

6715164

SLEEVE, SPRING

41

6715163

BUSHING, PRESS FIT

42

35C624

BOLT

43

25E24

WASHER AHC

44

6673789

BEARING

45

25E17

WASHER 5

46

98D6

NUT

47

BRACKET NLA - RH - Order Ref. 49-51 - Was 6733022 - A

47

BRACKET NLA - L.H. - Order Ref. 49-51 - Was 6733024 - A

48

93G824

BOLT Was 73G824 - A

49

7128600

BRACKET RH

49

7128601

BRACKET LH

50

7121779

PAD

51

73G828

BOLT

52

7188108

GAS SPRING
