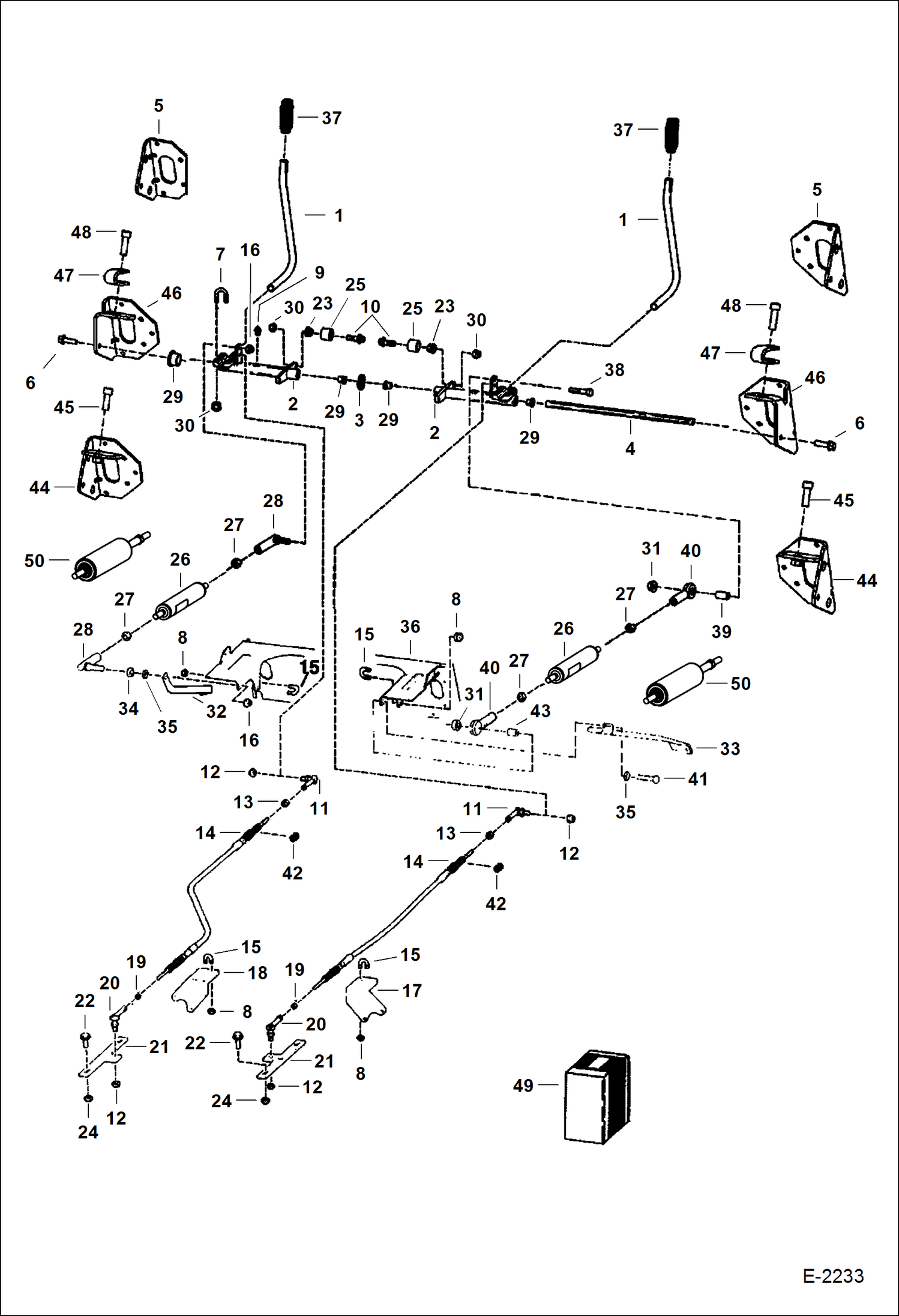

Запчасти Bobcat 800s HAND CONTROLS (S/N 5141 14999, 5142 12999 & Below) HYDROSTATIC SYSTEM

1

6702543

LEVER, STEERING

2

6703881

BELLCRANK

3

6599741

WASHER wave

4

6576250

ROD

5

6577230

BRACKET

6

17C616

BOLT 5

7

6732997

U-BOLT Was 6700768 - A

8

85D5

NUT 5

9

6518200

FITTNG, GREASE 10

10

6705966

BOLT

11

6631036

JOINT RH thread - ID only

12

86D4

NUT

13

8D4

NUT

14

6710202

CABLE W/Ref. 42

15

6592766

U-BOLT

16

86D6

NUT

17

6703627

MOUNT

18

6703626

MOUNT

20

6652799

BALL JOINT LH thread - ID only

21

6704616

LEVER pintle

22

35C610

BOLT 5

23

57D6

NUT 5

24

85D6

NUT, 5

25

6704435

WEAR CAM

26

GAS SPRING NLA - Japan Option - Order Ref. 50 - Was 6649551 - A

27

8D6

NUT 5

28

6599744

BALL JOINT

29

6703879

BUSHING, PLASTIC W/tab

30

83D6

NUT 5

31

95D6

NUT Was 91D000006B - A

32

6703551

BRACE LH

33

6708064

BRACE RH

34

62D6

NUT 5

35

25E18

WASHER

36

6706336

PANEL See Illustration PANELS/ TS1232

37

6513963

GRIP not Use W/ multi-switch handles

38

17C636

BOLT

39

6708314

BUSHING, SPACER

40

6512954

ROD END RH threads

41

17C632

BOLT 5

42

6666534

SEAL

43

6705484

BUSHING

44

BRACKET NLA - RH - Order Ref. 46-48 - Was 6733022 - A

44

BRACKET NLA - LH - Order Ref. 46-48 - Was 6733024 - A

45

93G824

BOLT Was 73G824 - A

46

7128600

BRACKET RH

46

7128601

BRACKET LH

47

7121779

PAD

48

73G828

BOLT

49

KIT See Illustration M46-M44 PUMP CONVERSION/ TS1654 - M44-M46 pump conversion

50

7188108

GAS SPRING
