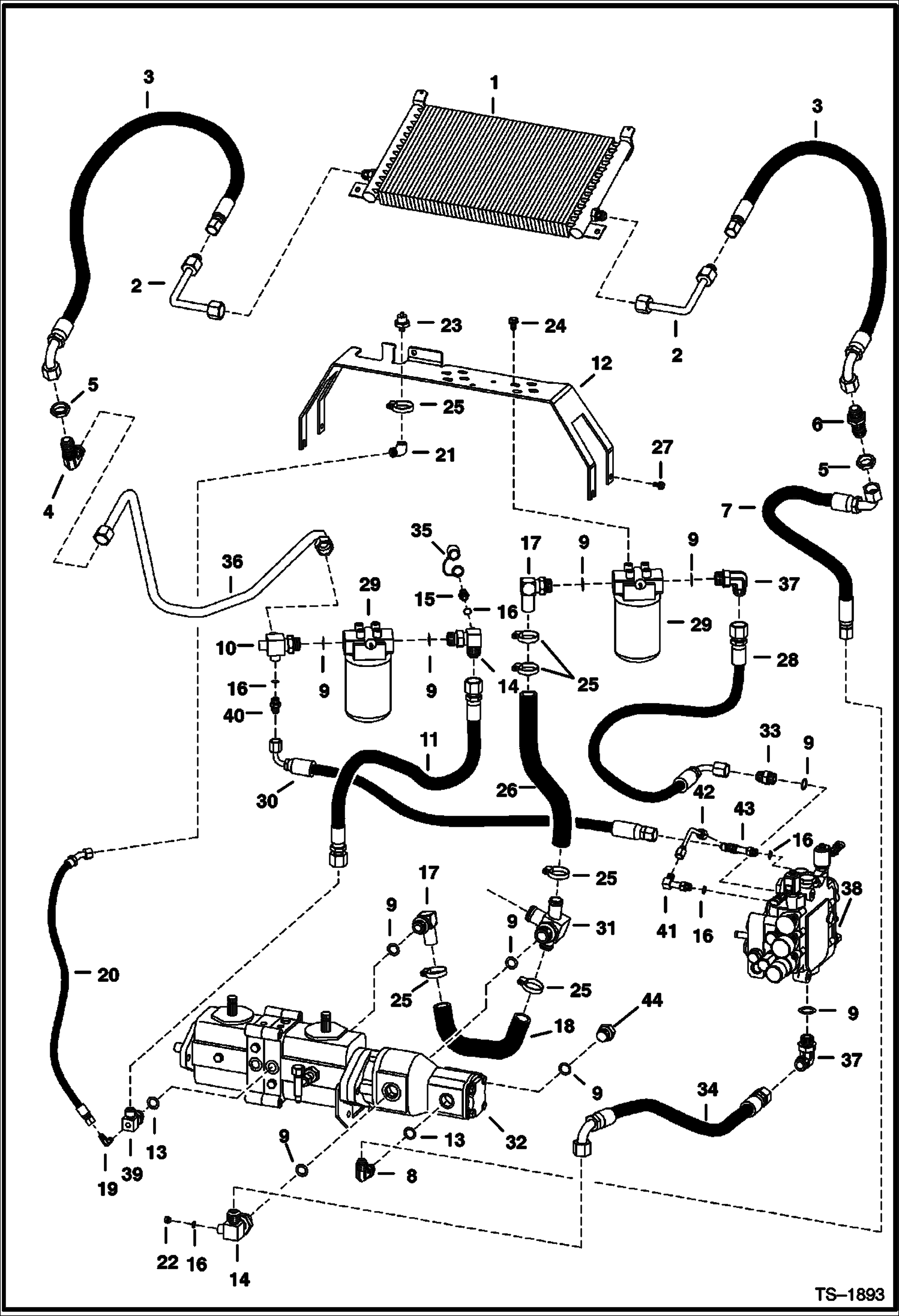

Запчасти Bobcat 800s HYDROSTATIC CIRCUITRY (S/N 5141 22001-22813, & 5142 22001-22027) HYDROSTATIC SYSTEM

1

6667896

EXCHANGER, OIL COOLER oil

2

11K8

ELBOW

3

6531336

HOSE

4

88F8

FITTING Was 88FN00008B - A

4

97K12

O'RING flared end

5

86F8

NUT 5

6

45K8

ADAPTOR tapered boss face - Was 45KN00008B - A

6

97K12

O'RING flared end

7

6714873

HOSE

8

ELBOW NLA - W/Ref. 13 - tapered boss face - Was 17KV00007B - A

8

97K10

O-RING 10 flared end

8

17KB1010

FITTING, HYD ELBOW flat boss face

9

99K12

O RING

10

6706364

ADAPTER W/Ref. 9 - W/O BOSS option

10

6706365

ADAPTER W/Ref. 9 - W/ BOSS option

11

6714807

HOSE

12

6706468

MOUNT

13

99K10

O'RING tapered boss face

14

6715189

TEE W/Ref. 9 - tapered boss face

14

97K12

O'RING flared end

15

6630168

COUPLER W/Ref. 16

16

99K6

O RING tapered boss face

17

6715718

ELBOW W/Ref. 9 - tapered boss face

18

6713978

HOSE

19

83F3

ELBOW 5

20

6714806

HOSE

21

85F3

ELBOW

22

24K5

PLUG - for rear aux. - See Ref. 18 on Ill. TS1308 - tapered boss face - Was 24KN00005B - A

23

SWITCH See Illustration ENGINE ELECTRICAL CIRCUITRY/ B18415 See Illustration ENGINE ELECTRICAL CIRCUITRY/ B18413 - hyd. chg. press.

24

35C610

BOLT 5

25

5HM35

HOSECLAMP constant tension

26

6713979

HOSE

27

84G3712

BOLT 5

28

6672858

HOSE

29

6661247

FILTER See Illustration HYDROSTATIC OIL FILTER/ C2818A - W/ BOSS option

29

6661248

FILTER, OIL HYD 12 #3 media - 152,4 mm (6'') long

29

6661334

FILTER ASSY See Illustration HYDROSTATIC OIL FILTER/ C2818 - W/ internal check - W/ O BOSS option

29

6661248

FILTER, OIL HYD 12 #3 media - 152,4 mm (6'') long

30

6716154

HOSE

31

6713392

CROSS

32

PUMP See Illustration HYDROSTATIC PUMP/ C3379

33

15KB1212

FITTING, HYD CONNECTOR W/Ref. 9 - Was 15KN00008B - A

33

97K12

O'RING flared end

34

6736649

HOSE, HYD ASSY Was 6729160 - A

35

6630367

CAP dust

36

6706502

TUBE

37

ELBOW NLA - W/Ref. 9 - tapered boss face - Was 17KV00008B - A

37

97K12

O'RING flared end

37

17KB1212

FITTING, HYD ELBOW W/Ref. 9 - flat boss face

38

VALVE See Illustration HYDRAULIC CONTROL VALVE/ MS1638 - W/Ref. 41-43

39

6715719

ELBOW W/Ref. 13

40

ADAPTER NLA - W/Ref. 16 - tapered boss face - Was 15KV00005B - A

40

97K6

O RING flared end

40

15KB0606

FITTING, HYD CONNECTOR W/Ref. 16 - flat boss face

41

6812815

FITTING See Illustration HYDRAULIC CONTROL VALVE/ MS1638 - W/Ref. 16 - tapered boss face - Was 6812815 - A

41

97K6

O RING flared end

42

6577690

TUBE See Illustration HYDRAULIC CONTROL VALVE/ MS1638

43

6804360

TEE See Illustration HYDRAULIC CONTROL VALVE/ MS1638 - W/Ref. 16

44

90K8

PLUG W/Ref. 9 - Was 90KV00008B - A
