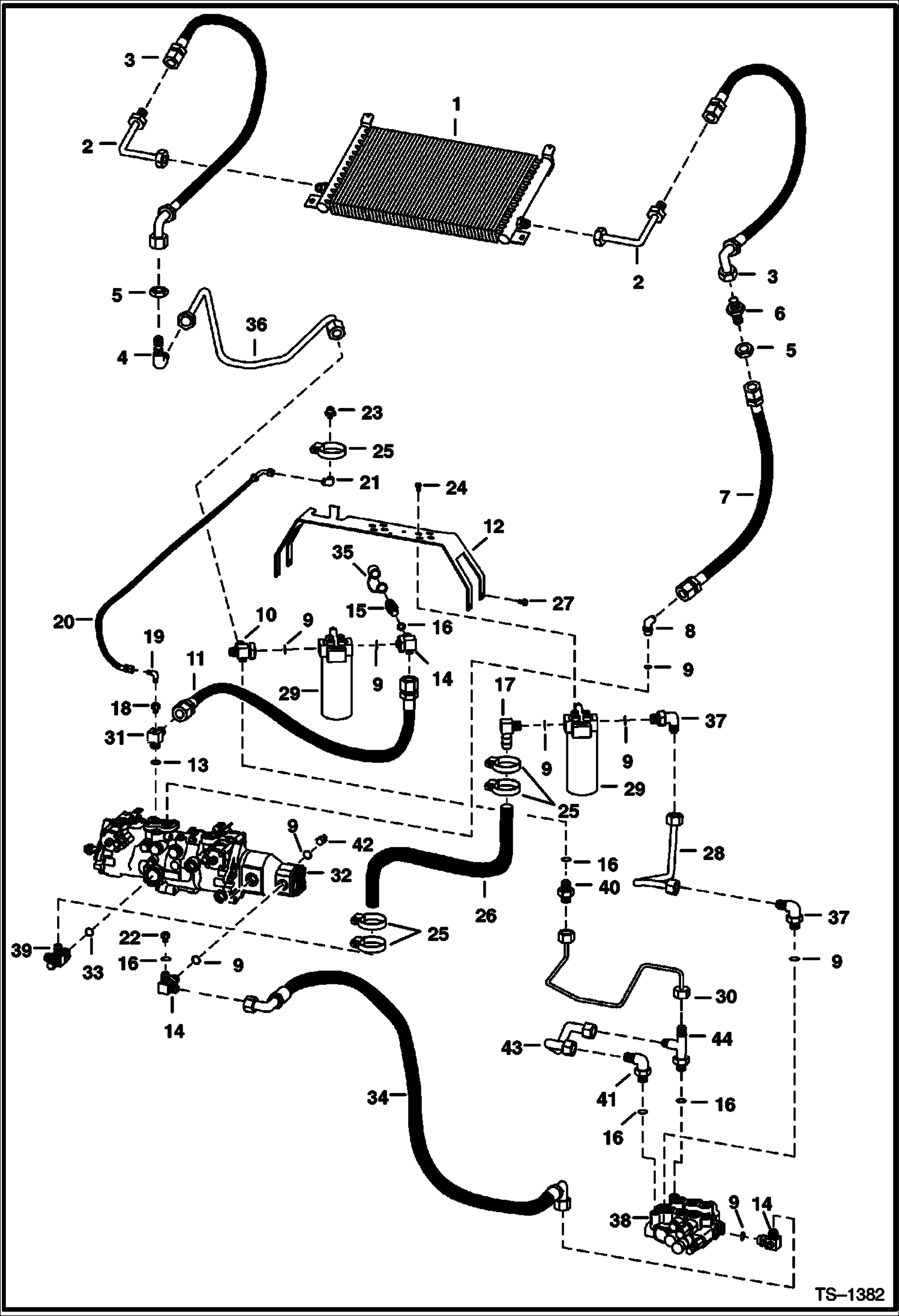

Запчасти Bobcat 800s HYDROSTATIC CIRCUITRY (S/N 5141 11516-14999 & 5142 11108-12999) HYDROSTATIC SYSTEM

1

6667896

EXCHANGER, OIL COOLER oil

2

6703012

TUBE W/ 6711639 hose

2

11K8

ELBOW W/ 6531336 hose

3

6711639

HOSE 26'' (660mm) long - Use W/ tube

3

6531336

HOSE 29''(736mm) long - Use W/ elbow

4

88F8

FITTING

4

88F8

FITTING W/ O-ring - Was 88FN00008B - A

4

97K12

O'RING for 88FN00008B elbow

5

86F8

NUT 5

6

45K8

ADAPTOR flat boss face

6

45K8

ADAPTOR tapered boss face - Was 45KN00008B - A

6

97K12

O'RING flared end

7

6708921

HOSE

8

18K7

FITTING W/Ref. 9

9

79K12

O RING 10 flat boss face

9

99K12

O RING tapered boss face

10

6706364

ADAPTER W/Ref. 9 - W/O BOSS option

10

6706365

ADAPTER W/Ref. 9 - W/ BOSS option

11

6708563

HOSE 25'' (635mm) long

12

6706468

MOUNT

13

79K10

O RING 10 flat boss face

13

99K10

O'RING tapered boss face

14

6714783

ADAPTER W/Ref. 9 - flat boss face - Was 6706238 - A

14

6715189

TEE W/Ref. 9 - tapered boss face

14

97K12

O'RING flared end

15

6630168

COUPLER W/Ref. 16

16

79K6

O RING 10 flat boss face

16

99K6

O RING tapered boss face

17

1321499

FITTING W/Ref. 9 - flat boss face

17

6715718

ELBOW W/Ref. 9 - tapered boss face

18

6563922

SNUBBER W/ filter

18

6563920

FILTER

19

83F3

ELBOW 5

20

6708562

HOSE

21

85F3

ELBOW

22

24K5

PLUG for rear aux. - See Ref. 18 on Ill. TS1308 - flat boss face

22

24K5

PLUG for rear aux. - See Ref. 18 on Ill. TS1308 - tapered boss face - Was 24KN00005B - A

23

SWITCH See Illustration ENGINE ELECTRICAL CIRCUITRY/ B18415 See Illustration ENGINE ELECTRICAL CIRCUITRY/ B18413 - hyd. chg. press.

24

35C610

BOLT 5

25

44H20

CLAMP worm gear - Was 6666864 - A

25

5HM35

HOSECLAMP constant tension

26

6706821

HOSE

27

84G3712

BOLT 5

28

6706504

TUBE

29

6661247

FILTER See Illustration HYDROSTATIC OIL FILTER/ C2818A - W/ BOSS option

29

6661248

FILTER, OIL HYD 12 #3 media - 152,4 mm (6'') long

29

6661334

FILTER ASSY See Illustration HYDROSTATIC OIL FILTER/ C2818 - W/ internal check - W/ O BOSS option

29

6661248

FILTER, OIL HYD 12 #3 media - 152,4 mm (6'') long

30

6706503

TUBE

31

6579651

ELBOW W/Ref. 13 - flat boss face

31

6715719

ELBOW W/Ref. 13 - tapered boss face

31

97K12

O'RING flared end

32

PUMP See Illustration HYDROSTATIC PUMP/ C3379

33

79K20

O RING 10

34

6708507

HOSE

35

6630367

CAP dust

36

6706502

TUBE

37

17K8

FITTING W/Ref. 9 - flat boss face

37

ELBOW NLA - W/Ref. 9 - tapered boss face - Was 17KV00008B - A

37

97K12

O'RING flared end

37

17KB1212

FITTING, HYD ELBOW W/Ref. 9 - flat boss face

38

VALVE See Illustration HYDRAULIC CONTROL VALVE/ TS1380 - W/Ref. 41-43

39

6706487

TEE W/Ref. 33

40

15K5

FITTING W/Ref. 16 - flat boss face

40

ADAPTER NLA - W/Ref. 16 - tapered boss face - Was 15KV00005B - A

40

97K6

O RING flared end

40

15KB0606

FITTING, HYD CONNECTOR W/Ref. 16 - flat boss face

41

6558510

ELBOW See Illustration HYDRAULIC CONTROL VALVE/ TS1380 - W/Ref. 16 - flat boss face

41

6715188

ELBOW See Illustration HYDRAULIC CONTROL VALVE/ TS1380 - W/Ref. 16 - tapered Boss face - Was 6812815 - A

41

97K6

O RING flared end

42

90K8

PLUG W/Ref. 9 - tapered boss face - Was 90KV00008B - A

43

6506505

TUBE See Illustration HYDRAULIC CONTROL VALVE/ TS1380

44

TEE See Illustration HYDRAULIC CONTROL VALVE/ TS1380 - NLA - W/Ref. 16 - tapered boss face - W/ O flared end o-rings - Was6587889 - B

44

6805243

TEE See Illustration HYDRAULIC CONTROL VALVE/ TS1380 - W/Ref. 16 - flat boss face - W/ flared end o-rings

44

97K6

O RING flared end
