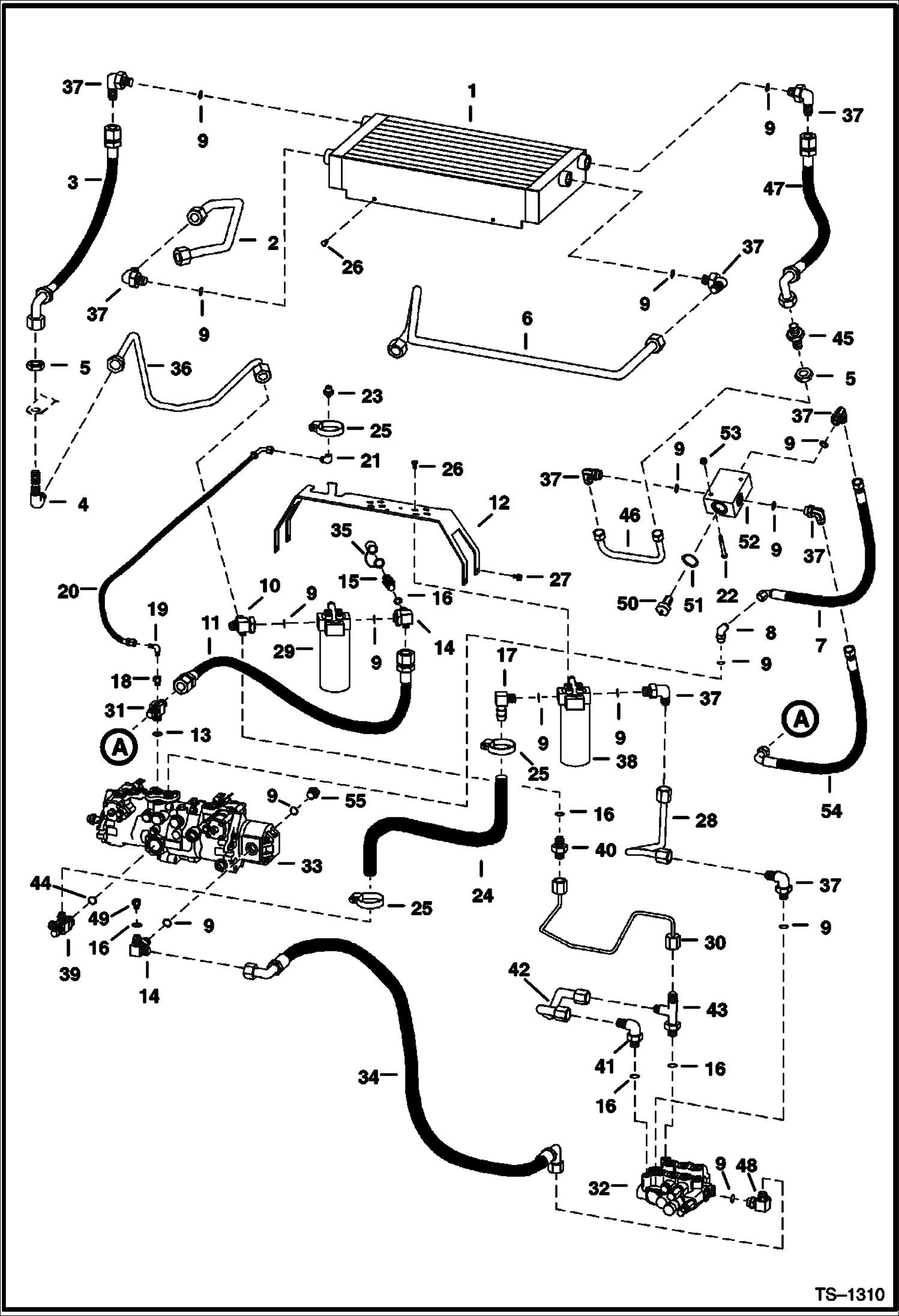

Запчасти Bobcat 800s HYDROSTATIC CIRCUITRY (S/N 5141 11515 & Below & 5142 11107 & Below) HYDROSTATIC SYSTEM

1

COOLER See Illustration COOLING SYSTEM/ E2276 - NLA - Oil - Order 6709450 Cooler & 6709451 Tube - Was 6708609 - A

1

6709450

EXCHANGER, OIL COOLER See Illustration COOLING SYSTEM/ E2276 - Oil

2

6708413

TUBE

3

6708791

HOSE

4

88F8

FITTING

5

86F8

NUT 5

6

6708414

TUBE oil cooler line

6

6709451

TUBE See Illustration COOLING SYSTEM/ E2276

7

6710479

HOSE Was 6708921 - A

8

18K7

FITTING W/Ref. 9 - Was 15K000007B - B

9

79K12

O RING 10 flat boss face

9

99K12

O RING tapered boss face

10

6706364

ADAPTER W/Ref. 9 - W/O BOSS option

10

6706365

ADAPTER W/Ref. 9 - W/ BOSS option

11

6708563

HOSE

12

6706468

MOUNT

13

79K10

O RING 10

14

6714783

ADAPTER W/Ref. 9 - Was 6706238 - A

14

6714783

ADAPTER W/Ref. 9 - Was 6706238 - A

15

6630168

COUPLER W/Ref. 16

16

79K6

O RING 10 flat boss face

16

99K6

O RING tapered boss face

17

1321499

FITTING W/Ref. 9 - Was 6567884 - A

18

6563922

SNUBBER W/Filter

18

6563920

FILTER

19

83F3

ELBOW 5

20

6708562

HOSE

21

85F3

ELBOW

22

17C656

BOLT

23

SWITCH See Illustration ENGINE ELECTRICAL CIRCUITRY/ B18415 See Illustration ENGINE ELECTRICAL CIRCUITRY/ B18413 - Hydraulic charge pressure

24

6706821

HOSE

25

44H20

CLAMP worm gear - Was 6666864 - A

25

5HM35

HOSECLAMP constant tension

26

35C610

BOLT 5

27

84G3712

BOLT 5

28

6706504

TUBE

29

6661247

FILTER See Illustration HYDROSTATIC OIL FILTER/ C2818A W/ BOSS option

29

6661248

FILTER, OIL HYD 12 #3 media - 152,4 mm (6'') long

29

6661334

FILTER ASSY See Illustration HYDROSTATIC OIL FILTER/ C2818 - W/ Internal check - W/O BOSS option

29

6661248

FILTER, OIL HYD 12 #3 media - 152,4 mm (6'') long

30

6706503

TUBE oil line

31

6710153

TEE W/Ref. 13 - Was 6579651 - B

32

VALVE See Illustration HYDRAULIC CONTROL VALVE/ TS1228 See Illustration HYDRAULIC CONTROL VALVE/ TS1380 - W/Ref. 41-43

33

PUMP See Illustration HYDROSTATIC PUMP/ C3379

34

6708507

HOSE

35

6666879

CAP dust

36

6706502

TUBE

37

17K8

FITTING W/Ref. 9

38

6661282

FILTER ASSY. See Illustration HYDROSTATIC OIL FILTER/ C2818A - W/ International check - W/ BOSS option

38

6661248

FILTER, OIL HYD 12 #3 media - 152,4 mm (6'') long

38

6661335

FILTER ASSY See Illustration HYDROSTATIC OIL FILTER/ C2818 - W/ International check - W/ O BOSS option

38

6661248

FILTER, OIL HYD 12 #3 media - 152,4 mm (6'') long

39

6706487

TEE W/Ref. 44

40

15K5

FITTING W/Ref. 16

41

6558510

ELBOW See Illustration HYDRAULIC CONTROL VALVE/ TS1380 See Illustration HYDRAULIC CONTROL VALVE/ TS1228 - W/Ref. 16 - flat boss face

41

6812815

FITTING See Illustration HYDRAULIC CONTROL VALVE/ TS1380 See Illustration HYDRAULIC CONTROL VALVE/ TS1228 - W/Ref. 16 - tapered boss face - Was 6812815 - A

41

97K6

O RING flared end

42

6506505

TUBE See Illustration HYDRAULIC CONTROL VALVE/ TS1228 See Illustration HYDRAULIC CONTROL VALVE/ TS1380

43

TEE See Illustration HYDRAULIC CONTROL VALVE/ TS1380 See Illustration HYDRAULIC CONTROL VALVE/ TS1228 - NLA - W/Ref. 16 - tapered boss face - W/ O flared end o-rings - Was 6587889 - B

43

6805243

TEE W/Ref. 45 - flat boss face - W/flared end O-rings

43

97K6

O RING flared end

44

79K20

O RING 10

45

45K8

ADAPTOR

46

6710152

TUBE

47

6709183

HOSE

48

6714783

ADAPTER W/Ref. 9 - Was 6706238 - A

48

6714783

ADAPTER

48

6715653

TEE Was 6704158 - A

48

6715653

TEE

49

24K5

PLUG for rear aux. - See Ref. 18 on Ill. TS1308

50

6667707

THERMOSTAT W/Ref. 51

51

1K127

O-RING 10 Was 93K127 - A

52

6710132

BLOCK cold weather by-pass

53

83D6

NUT 5

54

6710151

HOSE

55

90K8

PLUG W/Ref. 9 - tapered boss face - Was 90KV00008B - A
