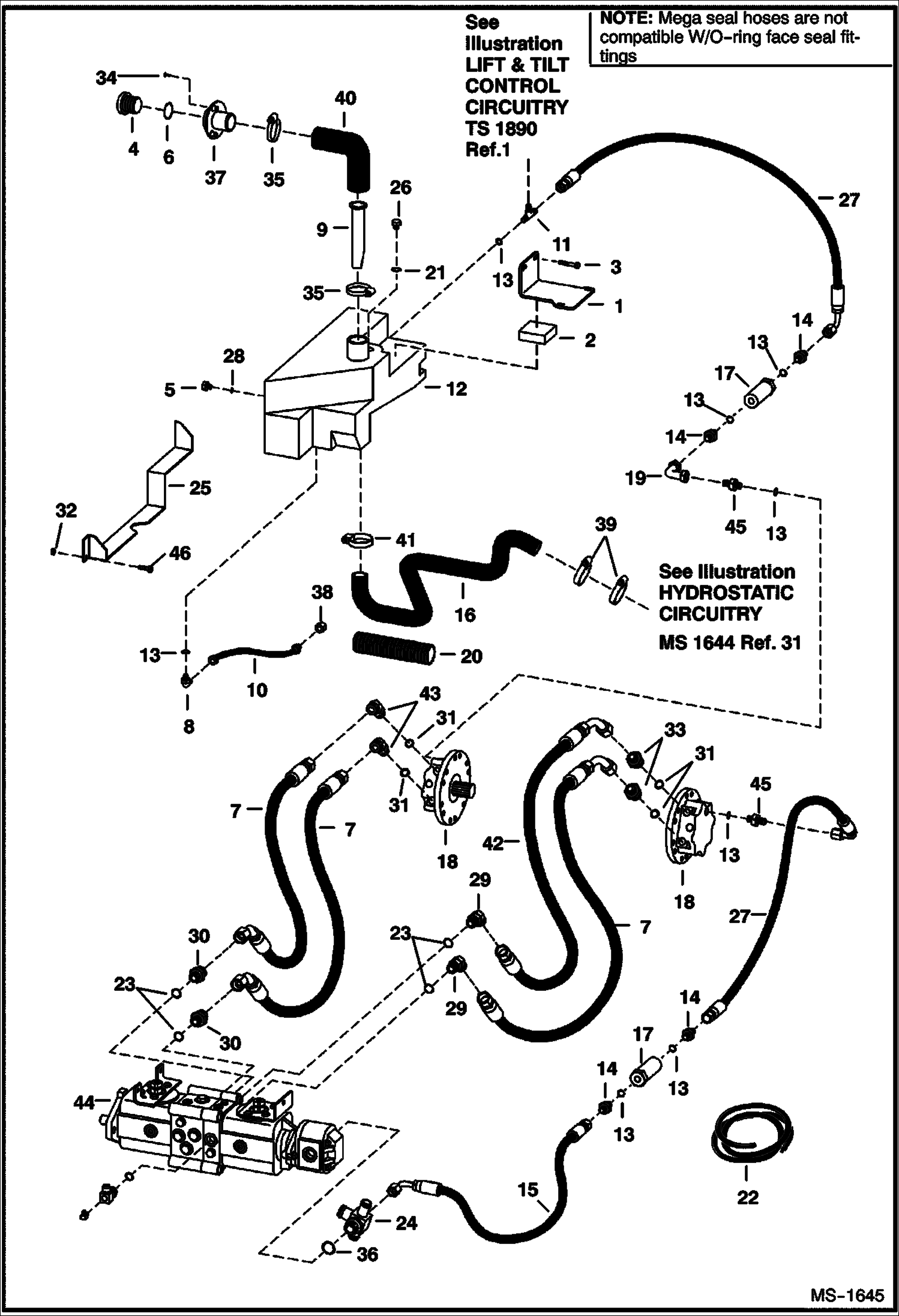

Запчасти Bobcat 800s HYDROSTATIC CIRCUITRY (S/N 5141 22814-23901, 5142 22028-22305) HYDROSTATIC SYSTEM

1

6715079

BRACKET

2

6716449

PAD

3

84G3716

SCREW 5

4

6727475

CAP, OIL HYD breather - Also Order Ref. 6 - Was 6577785 - A

5

6665915

GAUGE sight - W/Ref. 28

6

6700631

GASKET

7

6673034

HOSE mega seal - SEE NOTE

8

18KB0606

FITTING, HYD ELBOW W/Ref. 13 - tapered boss face - Was 18KV00005B - A

8

97K6

O RING flared end

9

7120881

SCREEN, FILLER Was 6569219 - A

10

6708560

HOSE

11

21KB0606

FTG HYD STRAIGHT TEE W/Ref. 13 - tapered boss face - Was 21KV00005B - A

11

97K6

O RING flared end

12

TANK See BTI315 NLA - Order 6725423 tank & 6727175 tee - Was 6715818 - A

13

99K6

O RING tapered boss face

13

79K8

O RING 10 flat boss face

14

ADAPTER NLA - W/Ref. 13 - tapered boss face - Was 15KV00005B - A

14

97K6

O RING flared end

14

15KB0606

FITTING, HYD CONNECTOR W/Ref. 13 - flat boss face

15

6717214

HOSE

16

6713977

HOSE

17

6661022

FILTER, OIL HYD IN-LINE See Illustration HYDROSTATIC OIL FILTER/ B13527 - 90 micron

18

MOTOR See Illustration HYDROSTATIC MOTOR/ B18514

19

6712817

TUBE

20

SHIELD NLA - 10'' (254 mm) long - Order Ref. 22

21

79K16

O RING 10

22

6705749

SHIELD bulk - sold per foot

23

79K12

O RING 10

24

6716468

TEE W/Ref. 36

24

97K16

O-RING flared end

25

6707921

BRACKET

26

47K10

PLUG W/Ref. 21 - for flushing hole in tank

27

6578327

HOSE

28

99K6

O RING flat boss face

29

18KB1612

FITTING, HYD ELBOW W/Ref. 23 - Was 6715877 - A

30

ADAPTER NLA - W/Ref. 23 - Was 6715878

30

15KB1612

FITTING, HYD CONNECTOR W/Ref. 23

31

79K16

O RING 10 1.31'' ID

31

79K12

O RING 10 1.06'' ID

32

61D5

NUT

33

6628592

ADAPTER 1.31'' thread - W/Ref. 31 (79K16 O-ring)

33

15KB1612

FITTING, HYD CONNECTOR 1.06'' thread - W/Ref. 31 (79K12 O-ring)

34

6706517

SCREW

35

42HL250

CLAMP Was 6513595 - B

36

99K16

O-RING tapered boss face

37

INLET See BTI412 - NLA - Was 6706354 - A

38

36K5

CAP

39

5HM42

HOSECLAMP constant tension

40

6706445

HOSE

41

6672281

CLAMP constant tension

42

6672860

HOSE mega seal - SEE NOTE

43

6628593

ELBOW 1.31'' thread - W/Ref. 31 (79K16 O-ring)

43

18KB1612

FITTING, HYD ELBOW 1.06'' thread - W/Ref. 31 (79K12 O-ring)

44

PUMP See Illustration HYDROSTATIC PUMP/ C3379

45

CONNECTOR NLA - W/Ref. 13 - tapered boss face - Was 6715649 - A

45

97K6

O RING flared end

45

15KB0608

FITTING, HYD CONNECTOR W/Ref. 13 - flat boss face

46

35C512

BOLT
