Запчасти Bobcat 800s HYDRAULIC CONTROL VALVE (Service Valve) (5141 22001-39999, 5142 22001-39999) HYDRAULIC SYSTEM

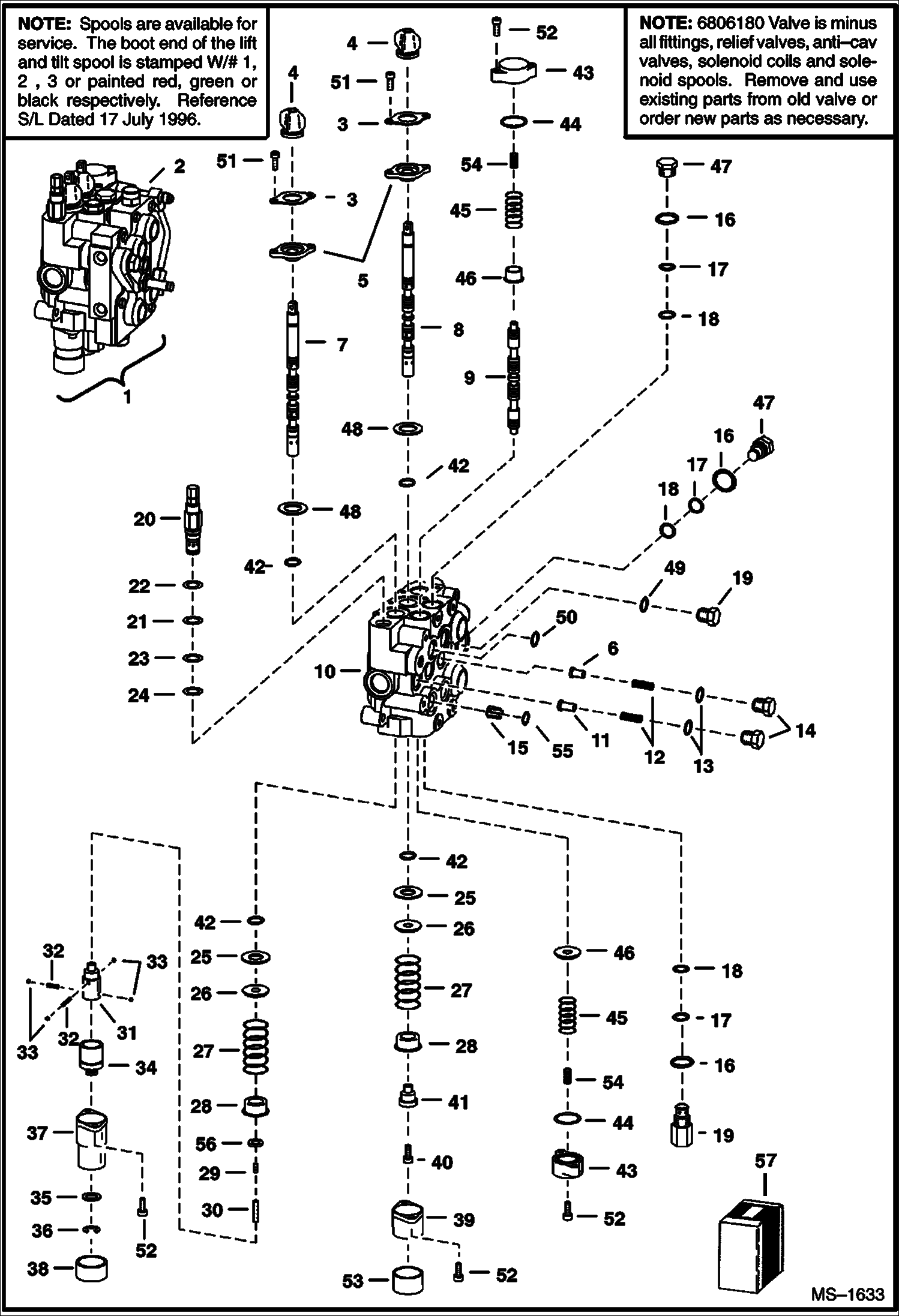

Схема запчастей Bobcat 800s - HYDRAULIC CONTROL VALVE (Service Valve) (5141 22001-39999, 5142 22001-39999) HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

VALVE See Illustration HYDRAULIC CONTROL VALVE/ NA6732 See BTI323 - NLA - W/fittings - Ref. 2-56 - Was 6806180 - A

2

6628571

VALVE ASSY See Illustration BICS CONTROL VALVE/ TS1365

3

6589564

RETAINER

4

6587763

BOOT

5

6589565

BUSHING seal

6

6596569

SEAT load check

7

7222716

SPOOL, LIFT lift - #1 or red - SEE NOTE - Was 6674805 - A

7

7222717

SPOOL, LIFT lift - #2 or green - SEE NOTE - Was 6674806 - A

7

7222718

SPOOL, LIFT lift - #3 or black - SEE NOTE - Was 6674807 - A

8

6674811

SPOOL tilt - # 1 or Red - SEE NOTE

8

6674812

SPOOL tilt - # 2 or Green - SEE NOTE

8

6674813

SPOOL tilt - # 3 or Black - SEE NOTE

9

6588074

SPOOL auxiliary - SEE NOTE

10

BODY NSS

11

6592115

SEAT load check

12

6592117

SPRING, LOAD CHECK

13

79K8

O RING 10

14

6592116

NUT load check

15

6800124

ORIFICE

16

79K10

O RING 10

17

80K14

BACK-UP WASHER Was 73K000014B - B

18

58K014

O-RING 10 back-up washer required

18

6677106

O-RING back-up washer not required

19

90K8

PLUG W/Ref. 49 - socket head - Was 90KV00008B - A

20

VALVE NLA - main relief - W/Ref. 21-24 - pressure preset at factory - Was 6676198 - A

20

7219324

VALVE, RELIEF W/ O-rings - pressure to be set in field - Was 6686360 - A

21

58K017

O-RING 10

22

6665569

WASHER back-up

23

25K20016

O RING 10

24

6665570

RING glide

25

6595663

BUSHING

26

7211397

WASHER, SPRING Was 6587523 - A

27

6587580

SPRING

28

6592100

COLLAR

29

6596807

PLUG plastic - 0.46'' long

30

6586918

SCREW

31

6587575

ADAPTER

32

6592107

SPRING

33

6592105

BALL

34

6531270

SLEEVE, DETENT

35

6592098

WASHER

36

799119

RING

37

6589226

COVER, END 0.63'' flange

38

6660644

CAP

39

7101345

BONNET, DETENT HYD VALVE Was 6587633 - A

40

30G416

BOLT

41

6592109

ADAPTER

42

6683274

SEAL, SPOOL 10 spool - Was 6665846 - A

43

6588781

END CAP .87'' thick

44

58K124

O RING 10

45

6596332

SPRING

46

7108780

SLEEVE Was 6595951 - A

47

6592720

PLUG W/Ref. 16-18

48

1K127

O-RING 10 Was 93K127 - A

49

95K12

O-RING

50

55K204

O RING 10

51

29G412

BOLT

52

29G416

BOLT 1'' (25,4mm) long

53

6662848

CAP

54

6595131

SPRING .72'' OD

55

55K212

O RING 10

56

54K20002

O'RING 10

57

6816250

KIT, SEAL one spool - Ref. 4, 29, 42, 48, 51, 52 & 56 - Was 6803605 - A

57

6816253

KIT, SEAL complete - Ref. 4, 13, 16-18, 21-24, 42, 44, 48, 50, 51, 52 & 55 - also Order 6816250 seal kit - Was 6809448 - A

57

6632279

KIT, SEAL main relief - Ref. 21-24

57

6809425

SEAL KIT upper deck - Ref. 13 & 16-18 - Was 6586461 - A
