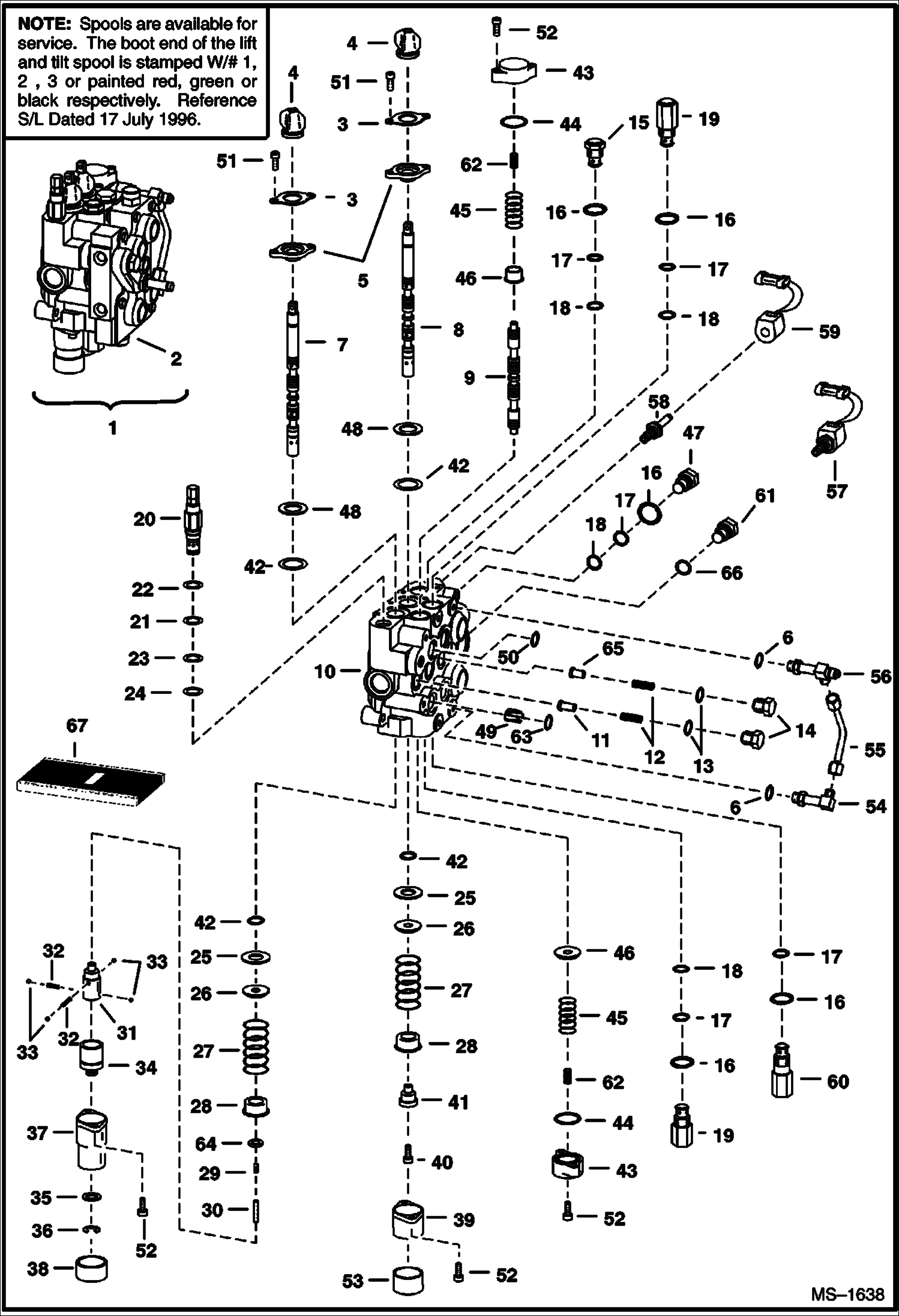

Запчасти Bobcat 800s HYDRAULIC CONTROL VALVE (W/ BICS Control Valve) (5141 22001-39999, 5142 22001-39999) HYDRAULIC SYSTEM

1

VALVE See Illustration HYDRAULIC CONTROL VALVE/ MS1633 - NLA - W/ Fittings Ref. 2-66 - Order 6806180 - Was 6803233 - A

2

6628571

VALVE ASSY See Illustration BICS CONTROL VALVE/ TS1365

3

6589564

RETAINER

4

6587763

BOOT

5

6589565

BUSHING seal

6

99K6

O RING

7

6666588

SPOOL lift - # 1 or Red - SEE NOTE

7

6666589

SPOOL lift - # 2 or Green-SEE NOTE

7

6666590

SPOOL lift - # 3 or Black - SEE NOTE

8

6666591

SPOOL tilt - # 1 or Red - SEE NOTE

8

6666592

SPOOL tilt - # 2 or Green - SEE NOTE

8

6666593

SPOOL tilt - # 3 or Black - SEE NOTE

9

6588074

SPOOL auxiliary - SEE NOTE

10

BODY NSS

11

6592115

SEAT load check

12

6592117

SPRING, LOAD CHECK

13

79K8

O RING 10

14

6592116

NUT load check

15

6667549

VALVE anti-cavity check - W/Ref. 16-18

16

79K10

O RING 10

17

80K14

BACK-UP WASHER Was 73K000014B - B

18

58K014

O-RING 10 back-up washer required

18

6677106

O-RING back-up washer not required

19

6599161

RELIEF VALVE port relief - W/Ref. 16-18

20

VALVE NLA - main relief - W/Ref. 21 -24 - pressure preset at factory - Was 6676198 - A

20

7219324

VALVE, RELIEF W/ O-rings - pressure to be set in field - Was 6686360 - A

21

58K017

O-RING 10

22

6665569

WASHER back-up

23

25K20016

O RING 10

24

6665570

RING glide

25

6595663

BUSHING

26

7211397

WASHER, SPRING Was 6587523 - A

27

6587580

SPRING

28

6592100

COLLAR

29

6596807

PLUG plastic - 0.46'' long

30

6586918

SCREW

31

6587575

ADAPTER

32

6592107

SPRING

33

6592105

BALL

34

6531270

SLEEVE, DETENT

35

6592098

WASHER

36

799119

RING

37

6589226

COVER, END 0.63'' flange

38

6660644

CAP

39

7101345

BONNET, DETENT HYD VALVE Was 6587633 - A

40

30G416

BOLT

41

6592109

ADAPTER

42

6683274

SEAL, SPOOL 10 spool - Was 6665846 - A

43

6588781

END CAP .87'' thick

44

58K124

O RING 10

45

6596332

SPRING

46

7108780

SLEEVE Was 6595951 - A

47

6592720

PLUG W/Ref. 16-18

48

1K127

O-RING 10 Was 93K127 - A

49

6800124

ORIFICE 0.185

50

55K204

O RING 10

51

29G412

BOLT

52

29G416

BOLT 1'' (25,4mm) long

53

6662848

CAP

54

ELBOW NLA - W/Ref. 6 - tapered boss face - Was 6715188 - B

54

ELBOW NLA - W/Ref. 6 - flat boss face - Was 6805242 - A

54

97K6

O RING flared end

54

6812815

FITTING

55

6577690

TUBE

56

TEE NLA - W/Ref. 6 - tapered boss face - Was 6804360 - B

56

6805243

TEE W/Ref. 6 - flat boss face

56

97K6

O RING flared end

57

6677201

SOLENOID W/Ref. 58 & 59 - Was 6665084 - B

58

6676249

STEM, VALVE SOLENOID Was 6666616 - B

58

6586459

SEAL KIT

59

6717706

COIL, 10 VOLT W/ nut - 10 volt - pwm - Was 6666547 - A

59

6676566

NUT

60

6678552

VALVE port relief and anti cav. - W/Ref. 16 - 3500 PSI - Use in tilt cylinder base end port - Was 6671632 - A

61

90K8

PLUG W/Ref. 66 - Was 90KV00008B - A

62

6595131

SPRING .72'' OD

63

55K212

O RING 10

64

54K20002

O'RING 10

65

6596569

SEAT load check

66

95K12

O-RING

67

6816250

KIT, SEAL one spool - Ref. 4, 29, 42, 48, 51, 52 & 64 - Was 6803605 - A

67

6816253

KIT, SEAL complete - Ref. 4, 13, 16-18, 21-24, 42, 44, 48, 50-52 & 63 - also Order 6816250 seal kit - Was 6809448 - A

67

6632279

KIT, SEAL main relief - Ref. 21-24

67

6809425

SEAL KIT upper deck - Ref. 13 & 16-18 - Was 6586461 - A
