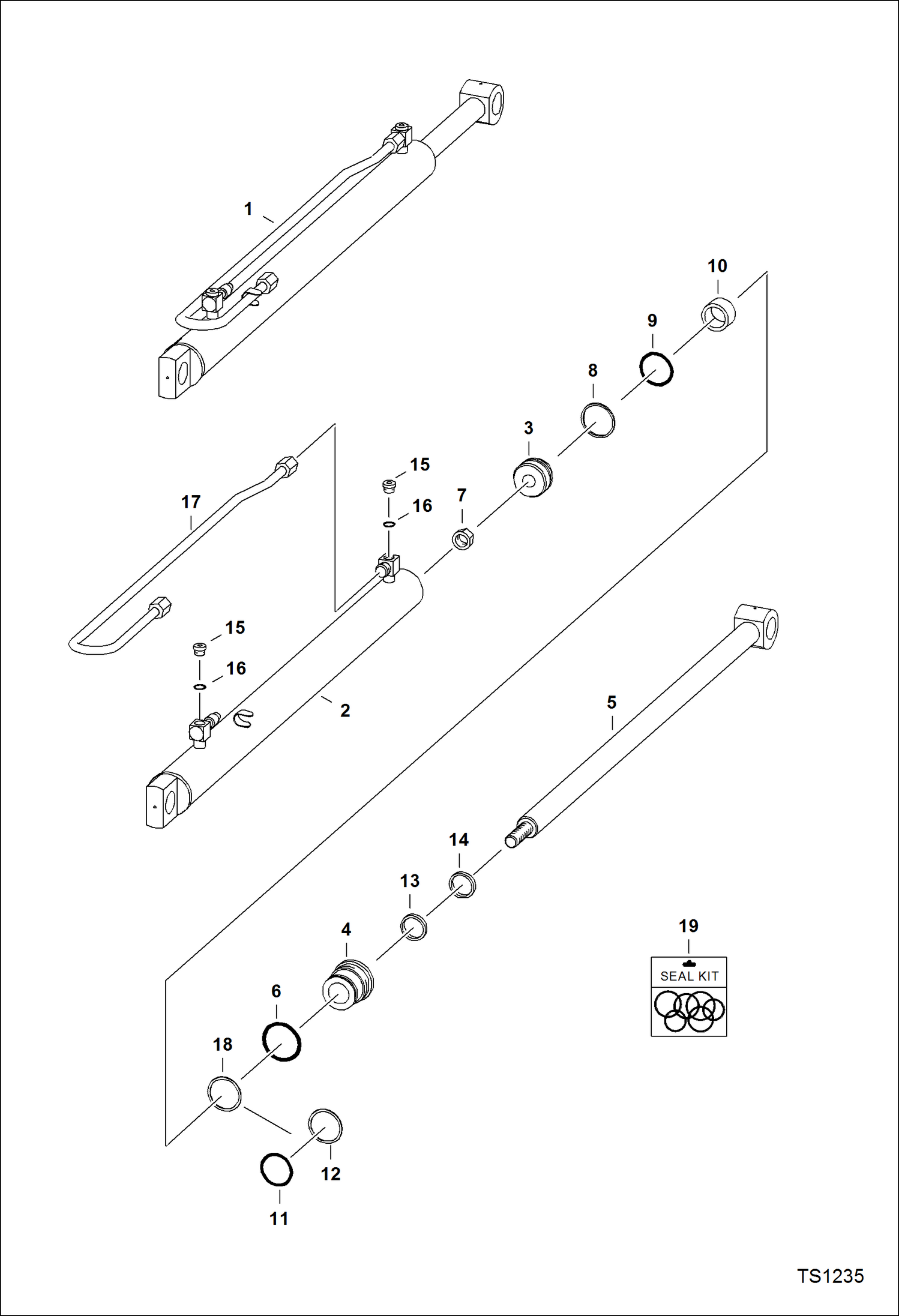

Запчасти Bobcat 800s LIFT CYLINDER HYDRAULIC SYSTEM

1

6811996

CYLINDER, LIFT Ref. 2-6 - Was 6589198 - A

2

6589338

CASE

3

6678934

PISTON W/Ref. 8 & 9 - W/ non-replaceable wear sleeves - Was 6666286 - A

4

6586718

HEAD, CYL TILT Was 6539236 - B,D

5

6589339

ROD

6

25K40224

O RING 10 Was 54K40224 - B

7

6810539

NUT Was 6804592 - A

8

6516229

PISTON SEAL

9

25K30210

O-RING Was 54K30210 - B

10

6589199

SPACER

11

25K60212

O RING 10 Was 54K60212 - B

12

80K332

WASHER back-up

13

6667326

SEAL rod - Was 6538141 - B

14

6690707

WIPER, ROD CYL Was 6665086 - A

15

90K5

PLUG W/Ref. 16 - tapered boss face - allen socket head - Was 47K000005B - B

15

6812171

PLUG W/Ref. 16 - flat boss face - hex head

16

79K6

O RING 10 tapered boss face

16

75K6

O-RING flat boss face

17

6589271

TUBE

18

7008356

SEAL, QUAD

19

6804609

SEAL KIT Ref. 7 - 9, 13, 14, & 18 - Was 6803267 - A
