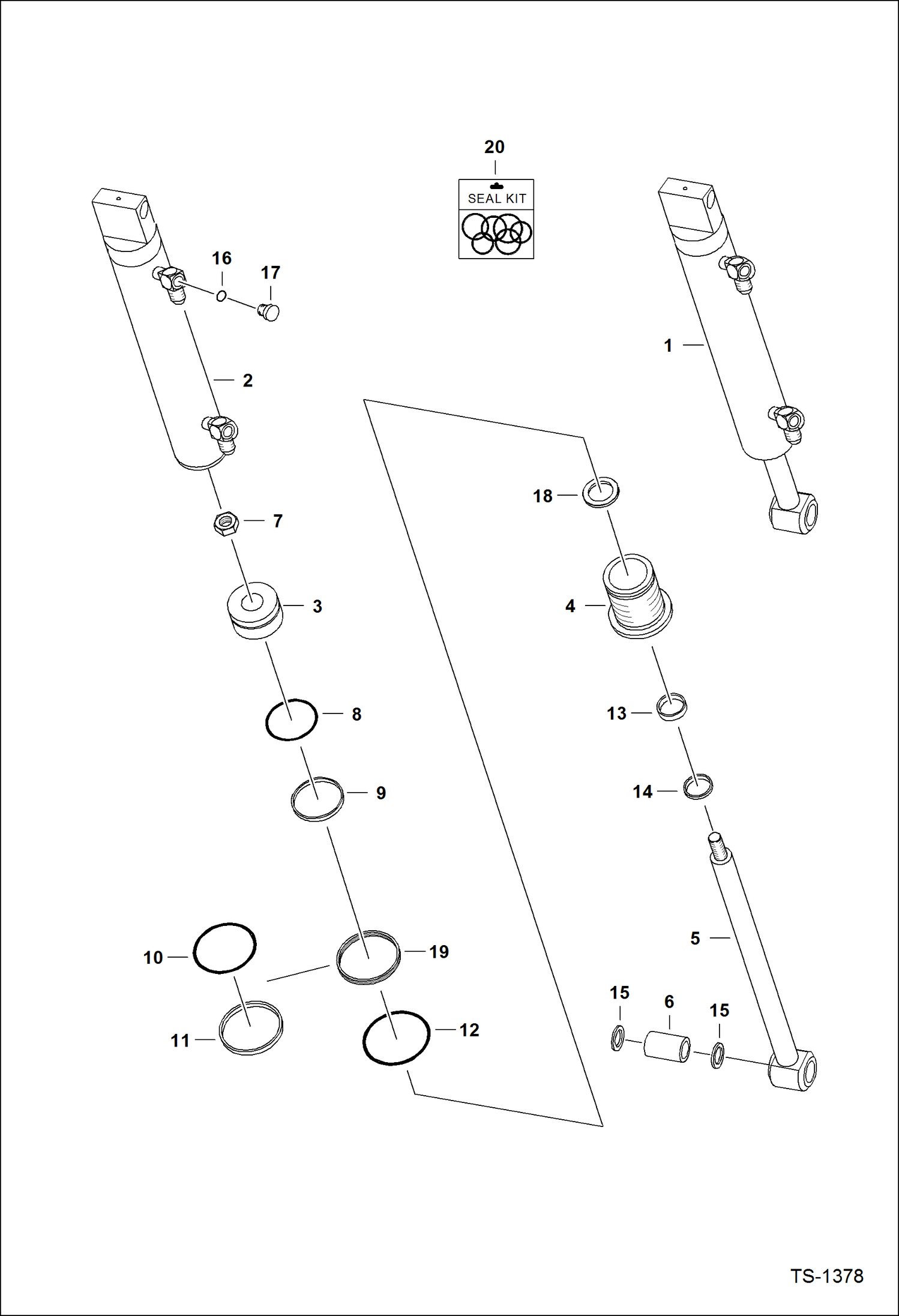

Запчасти Bobcat 800s TILT CYLINDER ( L.H. ) (S/N 5141 11574-15042 & 5142 11214-11338) HYDRAULIC SYSTEM

1

6597376

CYLINDER See BTI312 - tilt - Ref. 2-17

2

6627884

CASE 2.5'' (63,5mm) ID

3

6597385

PISTON

4

6628031

HEAD

5

6597389

ROD Also Order Ref. 6 & 21 - 1.25 in. (31,8 mm) OD

6

6802752

BUSHING Was 6706275 - A

7

92D14

NUT

8

25K30202

O RING 10

9

1522534

SEAL

10

25K40208

O RING 10

11

73K228

BACK-UP RING back-up - Was 80K000228B - A

12

82K230

O-RING Was 58K000230B - B

13

6665184

SEAL

14

6665208

SEAL wiper

15

6654117

SEAL, OIL 51 mm (2'') OD

15

225855

SEAL, OIL 10 38 mm (1.5'') OD

16

90K5

PLUG W/Ref. 17 - Was 47K-5B - B

17

79K6

O RING 10

18

6712713

SPACER service part only - .25'' (6,4mm) thick

19

7008778

SEAL, QUAD

20

7137866

KIT, SEAL Ref. 7-9, 12-14 & 19 - Was 6595177 - A
