Запчасти Bobcat 800s TILT CYLINDER ( R.H. ) (S/N 5141 27006-39999, 5142 22393-39999) HYDRAULIC SYSTEM

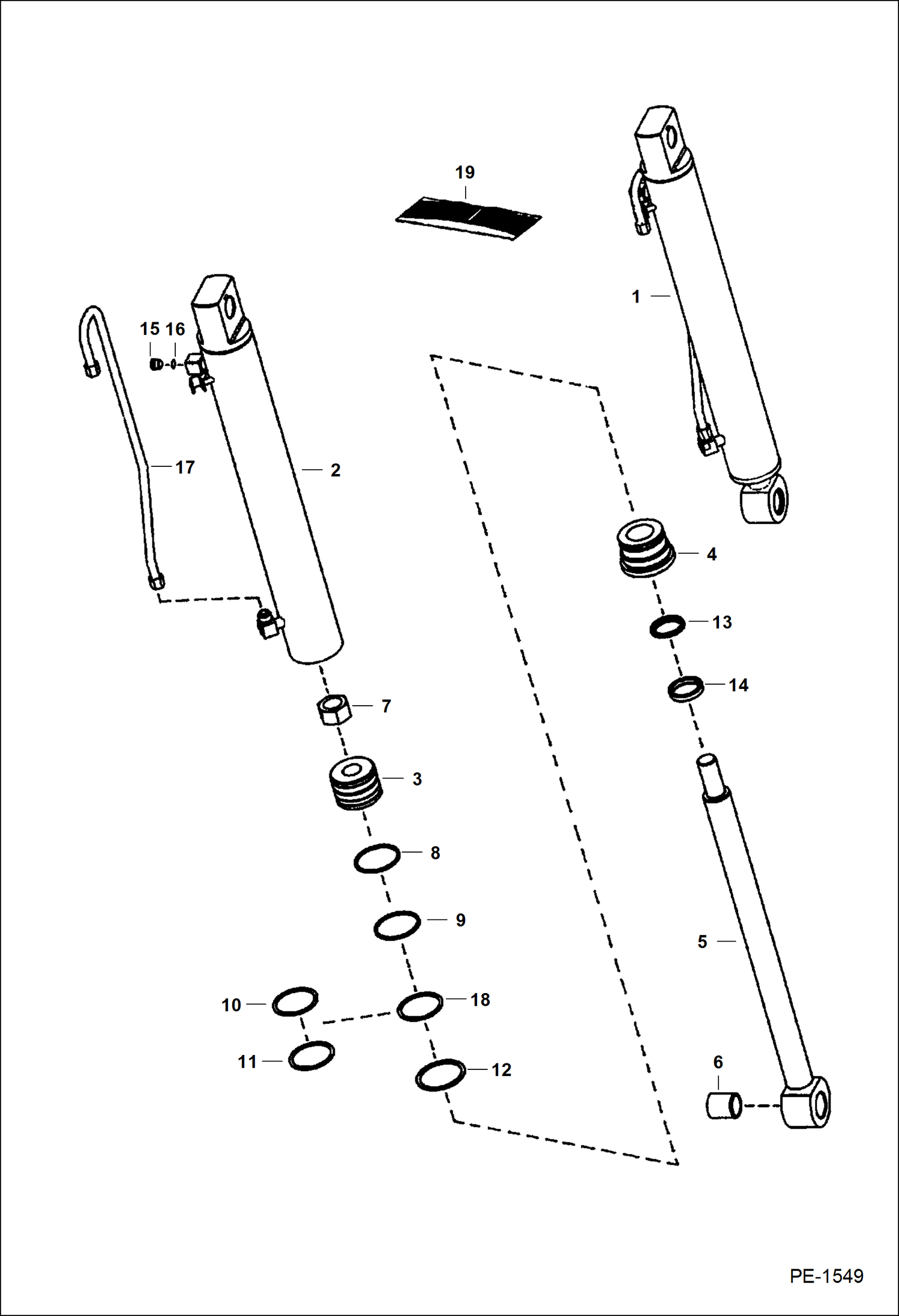

Схема запчастей Bobcat 800s - TILT CYLINDER ( R.H. ) (S/N 5141 27006-39999, 5142 22393-39999) HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

6811612

CYLINDER tilt - Ref. 2-16 - Was 6805512 - A

2

6811613

CASE 2.75'' (69,9mm) ID - Was 6805515 - A

3

6800684

PISTON

4

6800686

HEAD, CYL TILT

5

6804391

ROD Also Order Ref. 6 - 1.625 in.(41,3mm) OD

6

6802752

BUSHING

7

6810539

NUT Was 6804592 - A

8

25K30210

O-RING Was 54K30210 - B

9

6516229

PISTON SEAL

10

25K60212

O RING 10 Was 54K60212 - B

11

80K332

WASHER back-up

12

25K40224

O RING 10 Was 54K40224 - B

13

6687000

WIPER ROD wiper - Was 6669268 - A

14

6669267

SEAL wiper

15

PLUG NLA - W/Ref. 16 - tapered boss face - allen socket head - Was 90KV-5 - A

15

90K5

PLUG flat boss face - allen socket head

15

6812171

PLUG flat boss face - hex head

16

75K6

O-RING for flat boss face - Was 79K000006B - B

16

95K6

O'RING for tapered boss face

17

6805842

TUBELINE Use W/6804392 tilt cylinder

17

6811573

TUBELINE Use W/6811612 cylinder - Was 6809085 - A

18

7008356

SEAL, QUAD

19

6804616

KIT, SEAL Ref. 7-9, 12-14, & 18

Выбрано товаров: 23
