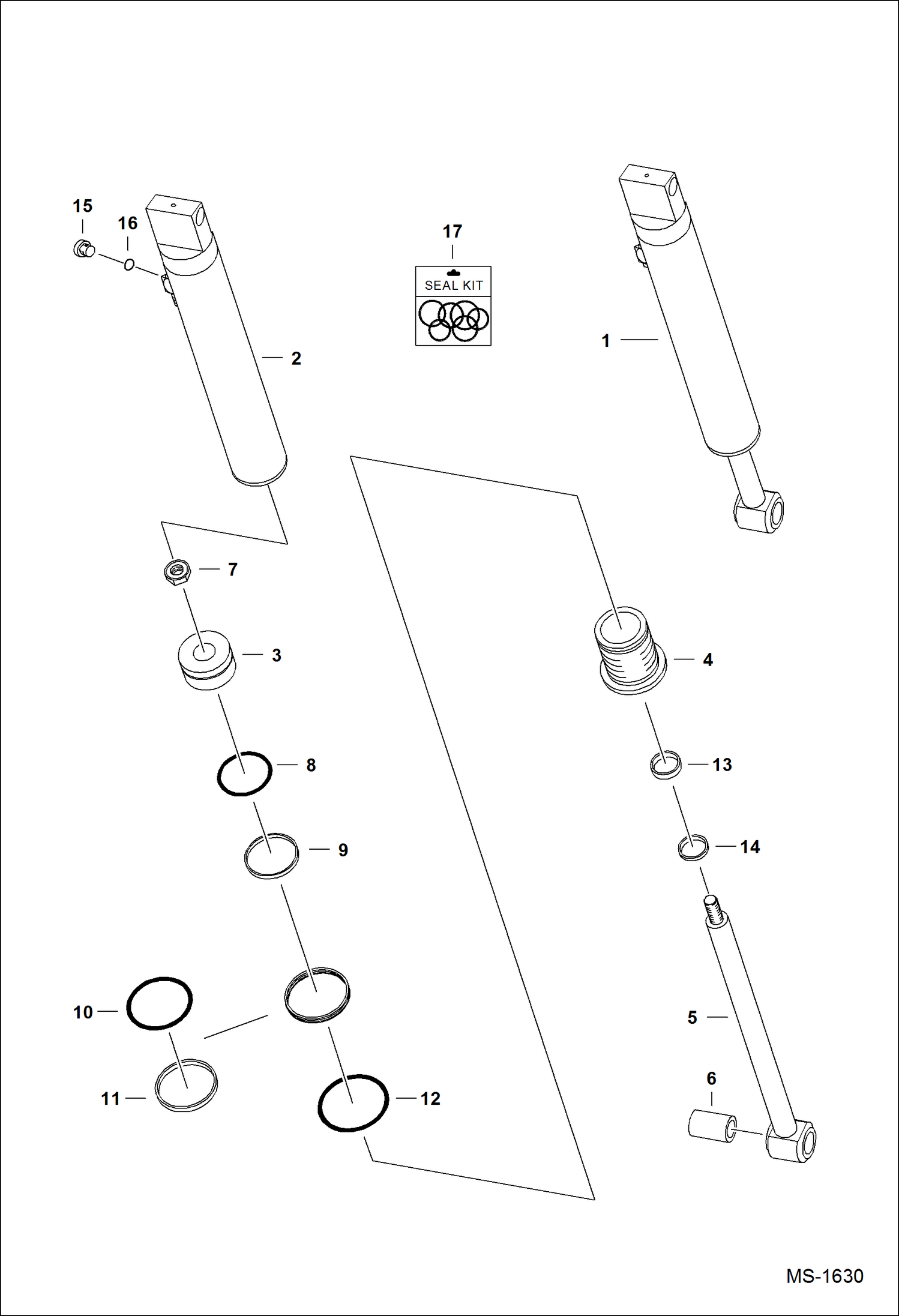

Запчасти Bobcat 800s TILT CYLINDER ( R.H. ) (S/N 5141 15043-27005 & 5142 13000-22392) HYDRAULIC SYSTEM

1

6804392

CYLINDER tilt - Ref. 2-16 - Was 6800682 - A

2

6800685

CASE 2.75'' (69,9mm) ID

3

6800684

PISTON

4

6800686

HEAD, CYL TILT

5

6804391

ROD Also Order Ref. 6 - 1.625 in. (41,3mm) OD - Was 6800700 - A

6

6802752

BUSHING

7

6810539

NUT Was 6804592 - A

8

25K30210

O-RING Was 54K30210 - B

9

6516229

PISTON SEAL

10

25K60212

O RING 10 Was 54K60212 - B

11

80K332

WASHER back-up

12

25K40224

O RING 10 Was 54K40224 - B

13

6687000

WIPER ROD wiper - Was 6669268 - A

14

6669267

SEAL wiper

15

90K5

PLUG W/Ref. 16 - flat boss face - hex head

15

90KV5

PLUG W/Ref. 16 - tapered boss face - socket head

16

79K6

O RING 10 for flat boss face

16

95K6

O'RING for tapered boss face

17

7008356

SEAL, QUAD

18

6804616

KIT, SEAL Ref. 7-9, 12-14, & 17 - Was 6803278 - A
