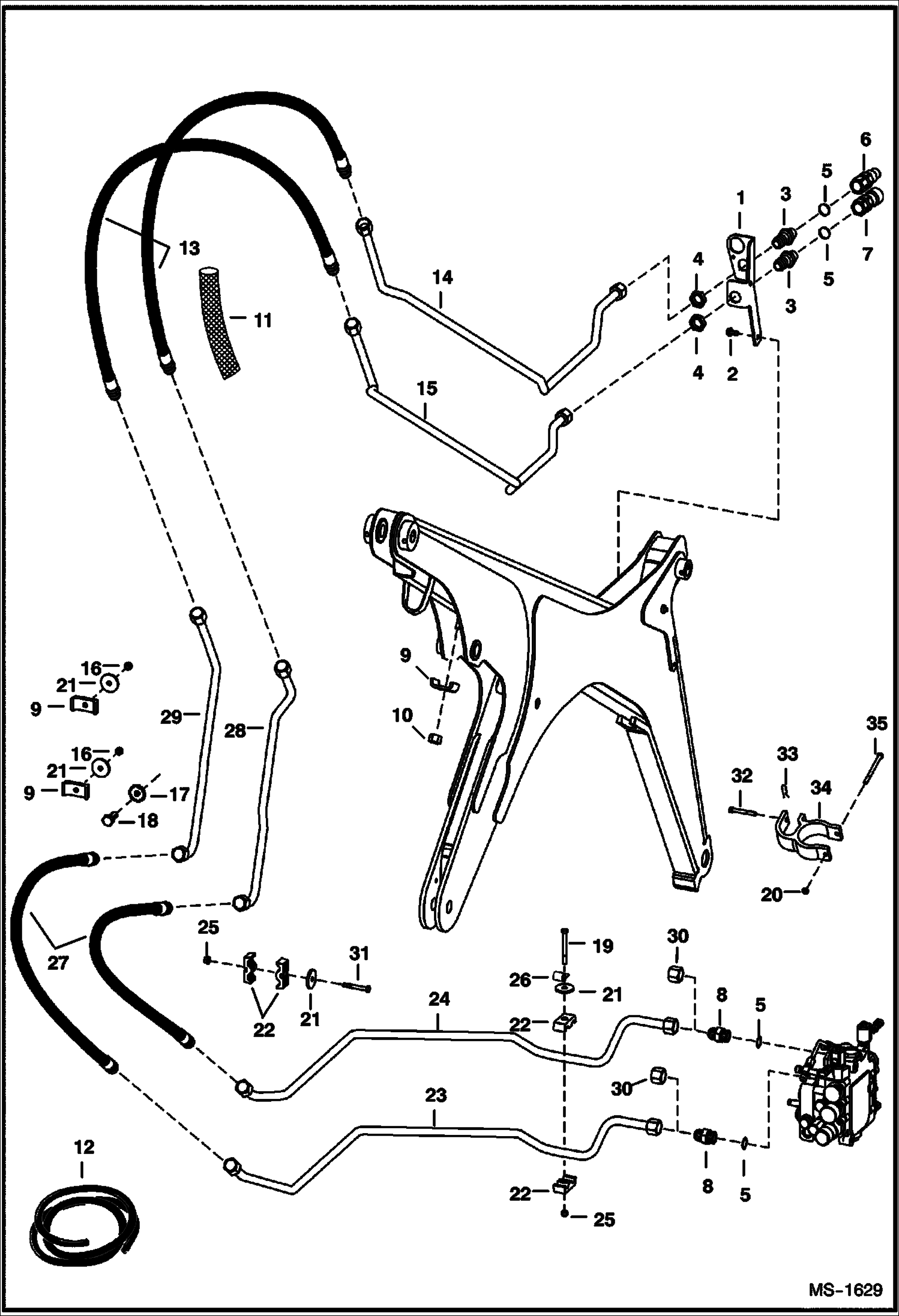

Запчасти Bobcat 800s AUXILIARY HYDRAULICS (S/N 5141 22001-39999, 5142 22001-39999) HYDRAULIC SYSTEM

1

6716808

BRACKET Was 6712723 - A

2

84G3712

BOLT 5

3

CONNECTOR NLA - W/Ref. 5 - tapered boss face - Was 6716090 - A

3

6812823

ADAPTER flat boss face - Was 45K000008B - B

3

97K12

O'RING flared end

4

86F8

NUT 5

5

99K12

O RING tapered boss face

5

79K12

O RING 10 flat boss face

6

6674688

COUPLER, FF MALE straight - Was 6667808 - A

6

6679841

SEAL Was 6672026 - A

7

6672960

COUPLER, FF FEMALE straight

8

15KB1212

FITTING, HYD CONNECTOR W/Ref. 5 - Was 15KN00008B - A

8

97K12

O'RING flared end

9

6502203

CLAMP

10

95D6

NUT

11

SHIELD NLA - 70.75'' (1797mm) long - Order Ref. 12

12

6651436

HOSE COVER bulk - 2.38'' (60,5mm) ID - Sold Per Foot

13

6710658

HOSE

14

6712717

TUBE

15

6712718

TUBE

16

95D6

NUT Was 97D000005B - B

17

25E17

WASHER 5

18

17C612

BOLT 5

19

17C552

BOLT

20

95D5

NUT Was 89D000005B - B

21

872229

WASHER

22

6592506

CLAMP

23

TUBELINE NLA - Order 6717198 & 6717297 tubeline - See S.L. dated 10 Mar 99 - Was 6715074 - A

23

6717298

TUBELINE

24

TUBELINE NLA - Order 6717297 & 6717198 tubeline - See S.L. dated 10 Mar 99 - Was 6715073 - A

24

6717297

TUBELINE

25

85D5

NUT 5

26

30H31

CLAMP 10

27

6670121

HOSE

28

6714776

TUBE

29

6714777

TUBE

30

36K8

CAP

31

35C540

BOLT

32

6541981

PIN clevis

33

1306637

CLIP

34

6713937

CLAMP Was 6709151 - A

35

17C560

BOLT
