Запчасти Bobcat 800s AUXILIARY HYDRAULICS (S/N 5141 21999, 5142 21999 & Below) HYDRAULIC SYSTEM

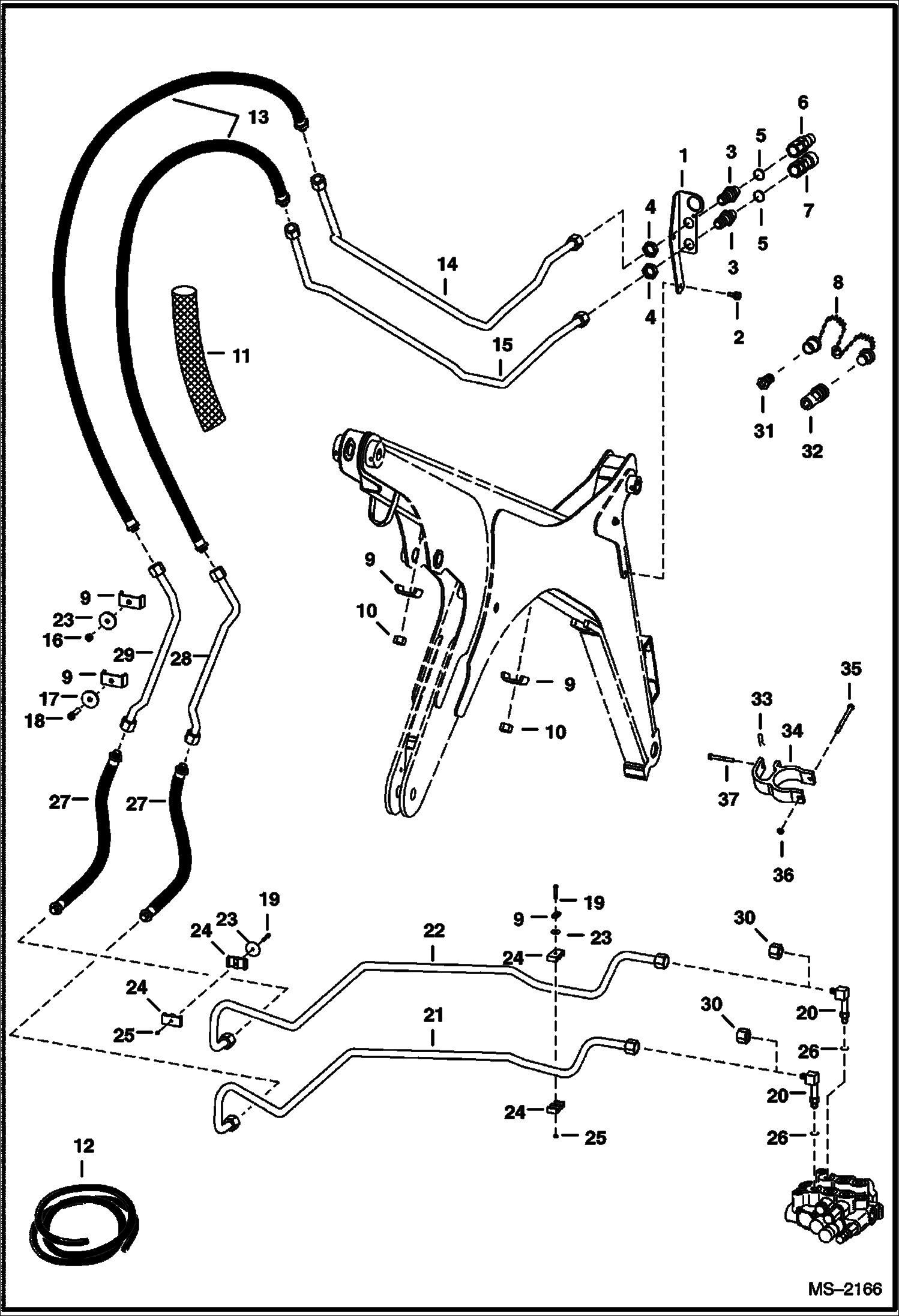

Схема запчастей Bobcat 800s - AUXILIARY HYDRAULICS (S/N 5141 21999, 5142 21999 & Below) HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

6706722

BRACKET for poppet couplers

1

6711839

BRACKET for FF couplers W/ tubes routed inside of lift arm

1

6716808

BRACKET for FF couplers W/ tubes outside of lift arm - Was 6712723 - A

2

84G3712

BOLT 5

3

6579875

CONNECTOR for poppet couplers

3

45K8

ADAPTOR for FF couplers - flat boss face

3

45K8

ADAPTOR for FF couplers - tapered boss face - Was 45KN00008B - A

3

97K12

O'RING flared end

4

86F8

NUT 5

5

79K10

O RING 10 for poppet couplers

5

79K12

O RING 10 for FF couplers - flat boss face

5

99K12

O RING tapered boss face

6

6674688

COUPLER, FF MALE straight - Was 6667808 - A

6

6679841

SEAL Was 6672026 - A

7

6672960

COUPLER, FF FEMALE straight - Was 6667807 - A

8

6513709

CAP PLUG W/ plug assy. - rubber

8

6515167

PLUG steel

8

6515168

CAP steel

9

6502203

CLAMP

10

95D6

NUT Was 91D000006B - B

11

SHIELD NLA - 70.75'' (1797mm) long - Order Ref. 12

12

6651436

HOSE COVER bulk - 2.38'' (60,5mm) ID - Sold Per Foot

13

6710658

HOSE Was 6708575 - C

14

6710655

TUBE for poppet couplers - Was 6708573 - C

14

6711837

TUBE for FF couplers - routed inside of lift arm

14

6712717

TUBE for FF couplers - routed outside of lift arm

15

6710656

TUBE for poppet couplers - Was 6708574 - C

15

6711838

TUBE for FF couplers - routed inside of lift arm

15

6712718

TUBE for FF couplers - routed outside of lift arm

16

97D5

NUT Was 61D000006B - B

17

25E17

WASHER 5

18

17C612

BOLT 5

19

17C552

BOLT Was 37C000540B - B

20

6519187

ELBOW W/Ref. 26

21

6708419

TUBE

21

6709730

TUBE

21

6712943

TUBE

22

6708418

TUBE

22

6709729

TUBE

22

6712944

TUBE

23

872229

WASHER

24

6592506

CLAMP

25

59D5

NUT 5 Was 85D000005B - B

26

79K12

O RING 10

27

6670121

HOSE Was 6710669 - A

28

6714776

TUBE Was 6712952 - A

29

6714777

TUBE Was 6712953 - A

30

36K8

CAP

31

6598757

COUPLER, POPPET MALE straight

32

6598758

COUPLER, POPPET FEMALE straight

32

48K16

O RING 10

32

6665430

BACKUP RING

33

1306637

CLIP

34

6713937

CLAMP Was 6709151 - A

35

17C560

BOLT

36

89D5

NUT

37

6541981

PIN clevis

Выбрано товаров: 57
