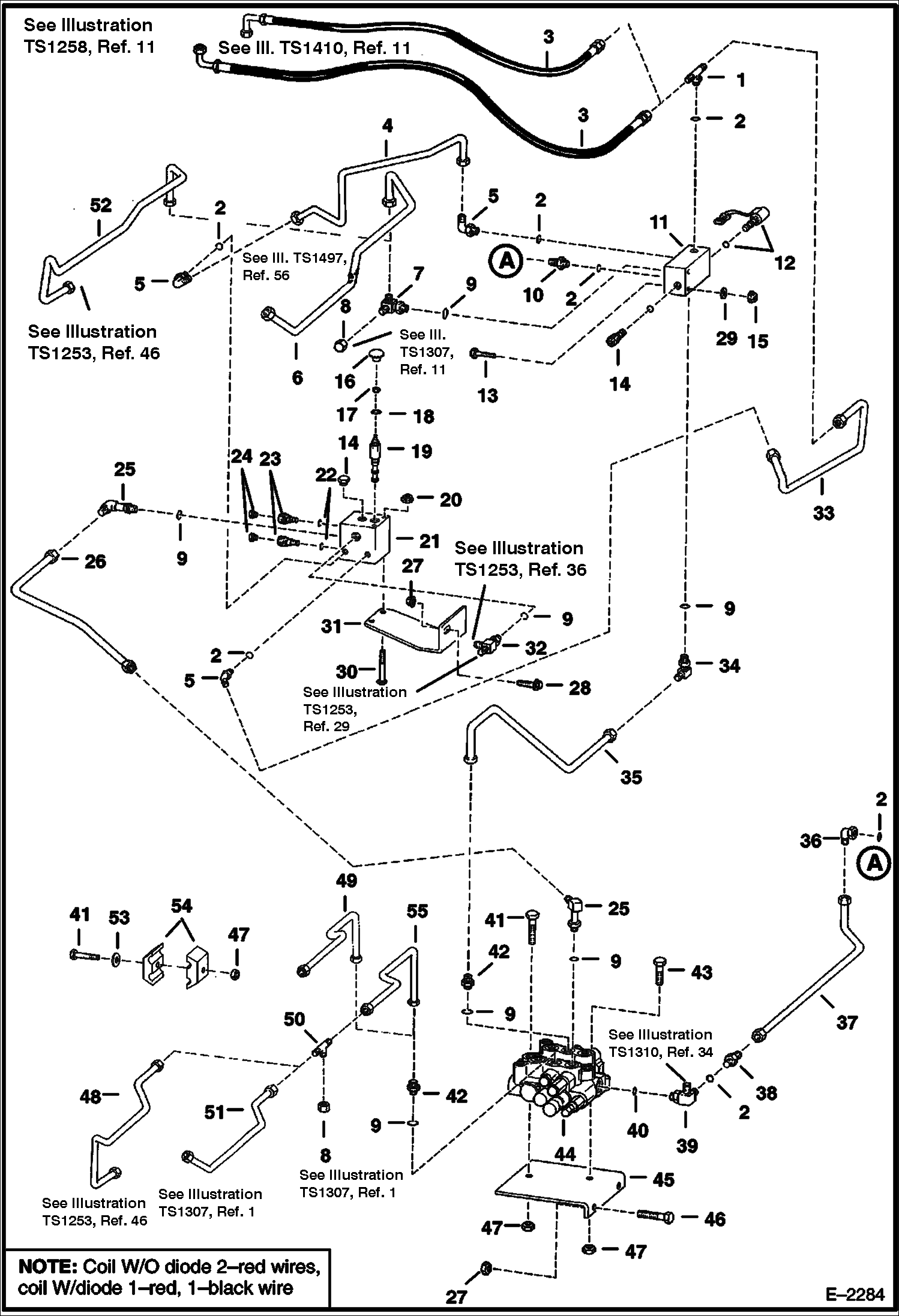

Запчасти Bobcat 800s LIFT & TILT CONTROL CIRCUITRY (S/N 5141 11093-21999, 5142 11006-21999) HYDRAULIC SYSTEM

1

19K5

FITTING W/Ref. 2

2

79K6

O RING 10 flat boss face

2

99K6

O RING tapered boss face

3

6707105

HOSE

4

6709004

TUBE

5

17K5

ELBOW W/Ref. 2 - flat boss face

5

ELBOW NLA - W/Ref. 2 - tapered boss face - Was 17KV00005B - A

5

97K6

O RING flared end

5

17KB0606

FITTING W/Ref. 2 - flat boss face

6

6709007

TUBE

7

6709001

TEE W/Ref. 9

8

36K8

CAP remove for BPV Kit

9

79K10

O RING 10 flat boss face

9

99K10

O'RING tapered boss face

10

6665489

ADAPTER filter

11

6664849

VALVE See Illustration TILT LOCK VALVE/ C3387 - Tilt Lock - W/Ref. 10, 12 & 14

12

SOLENOID NLA - W/O diode - Order 6672471 - Was 6667157 - A

12

6672471

VALVE, SOLENOID W/diode - SEE NOTE - Was 6672456 - A

12

6667687

VALVE, STEM SOLENOID Was 6665004 - A

12

6671025

COIL W/ diode - SEE NOTE

12

6665487

SEAL KIT

13

17C552

BOLT Was 35C-548 - B

14

6665610

VALVE

14

6665612

SEAL KIT

15

97D5

NUT Was 83D000005B - B

16

6737524

KNOB red square - Was 6668913 - A

17

7D4

NUT

18

6707101

SEAL neoprene

19

6665490

VALVE manual pull

19

6666828

SEAL KIT

20

89D5

NUT

21

6664850

VALVE See Illustration LIFT LOCK VALVE/ B18513 - Lift Lock - W/Ref. 14, 16, 19 & 23

22

79K4

O RING 10

23

6665609

CHECK VALVE

23

6665611

SEAL KIT

24

6667127

PLUG W/Ref. 22

25

6519195

ELBOW W/Ref. 9

26

6707119

TUBE

27

97D6

NUT 10 Was 83D000006B - B

28

35C620

BOLT 5

29

25E15

WASHER

30

17C568

BOLT

31

6707132

MOUNT

32

6578183

TEE W/Ref. 9 - flat boss face

32

TEE NLA - W/Ref. 9 - tapered boss face - Was 6715187 - A

32

97K8

O-RING flared end

32

21KB0810

FITTING, HYD TEE W/Ref. 9 - flat boss face

33

6709003

TUBE

34

17KB1210

FITTING, HYD ELBOW W/Ref. 9 - flat boss face - Was 6714901 - A

35

6709006

TUBE

36

11K5

FITTING W/Ref. 2 - flat boss face

36

11K5

FITTING W/Ref. 2 - tapered boss face - Was 11KN00005B - A

36

97K6

O RING flared end

37

6709002

TUBE

38

15K5

FITTING W/Ref. 2 - flat boss face

38

ADAPTER NLA - W/Ref. 2 - tapered boss face - Was 15KV00005B - A

38

97K6

O RING flared end

38

15KB0606

FITTING, HYD CONNECTOR W/Ref. 2 - flat boss face

39

6715653

TEE W/Ref. 40 - Was 6704158 - A

40

79K12

O RING 10

41

17C540

BOLT

42

730963

CONNECTR W/Ref. 9

43

17C528

BOLT

44

VALVE See Illustration HYDRAULIC CONTROL VALVE/ TS1228

45

6579692

MOUNT valve

46

35C616

BOLT 5 Was 17C000616B - B

47

95D5

NUT Was 97D000005B - B

48

6709538

TUBE

49

6706500

TUBE

50

10K8

TEE See Illustration LIFT & TILT CONTROL CIRCUITRY/ TS1255

51

6712945

TUBE See Illustration HYDRAULIC CIRCUITRY/ TS1498

51

6713386

TUBELINE

52

6712946

TUBE See Illustration HYDRAULIC CIRCUITRY/ TS1498

53

872229

WASHER

54

6592506

CLAMP

55

6714523

TUBE
