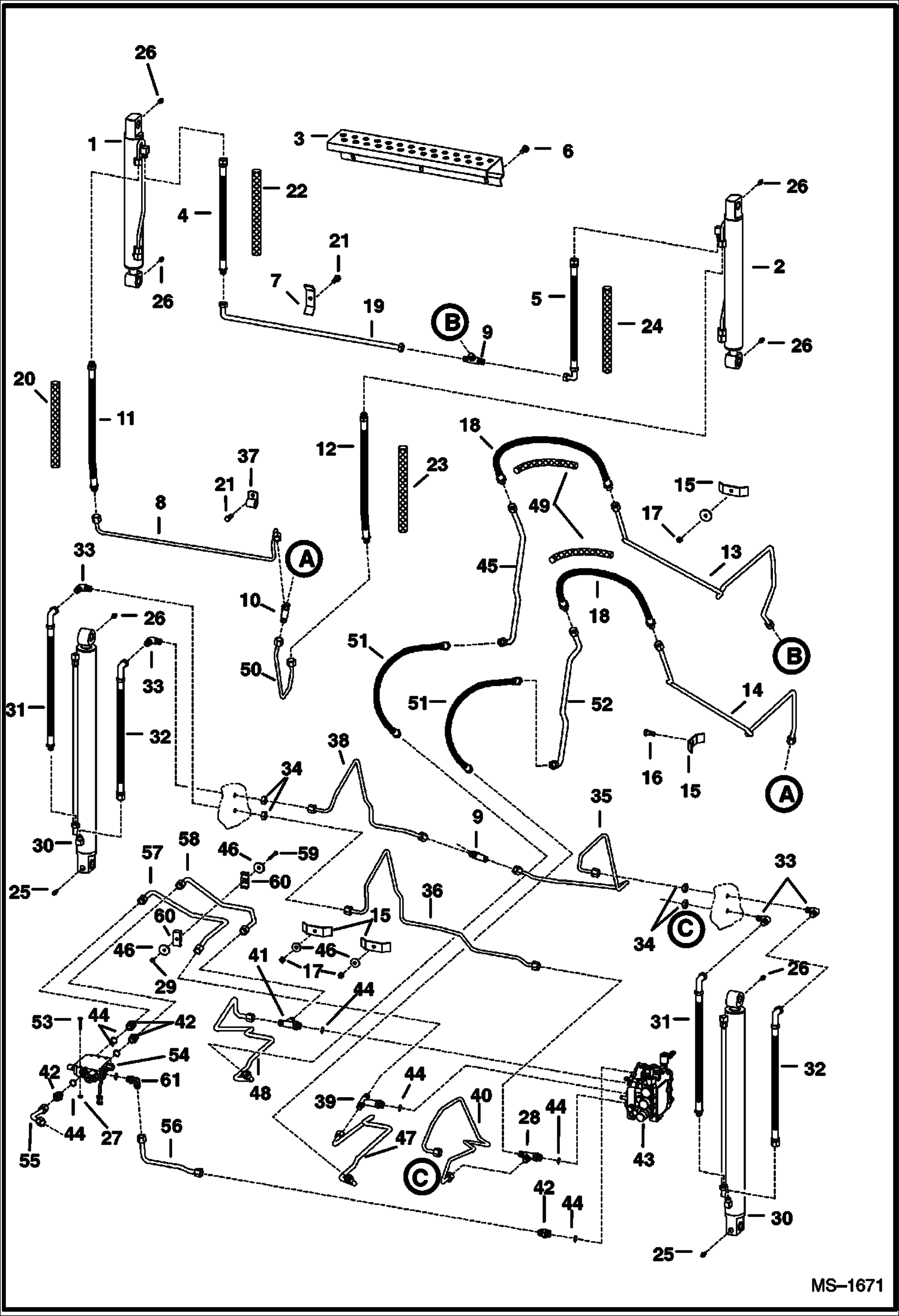

Запчасти Bobcat 800s HYDRAULIC CIRCUITRY (W/Bucket Positioning Valve) (S/N 5141 27006-39999, 5142 22393-39999) HYDRAULIC SYSTEM

1

CYLINDER See Illustration TILT CYLINDER/ PE1550 - LH tilt

2

CYLINDER See Illustration TILT CYLINDER/ PE1549 - RH tilt

3

6710491

SHIELD boom step

4

6711811

HOSE

5

6710642

HOSE

6

84G3712

BOLT 5

7

30H30

CLAMP

8

6718352

TUBE

9

6560136

TEE

10

6569146

TEE

11

6718817

HOSE

12

6718818

HOSE

13

6710624

TUBE

14

6710623

TUBE

15

6502203

CLAMP

16

84G3724

BOLT

17

95D6

NUT

18

6670120

HOSE

19

6710629

TUBE

20

SHIELD NLA - 13'' (330mm) long - .75'' (19mm) ID - Order Ref. 11

21

84G3112

BOLT 5

22

SHIELD NLA - 14'' (356mm) long - .75'' (19mm) ID - Order Ref. 4

23

SHIELD NLA - 17.5'' (445mm) long - .75'' (19mm) ID - Order Ref. 12

24

SHIELD NLA - 16.5'' (419 mm) long - .75'' (19 mm) ID - Order Ref. 5

25

12H15

FITTING, GREASE 5

26

10H25

FITTING, GREASE 5

27

83D5

NUT 5

28

TEE NLA - W/Ref. 44 - tapered boss face - Was 6715187 - A

28

97K8

O-RING flared end

28

21KB0810

FITTING, HYD TEE W/Ref. 44 - flat boss face

29

85D6

NUT, 5

30

CYLINDER See Illustration LIFT CYLINDER/ TS1235 - lift

31

6708922

HOSE

32

6708923

HOSE

33

88F6

ELBOW Was 88FN6 - A

34

86F6

NUT

35

6715068

TUBE

35

6717314

TUBE

36

6715069

TUBE

37

31H26

CLIP

38

6715067

TUBE

39

6715294

TEE W/Ref. 44

39

97K10

O-RING 10 flared end

40

6715071

TUBELINE

40

6717315

TUBELINE

41

21KB1010

FITTING, HYD TEE W/Ref. 44 - Was 21KN00007B - A

42

CONNECTOR NLA - W/Ref. 44 - tapered boss face - Was 15KV00007B - A

42

97K10

O-RING 10 flared end

42

15KB1010

FITTING, HYD CONNECTOR W/Ref. 44 - flat boss face

43

VALVE See Illustration HYDRAULIC CONTROL VALVE/ MS1638

44

99K10

O'RING tapered boss face

44

79K10

O RING 10 flat boss face

45

6714775

TUBE

46

872229

WASHER

47

6715072

TUBELINE

48

6715174

TUBELINE

49

SHIELD NLA - 20.25'' (514mm) long - 1.31'' (33,3mm) ID - Order Ref. 18

50

6718475

TUBELINE

51

6717109

HOSE

52

6714774

TUBE

53

35C540

BOLT

54

VALVE See Illustration BUCKET POSITIONING VALVE/ MS1943

55

6715076

TUBELINE

56

6715077

TUBELINE

57

6715078

TUBELINE

58

6715281

TUBELINE

59

17C632

BOLT 5

60

6701893

CLAMP

61

17KN7

FITTING W/Ref. 44
