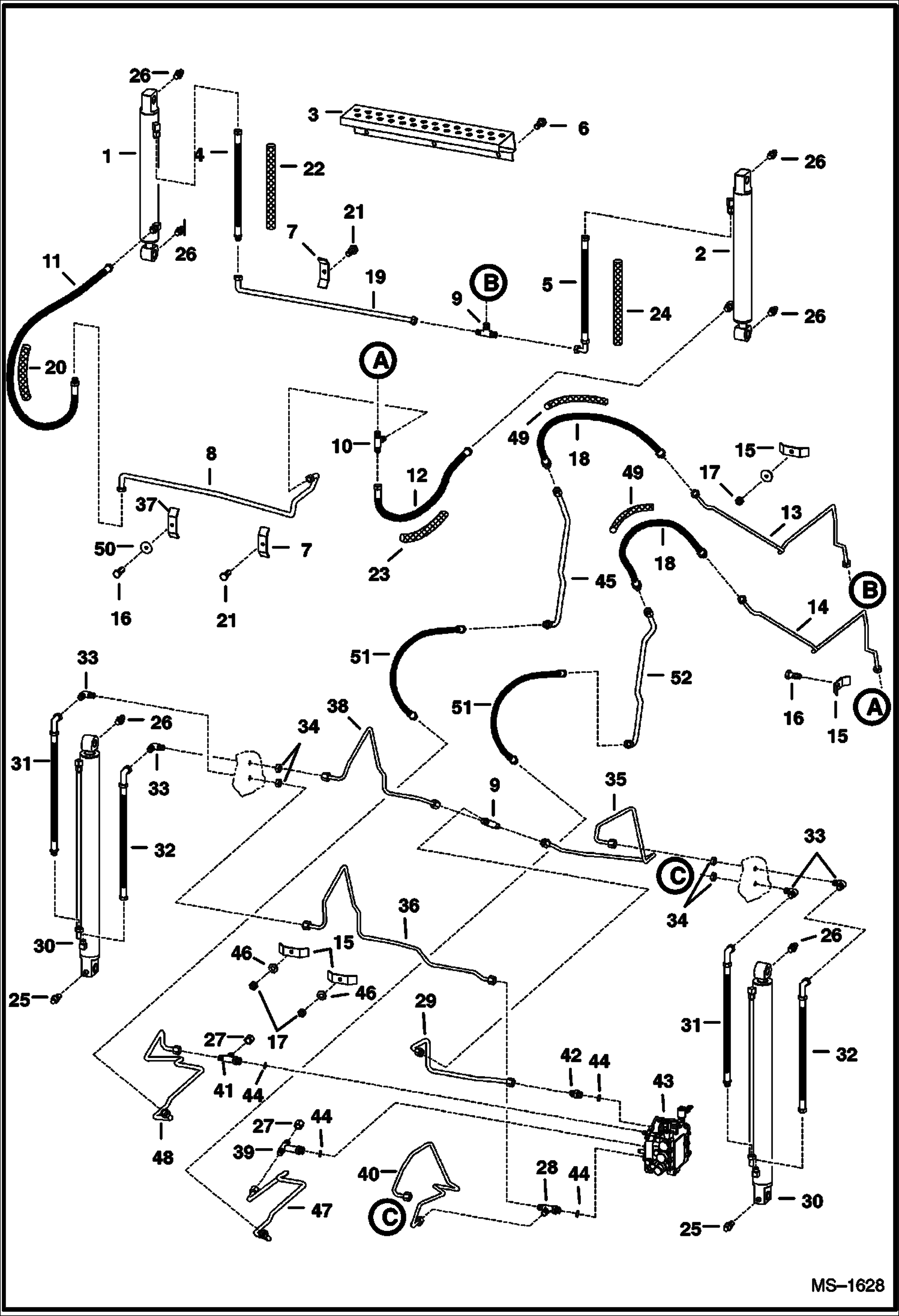

Запчасти Bobcat 800s HYDRAULIC CIRCUITRY (W/O Bucket Positioning Valve) (S/N 5141 22001-27005, 5142 22001-22392) HYDRAULIC SYSTEM
№
Артикул
Название
Примечание
Количество
1
CYLINDER See Illustration TILT CYLINDER/ MS1631 - LH - tilt
2
CYLINDER See Illustration TILT CYLINDER/ MS1630 - RH - tilt
3
6710491
SHIELD boom step
4
6711811
HOSE
5
6710642
HOSE
7
30H30
CLAMP
8
6710617
TUBE
9
6560136
TEE
10
6569146
TEE
11
6710648
HOSE
12
6710643
HOSE
13
6710624
TUBE
14
6710623
TUBE
15
6502203
CLAMP
16
84G3724
BOLT
17
95D6
NUT
18
6670120
HOSE
19
6710629
TUBE
20
SHIELD NLA - 17.5'' (445mm) long - .75'' (19mm) ID - Order Ref. 11
21
84G3112
BOLT 5
22
SHIELD NLA - 14'' (356mm) long - .75'' (19mm) ID - Order Ref. 4
23
SHIELD NLA - 25.25'' (461 mm) long - .75'' (19 mm) ID - Order Ref. 12
24
SHIELD NLA - 16.5'' (419 mm) long - .75'' (19 mm) ID - Order Ref. 5
27
36K7
FITTING
28
TEE NLA - W/Ref. 44 - tapered boss face - Was 6715187 - A
28
97K8
O-RING flared end
28
21KB0810
FITTING, HYD TEE W/Ref. 44 - flat boss face
29
6715075
TUBE
30
CYLINDER See Illustration LIFT CYLINDER/ TS1235 - lift
31
6708922
HOSE
32
6708923
HOSE
33
88F6
ELBOW Was 88FN6 - A
34
86F6
NUT
35
6715068
TUBE
35
6717314
TUBE
36
6715069
TUBE
37
6701892
CLAMP Was 6710892 - D
38
6715067
TUBE
39
6715294
TEE W/Ref. 44
39
97K10
O-RING 10 flared end
40
6715071
TUBELINE
40
6717315
TUBELINE
41
21KB1010
FITTING, HYD TEE W/Ref. 44 - Was 21KN00007B - A
42
CONNECTOR NLA - W/Ref. 44 - tapered boss face - Was 15KV00007B - A
42
97K10
O-RING 10 flared end
42
15KB1010
FITTING, HYD CONNECTOR W/Ref. 44 - flat boss face
43
VALVE See Illustration HYDRAULIC CONTROL VALVE/ MS1638
44
99K10
O'RING tapered boss face
45
6714775
TUBE
46
872229
WASHER
47
6715072
TUBELINE
48
6715174
TUBELINE
49
SHIELD NLA - 20.25'' (514mm) long - 1.31'' (33,3mm) ID - Order Ref. 18
50
6560899
WASHER
51
6717109
HOSE
52
6714774
TUBE
