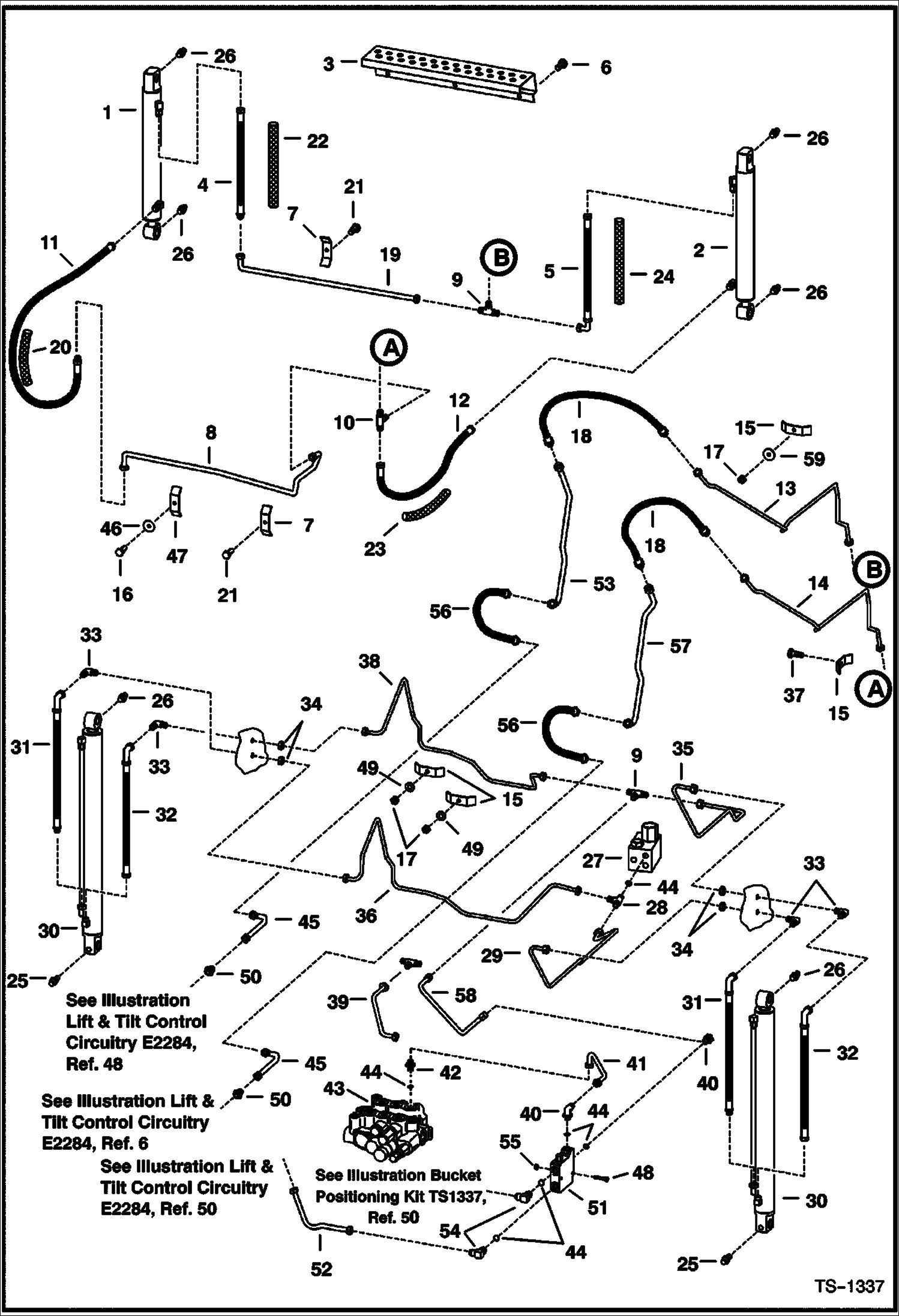

Запчасти Bobcat 800s HYDRAULIC CIRCUITRY (W/ Bucket Positioning Valve) (S/N 5141 11574-12197, 5141 12199-12234, 5141 12238, 5141 12451-21999 & 5142 11214-11263, 5142 11270-21999) HYDRAULIC SYSTEM

1

6597376

CYLINDER See Illustration TILT CYLINDER/ TS1378 See Illustration TILT CYLINDER/ MS1631 - LH tilt

2

6597377

CYLINDER See Illustration TILT CYLINDER/ TS1377 See Illustration TILT CYLINDER/ MS1630 - RH tilt

3

6710491

SHIELD boom step

4

6711811

HOSE

5

6710642

HOSE

6

84G3712

BOLT 5

7

30H30

CLAMP

8

6710617

TUBE

9

6560136

TEE

10

6569146

TEE

11

6710648

HOSE

12

6710643

HOSE

13

6710624

TUBE

14

6710623

TUBE

15

6502203

CLAMP

16

84G3724

BOLT

17

95D6

NUT Was 91D000006B - B

18

6670120

HOSE Was 6710657 - A

19

6710629

TUBE

20

SHIELD NLA - 17.5'' (445mm) long - .75'' (19mm) ID - Order Ref. 11

21

84G3112

BOLT 5

22

SHIELD NLA - 14'' (356mm) long - .75'' (19mm) I.D. - Order Ref. 4

23

SHIELD NLA - 25.25'' (461 mm) long - .75'' (19 mm) ID - Order Ref. 12

24

SHIELD NLA - 16.5'' (419 mm) long - .75'' (19 mm) ID - Order Ref. 5

25

12H15

FITTING, GREASE 5

26

10H25

FITTING, GREASE 5

27

6664850

VALVE See Illustration LIFT LOCK VALVE/ B18513 - lift lock

28

6578183

TEE W/Ref. 44 - flat boss face

28

TEE NLA - W/Ref. 44 - tapered boss face - Was 6715187 - A

28

97K8

O-RING flared end

28

21KB0810

FITTING, HYD TEE flat boss face

29

6706491

TUBELINE

29

6713387

TUBELINE

30

6589198

CYLINDER See Illustration LIFT CYLINDER/ TS1235 - lift

31

6708923

HOSE

32

6708922

HOSE

33

88F6

ELBOW

34

86F6

NUT

35

6708774

TUBE

35

6713388

TUBE

36

6706492

TUBE

37

84G3728

BOLT

38

6706493

TUBE

39

6706495

TUBE

40

17K7

ELBOW W/Ref. 44 - flat boss face

40

ELBOW NLA - W/Ref. 44 - tapered boss face - Was 17KV00007B - A

40

97K10

O-RING 10 flared end

40

17KB1010

FITTING, HYD ELBOW W/Ref. 44 - flat boss face

41

6706494

TUBE

42

15K7

FITTING W/Ref. 44 - flat boss face

42

CONNECTOR NLA - W/Ref. 44 - tapered boss face - Was 15KV00007B - A

42

97K10

O-RING 10 flared end

42

15KB1010

FITTING, HYD CONNECTOR W/Ref. 44 - flat boss face

43

VALVE See Illustration HYDRAULIC CONTROL VALVE/ TS1380

44

79K10

O RING 10 flat boss face

44

99K10

O'RING tapered boss face

45

6712954

TUBE

46

6560899

WASHER

47

6701892

CLAMP Was 6710892 - D

48

17C540

BOLT

49

872229

WASHER

50

87F8

UNION

51

6665920

VALVE See Illustration BUCKET POSITIONING VALVE/ MS1943 - bucket positioning

52

6706498

TUBELINE

52

6714522

TUBELINE

53

6714775

TUBE Was 6712953 - A

54

17KB1210

FITTING, HYD ELBOW flat boss face - Was 6714901 - A

55

95D5

NUT Was 85D000005B - B

56

6670121

HOSE Was 6712955 - A

57

6714774

TUBE Was 6712952 - A

58

6714521

TUBE
