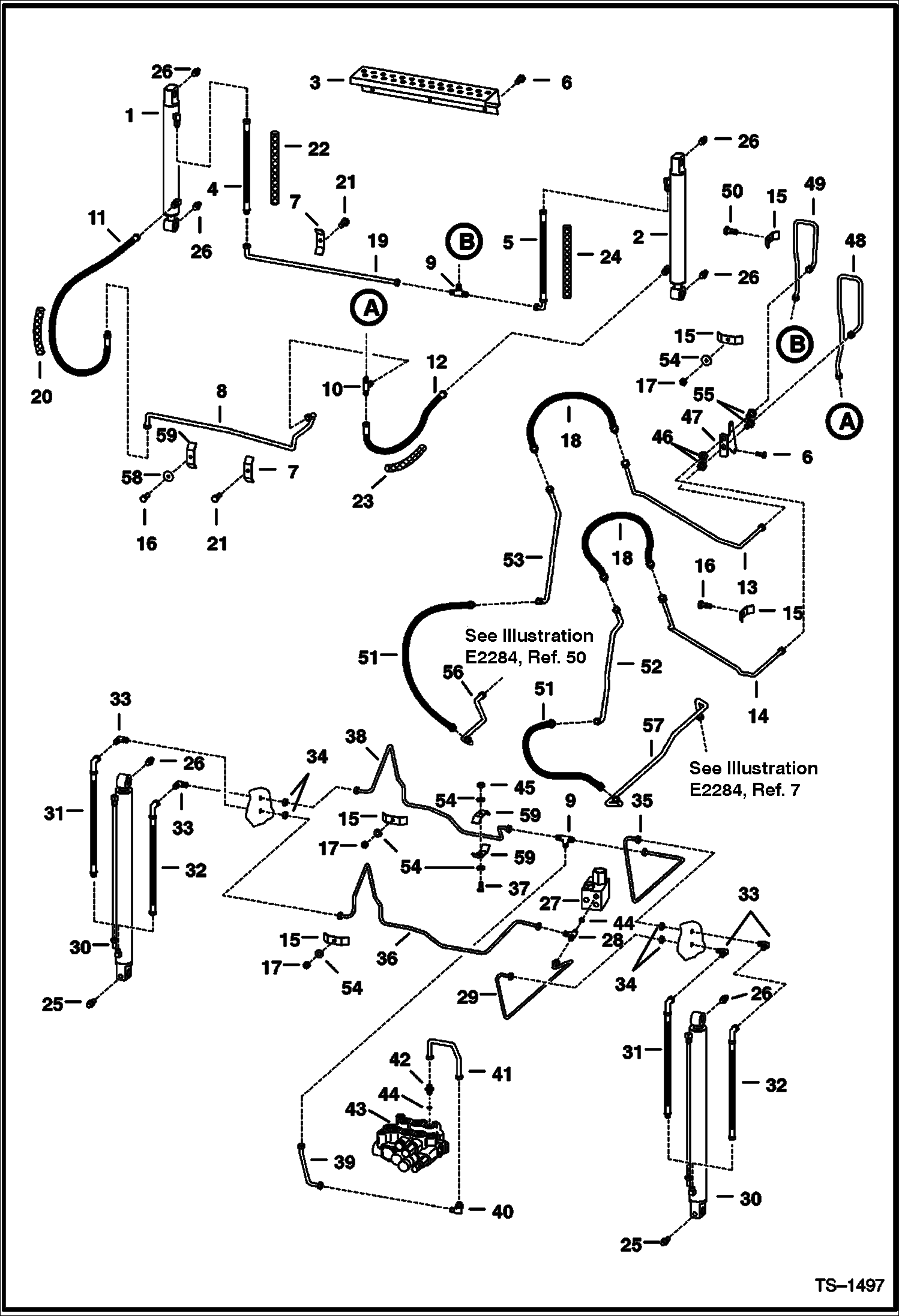

Запчасти Bobcat 800s HYDRAULIC CIRCUITRY (W/O Bucket Positioning Valve) (S/N 5141 12198, 5141 12235-12237, 5141 12239-12450, & 5142 11264-11269) HYDRAULIC SYSTEM

1

6597376

CYLINDER See Illustration TILT CYLINDER/ TS1378 - LH tilt

2

6597377

CYLINDER See Illustration TILT CYLINDER/ TS1377 - RH tilt

3

6710491

SHIELD boom step

4

6711811

HOSE

5

6710642

HOSE

6

84G3712

BOLT 5

7

30H30

CLAMP

8

6710617

TUBE

9

6560136

TEE

10

6569146

TEE

11

6710648

HOSE

12

6710643

HOSE

13

6712719

TUBE

14

6712721

TUBE

15

6502203

CLAMP

16

84G3724

BOLT

17

95D6

NUT

18

6670120

HOSE

19

6710629

TUBE

20

SHIELD NLA - 17.5'' (445mm) long - .75'' (19mm) OD - Order Ref. 11

21

84G3112

BOLT 5

22

SHIELD NLA - 14'' (356mm) long - .75'' (19mm) OD - Order Ref. 4

23

SHIELD NLA - 25.25'' (461 mm) long - .75'' (19 mm) OD - Order Ref. 12

24

SHIELD NLA - 16.5'' (419 mm) long - .75'' (19 mm) - Order Ref. 5

25

12H15

FITTING, GREASE 5

26

10H25

FITTING, GREASE 5

27

6664850

VALVE See Illustration LIFT LOCK VALVE/ B18513 - lift lock

28

6578183

TEE W/Ref. 44

29

6706491

TUBELINE

30

6589198

CYLINDER See Illustration LIFT CYLINDER/ TS1235 - lift

31

6708923

HOSE

32

6708922

HOSE

33

88F6

ELBOW

34

86F6

NUT

35

6708774

TUBE

36

6706492

TUBE

37

17C532

BOLT 5

38

6706493

TUBE

39

6706495

TUBE

40

46K7

ELBOW

41

6708565

TUBE

42

15K7

FITTING W/Ref. 44

43

VALVE See Illustration HYDRAULIC CONTROL VALVE/ TS1380

44

79K10

O RING 10

45

59D5

NUT 5

46

86F7

LOCK NUT

47

6712724

MOUNT

48

6712722

TUBE

49

6712720

TUBE

50

84G3728

BOLT

51

6670121

HOSE

52

6714774

TUBE Was 6712952 - A

53

6714775

TUBE Was 6712953 - A

54

872229

WASHER

55

45K7

CONNECTR

56

6712945

TUBE

57

6712946

TUBE

58

6560899

WASHER

59

6701892

CLAMP
