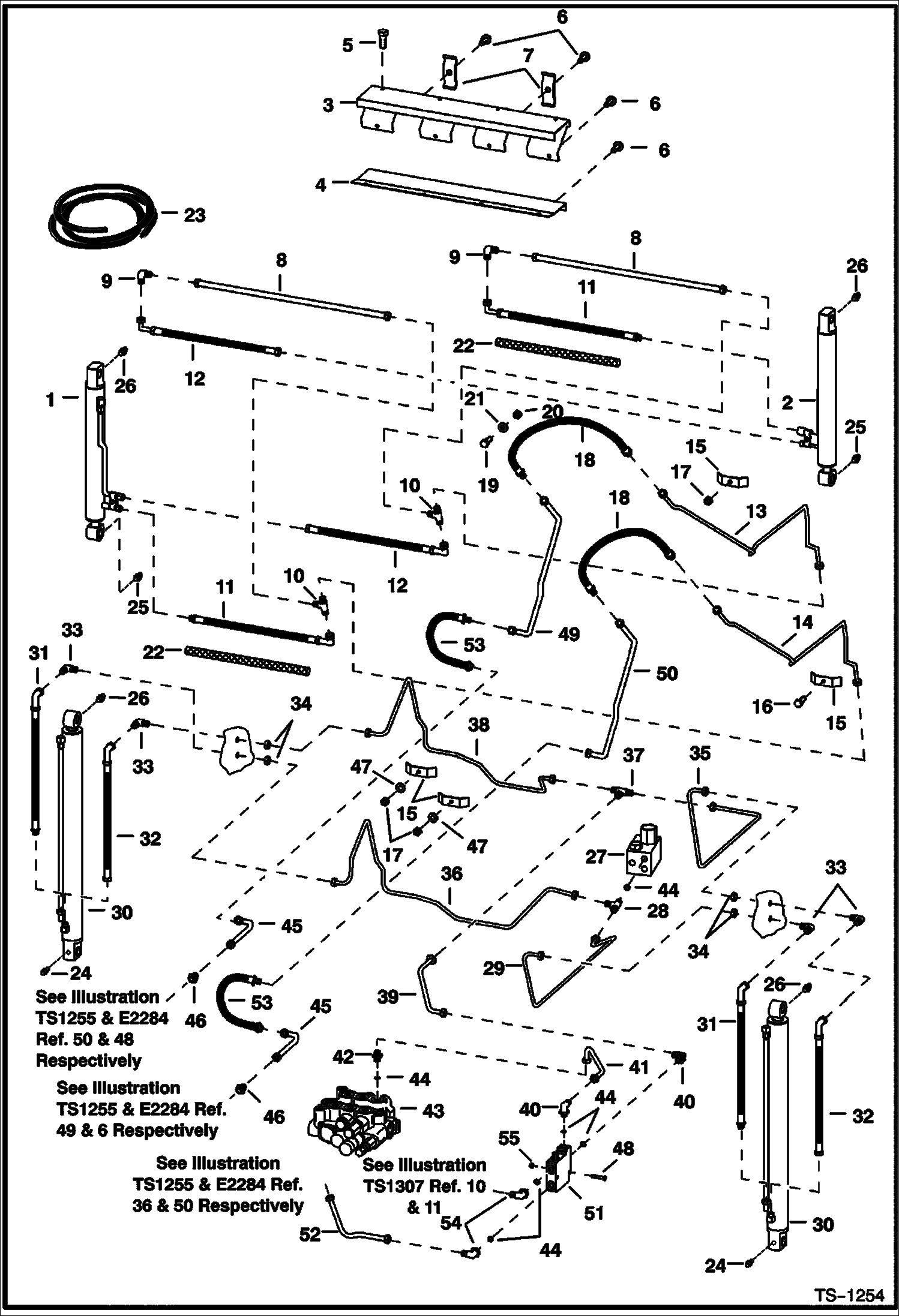

Запчасти Bobcat 800s HYDRAULIC CIRCUITRY (W/Bucket Positioning Valve) (S/N 5141 11573, 5142 11213 & Below) HYDRAULIC SYSTEM

1

6597387

CYLINDER See Illustration TILT CYLINDER/ TS1234 - LH - tilt - Was 6589247 - A

2

6597388

CYLINDER See Illustration TILT CYLINDER/ TS1233 - RH - tilt - Was 6589475 - A

3

6706719

SHIELD boom step

4

6706720

BRACE NSS

5

84G3112

BOLT 5

6

84G3712

BOLT 5

7

6591804

CLAMP

8

6708538

TUBE

9

77F7

ELBOW

10

10K7

TEE

11

6708932

HOSE

12

6708931

HOSE

13

6710638

TUBE Was 6708547 - C

14

6710639

TUBE Was 6708536 - C

15

6502203

CLAMP

16

84G3724

BOLT

17

95D6

NUT Was 91D000006B - B

18

6670120

HOSE Was 6710657 - C

19

17C612

BOLT 5

20

61D6

NUT 5

21

25E17

WASHER 5

22

SHIELD NLA - 50'' (1270mm) long - Order Ref. 23

23

6651436

HOSE COVER 2.38'' (60,5mm) ID - bulk - Sold Per Foot

24

12H15

FITTING, GREASE 5

25

11H25

FITTING10

26

10H25

FITTING, GREASE 5

27

6664850

VALVE See Illustration LIFT LOCK VALVE/ B18513 - lift lock

28

6578183

TEE W/Ref. 44

29

6706491

TUBELINE

30

6589198

CYLINDER See Illustration LIFT CYLINDER/ TS1235 - lift

31

6708923

HOSE

32

6708922

HOSE

33

88F6

ELBOW

34

86F6

NUT

35

6708774

TUBE

36

6706492

TUBE

37

6560136

TEE

38

6706493

TUBE

39

6706495

TUBE

40

17K7

ELBOW W/Ref. 44

41

6706494

TUBE

42

15K7

FITTING W/Ref. 44

43

VALVE See Illustration HYDRAULIC CONTROL VALVE/ TS1228 See Illustration HYDRAULIC CONTROL VALVE/ TS1380

44

79K10

O RING 10

45

6712954

TUBE

46

87F8

UNION

47

872229

WASHER

48

17C540

BOLT

49

6714775

TUBE Was 6712953 - A

50

6714774

TUBE Was 6712952 - A

51

VALVE See Illustration BUCKET POSITIONING VALVE/ MS1943 - bucket position

52

6706498

TUBELINE

53

6670121

HOSE Was 6712955 - A

54

17KB1210

FITTING, HYD ELBOW W/Ref. 44 - flat boss face - Was 6714901 - A

55

85D5

NUT 5
