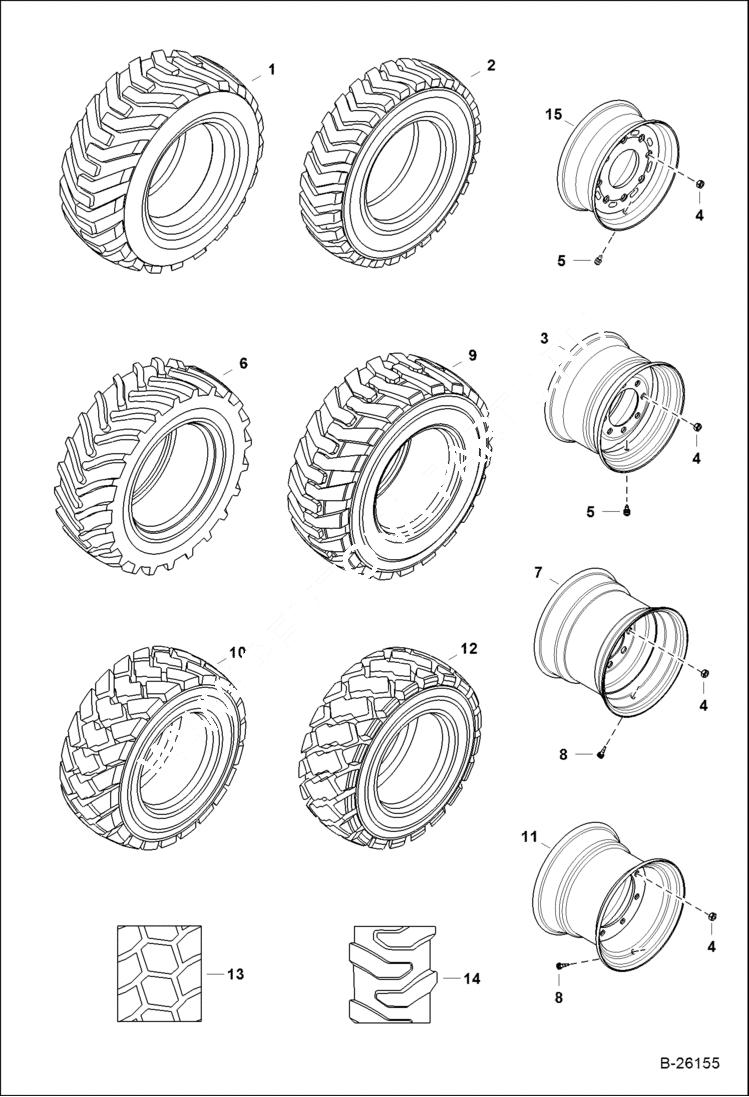

Запчасти Bobcat 800s TIRES & RIMS (Pneumatic Tire) ACCESSORIES & OPTIONS

1

TIRE NLA - 12x16.5 6 ply rating - factory option - Goodyear - Order Ref. 9 (6729897 tire) - Was 6519249 - A

1

TIRE NLA - 12x16.5 8 ply rating - factory option - Firestone - Order Ref. 9 (6729897 tire) - Was 6670145 - A

1

TIRE NLA - 12x16.5 8 ply rating - factory option - Goodyear - Ref. 9 (6729897 tire) - Was 6590832 - A

1

TIRE NLA - 12x16.5 8 ply - Trac 2 - factory option - Dico - Order Ref. 9 (6729897 tire) - Was 6662754 - A

2

TIRE NLA - 8.25x15 6 ply rating IDT (Industrial Deep Tread) - factory option - Dico - Was 6665725 - A

3

7232567

WHEEL, RIM 16.5X9.75 See BTI197ldr - Use W/Ref. 1, 9, 12, 13, & 14 - Was 6730772 - A

4

6564669

NUT, 10 wheel

5

1614765

VALVE STEM, TIRE use on 6730772 rim & 6728991 rim

6

TIRE NLA - 31x15.5, 8 ply Terra Grip - factory option - purchase locally- Was 6513971 - A

6

TIRE NLA - 31x15.5 8 ply - Terra Grip - factory option - Dico - purchase locally- Was 6667892 - A

6

TIRE NLA - 31x15.5 8 ply ultra grip - factory option - Goodyear - purchase locally- Was 6666668 - A

7

6561095

WHEEL, RIM 15X13 See BTI197ldr - Use W/Ref. 1 - Was 6658846 - B

8

6591447

VALVE STEM, TIRE Use W/Ref. 7

9

TIRE NLA - 12x16.5 10 Ply Rating - factory option - Bobcat - Order 6729897 or 6729901 Tire - Was 6661601 - A

9

6729897

TIRE, STANDARD 33X12X16.5, 10 PLY Standard Duty - factory option - Was 6667888 - A

9

6729901

TIRE, HEAVY DUTY 33X12X16.5, 12 PLY factory option - Bobcat

9

6730109

TIRE, SUPER FLOAT 33X15.5X16.5, 12 PLY Hippo - factory option - Galaxy

10

6677674

TIRE, BULKY HULK 33X15.5X16.5, 14PLY Bulky Hulk - factory option - Galaxy - Was 6730110 - A

11

6728991

WHEEL, RIM 15.5X16.5 See BTI197ldr - Use W/Ref. 10

12

6730108

TIRE, SEVERE DUTY 33X12X16.5, 12 PLY factory option - Bobcat

13

6988144

TIRE, NON-DIRECTIONAL 12X16.5-14 PLY EF

14

6988501

TIRE, EARTHFORCE 12X16.5 - 10 PLY

14

7219732

TIRE, HEAVY DUTY 33X12X16.5, 10 PLY

15

6562498

WHEEL, RIM 15X6 See BTI197ldr - Use W/Ref. 2
