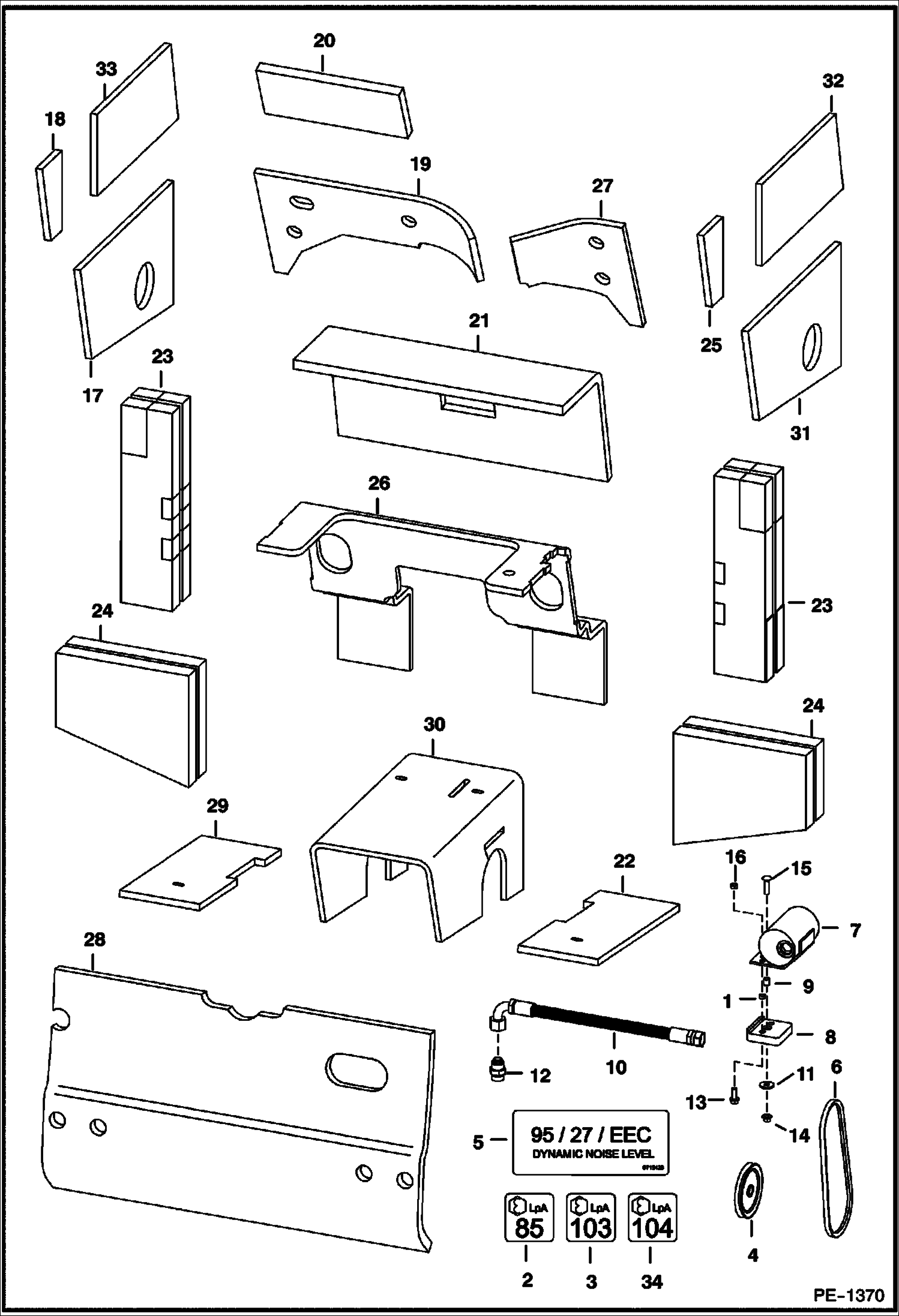

Запчасти Bobcat 800s SOUND OPTION (Domestic) (85 db) ACCESSORIES & OPTIONS

1

6562619

BUSHING throttle

2

6579385

DECAL noise warning - 85 db

3

6579404

DECAL 103 db

4

6712971

PULLEY fan - 5.33'' (135,38 mm) dia.

4

6579541

PULLEY fan - 6.10'' (159,94 mm) dia.

5

6715428

DECAL dynamic noise level

6

6707648

BELT fan

6

6676345

BELT Fan

7

6659982

MUFFLER

8

6705333

MOUNT

9

6715744

BUSHING

10

6729156

HOSE Was 6714977 - A

11

619021

WASHER, 5

12

15KB1212

FITTING, HYD CONNECTOR Was 15KV-8 - A

12

97K12

O'RING flared end

13

35C616

BOLT 5

14

83D6

NUT 5

15

37C624

BOLT

16

85D6

NUT, 5

17

6715456

INSULATION panel shield

18

6719488

INSULATION panel shield

19

6719332

INSULATION blower housing

20

6709829

INSULATION air inlet

21

6719058

INSULATION crossmember

22

6719479

INSULATION pedal shield

23

7152242

INSULATION, STRIP fender - Was 6703967 - B

24

6703968

INSULATION transmission

25

6719489

INSULATION panel shield

26

6719449

INSULATION steering panel

27

6719333

INSULATION blower housing

28

6715106

INSULATION rear door

29

6719478

INSULATION pedal shield

30

6715443

INSULATION transmission

31

6715457

INSULATION panel shield

32

6719486

INSULATION panel shield

33

6719487

INSULATION panel shield

34

6731994

DECAL, DECIBEL noise level - 104db
