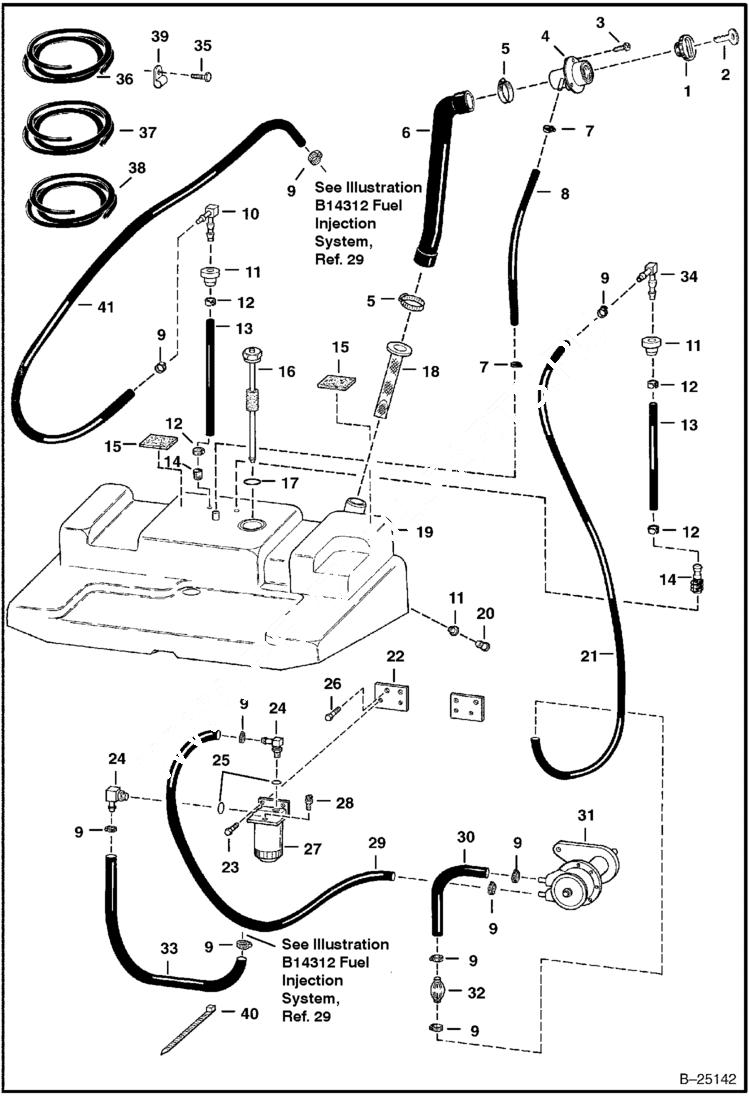

Запчасти Bobcat 800s FUEL SYSTEM MAIN FRAME

1

6661114

CAP. DIESEL green fuel fill

1

CAP NLA - locking - Code GC020 - W/Ref. 2

1

6661696

CAP, FUEL LOCKING locking - W/Ref. 2 - Code PK510

2

6654374

KEY Code GC020

2

6587458

KEY Code PK510

3

6706517

SCREW Was 6579119 - A

4

6701449

FILLER TUBE

5

42H24

CLAMP-5

6

6717451

HOSE Was 6708612 - A

7

44H20

CLAMP Was 6666864 - A

8

HOSE NLA - 38'' (965 mm) long - Order Ref. 36

9

42HS04

CLAMP, HOSE Was 6515575 - B

10

6598908

ELBOW Was 6681462 - A

11

6553411

BUSHING 0.38'' ID

11

6717402

BUSHING 0.54'' ID

12

6661213

RING, COMPRESSION

13

6569752

HOSE BULK/FT 13'' (330,2 mm) - Was 6579554 - A

14

6650239

SCREEN, FUEL PICKUP

15

6578278

PAD self adhesive one side

16

SENSOR See Illustration ENGINE ELECTRICAL CIRCUITRY/ B18415 See Illustration ENGINE ELECTRICAL CIRCUITRY/ B18413 - NLA - fuel - W/Ref. 17 (79K14 O-Ring) - Order 6680438 Sensor

16

7179839

SENSOR FUEL See Illustration ENGINE ELECTRICAL CIRCUITRY/ B18415 See Illustration ENGINE ELECTRICAL CIRCUITRY/ B18413 - W/Ref. 17 (6717579 gasket) - Was 6680438 - A

17

79K14

O RING 10

17

6717579

GASKET Rubber

18

7120881

SCREEN, FILLER Was 6569219 - A

19

6708527

TANK, FUEL

20

6599645

PLUG, STEEL .5'' shoulder

20

7203382

PLUG, STEEL fuel drain - .75'' shoulder - Was 6717401 - A

21

HOSE NLA - 30'' (762 mm) long - Order Ref. 37

22

6707736

MOUNT 3.25'' x 2''

22

6710488

MOUNT 3.25'' x 3''

23

53CM830

BOLT Was 1CM00830B - B

24

ELBOW NLA - W/Ref. 25 - flat boss face - Was 6657083 - A

24

6715183

ELBOW W/Ref. 25 - check boss face to determine correct replacement o-ring

25

79K5

O RING 10 for flat boss face

25

99K5

O-RING for tapered boss face

26

43C512

BOLT Was 17C000512B - B

27

6667353

FILTER ASSY W/Ref. 28

27

6667352

FILTER, FUEL W/SEPARATOR 12

27

72F1

FITTING

28

6658180

PLUG, BLEED

29

HOSE NLA - 14'' (354 mm) long - Order Ref. 37

30

HOSE NLA - 9.5'' (241 mm) long - Order Ref. 37

31

6666522

FUEL PUMP See Illustration FUEL INJECTION SYSTEM/ B14312

32

6667170

PUMP 193 mm (7.6'') long

33

HOSE NLA - 21.5'' (546 mm) long - Order Ref. 37

34

7126672

ELBOW barbed - Was 6666302 - A

35

1CM816

BOLT

36

6578172

HOSE bulk - sold per foot

37

6577822

HOSE bulk - sold per foot - .3125'' ID

38

6577821

HOSE bulk - sold per foot - .25'' ID

39

30H30

CLAMP

40

6610510

TIE

41

HOSE NLA - 29.5'' (749,3 mm) long - Order Ref. 38
