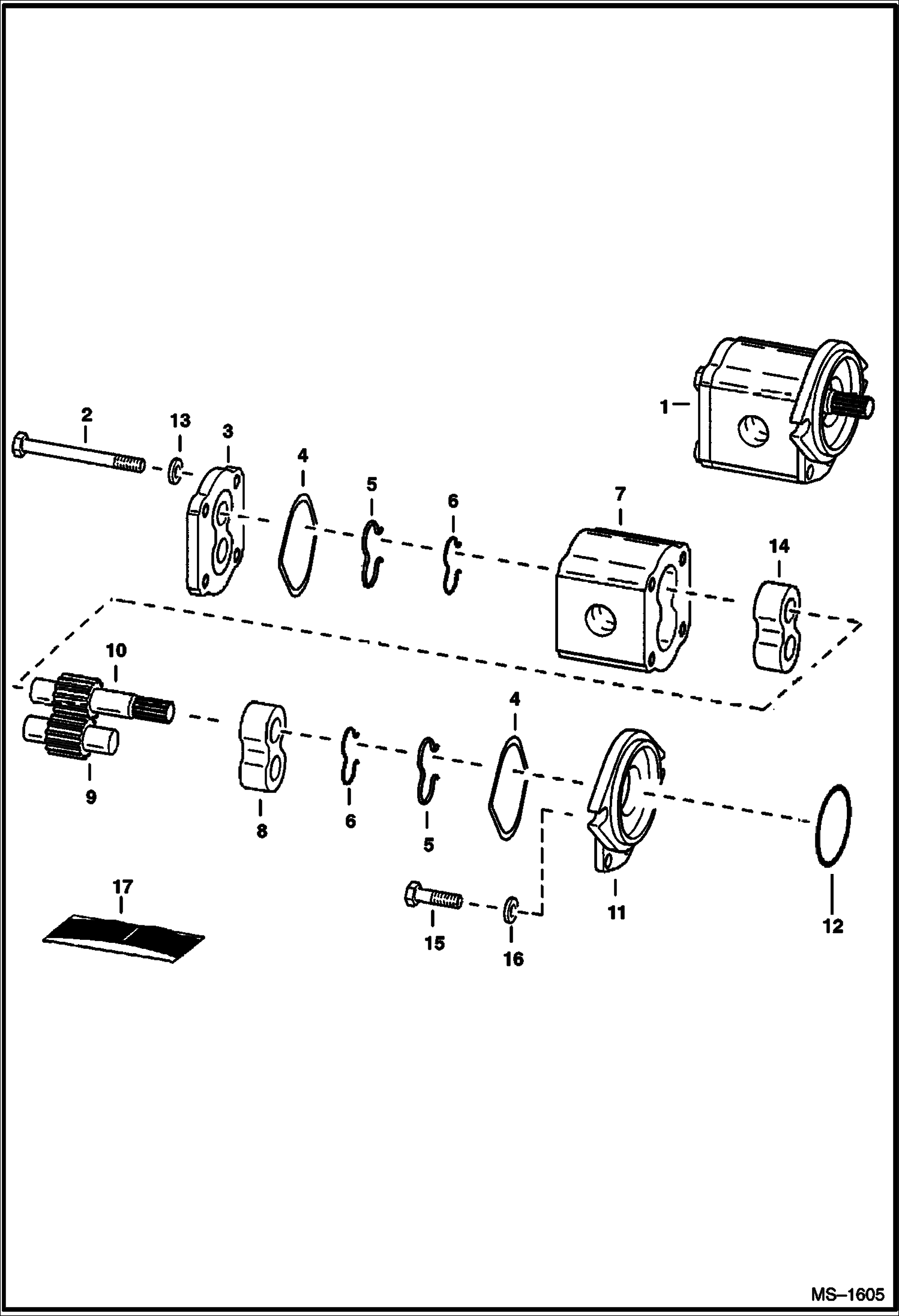

Запчасти Bobcat 800s GEAR PUMP (S/N 514146035, 514240999, 517911999 & Below) HYDROSTATIC SYSTEM

1

6673911

PUMP W/Ref. 2-14 - B5501-37255 - for model 4445060

2

BOLT NSS

3

COVER NLA - Was 6658123 - A

4

O-RING NSS - seal

5

SEAL NSS

6

RING NSS

7

BODY NSS

8

BEARING NSS

9

GEAR NSS - idler

10

GEAR NSS - drive

11

COVER NLA - Was 6658122 - A

12

6645080

O-RING Was 6660339 - B

13

WASHER NSS

14

BEARING NSS

15

6645088

BOLT

16

6518483

WASHER

17

6674371

SEAL KIT Ref. 4-6
