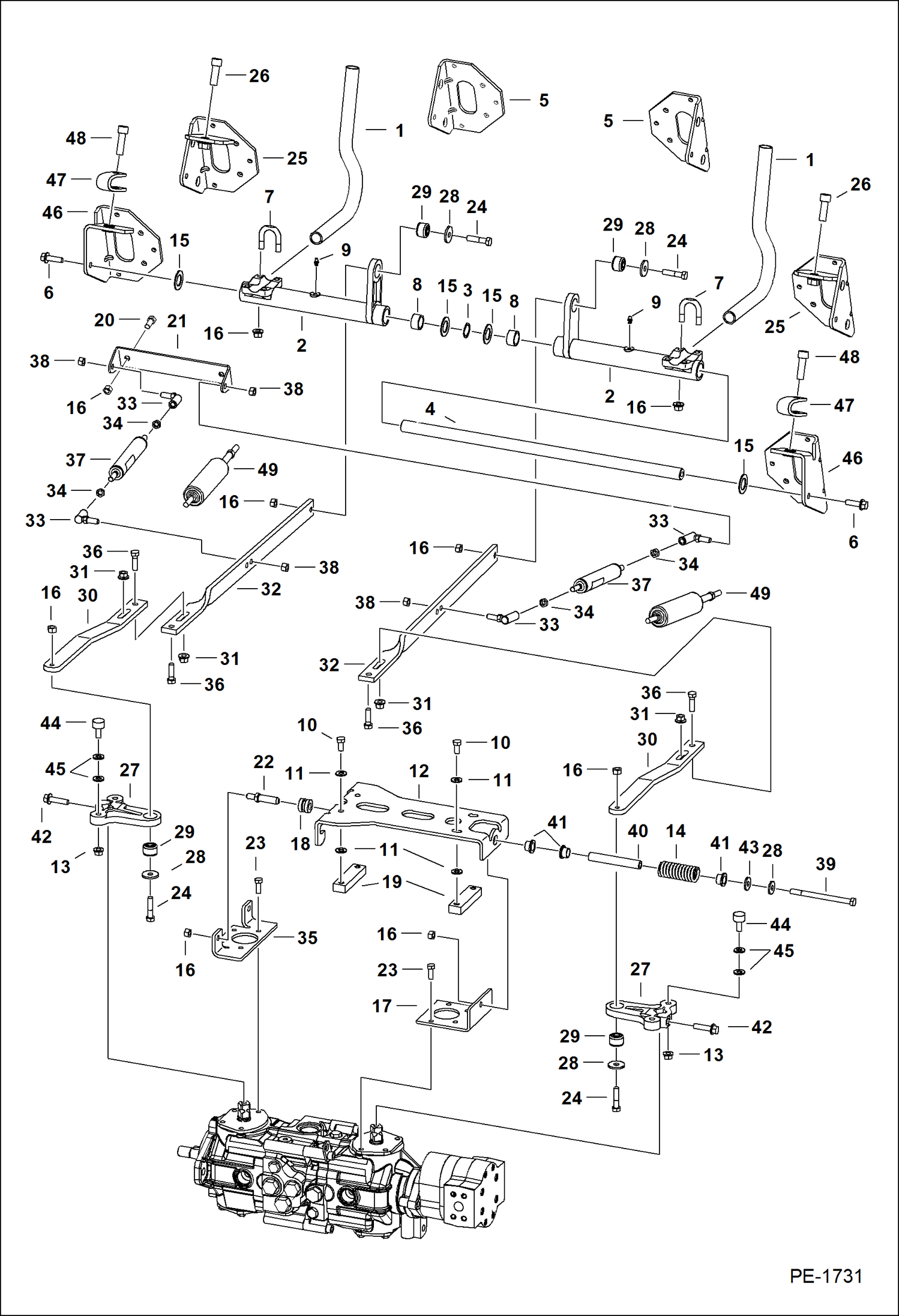

Запчасти Bobcat 800s HAND CONTROLS HYDROSTATIC SYSTEM

1

6702543

LEVER, STEERING

2

BELLCRANK NLA - .8725'' (22,2 mm) ID hole for Ref. 29 (6665701 bushing) - Use W/Ref. 8 (6673710 bearing) & Ref. 9 (6518200 grease zerk) - Order 7110571 bellcrank, Ref. 28 (619021 washer), Ref. 29 (667

2

BELLCRANK NLA - 1.04725'' (26,5 mm) ID hole for Ref. 29 (6678067 Bushing) - Use W/Ref. 8 (6673710 bearing) & Ref. 9 (6518200 grease zerk) - Order 7110571 bellcrank, Ref. 9 (10H35 grease zerk) & (2) of

2

BELLCRANK NLA - Use W/Ref. 8 (6673710 bearing) & Ref. 9 (10H35 grease zerk) - Order 7110571 bellcrank & (2) of Ref. 8 (6703879 bushing) - Was 7110572 - A

2

7110571

BELLCRANK, STEERING W/notch for Ref. 8 (6703879 bushing) - Use W/Ref. 9 (10H35 grease zerk)

3

6599741

WASHER wave

4

6716545

ROD

5

6577230

BRACKET L shaped - slotted holes for levers

6

45C620

BOLT

7

6732997

U-BOLT Was 6700768 - A

8

6673710

BEARING, NEEDLE Use W/Ref. 2 (NLA/ 6716977, NLA/ 7101048 & NLA/ 7110572 bellcranks)

8

6703879

BUSHING, PLASTIC W/tab - Use W/Ref. 2 (7110571 bellcrank)

9

6518200

FITTNG, GREASE 10 press fit - Use W/Ref. 2 (NLA/ 6716977 & NLA/ 7101048 bellcranks)

9

10H35

FITTING, GREASE 10 threaded - Use W/Ref. 2 (NLA/ 7110572 bellcrank & 7110571 bellcrank)

10

8C616

SCREW

11

6557831

WASHER

12

6716116

MOUNT

13

98D6

NUT

14

6701535

SPRING

15

6716916

WASHER

16

95D6

NUT

17

6576196

MOUNT

18

6706098

GUIDE

19

6702716

BLOCK

20

17C612

BOLT 5

21

6706106

MOUNT

22

6577058

PIN

23

1CM820

BOLT

24

17C626

BOLT

25

BRACKET NLA - RH - Order Ref . 46-48 - Was 6733022 - A

25

BRACKET NLA - LH - Order Ref. 46-48 - Was 6733024 - A

26

93G824

BOLT Was 73G824 - A

27

LEVER NLA - .8725 in. (22,2 mm) ID Hole For Ref. 29 (6665701 Bushing) - Order 6729956 LEVER, Ref. 28 (619021B Washer) & Ref. 29 (6678067 Bushing)

27

6729956

LEVER, PINTLE 1.0475 in. (26,5 mm) ID Hole for Ref. 29

28

6563914

WASHER 1.00'' (25,4mm) OD

28

619021

WASHER, 5 0.13'' thick - 32 mm (1.25'') OD

29

6665701

BUSHING, PRESS FIT neoprene - .885'' (22,5mm) OD

29

6685060

BUSHING, TORSION torsion - 26,8 mm (1.055'') OD - Was 6678067 - A

30

6713111

LINK

31

83D6

NUT 5

32

6714025

LINK

33

6599744

BALL JOINT

34

8D6

NUT 5

35

6706096

MOUNT

36

17C620

BOLT

37

GAS SPRING NLA - Japan Option - Order Ref. 49 - Was 6649551 - A

38

96D6

NUT

39

17C680

BOLT

40

6715164

SLEEVE, SPRING

41

6715163

BUSHING, PRESS FIT

42

35C624

BOLT

43

25E24

WASHER AHC

44

6673789

BEARING

45

25E17

WASHER 5

46

7128600

BRACKET RH

46

7128601

BRACKET LH

47

7121779

PAD

48

73G828

BOLT

49

7188108

GAS SPRING
