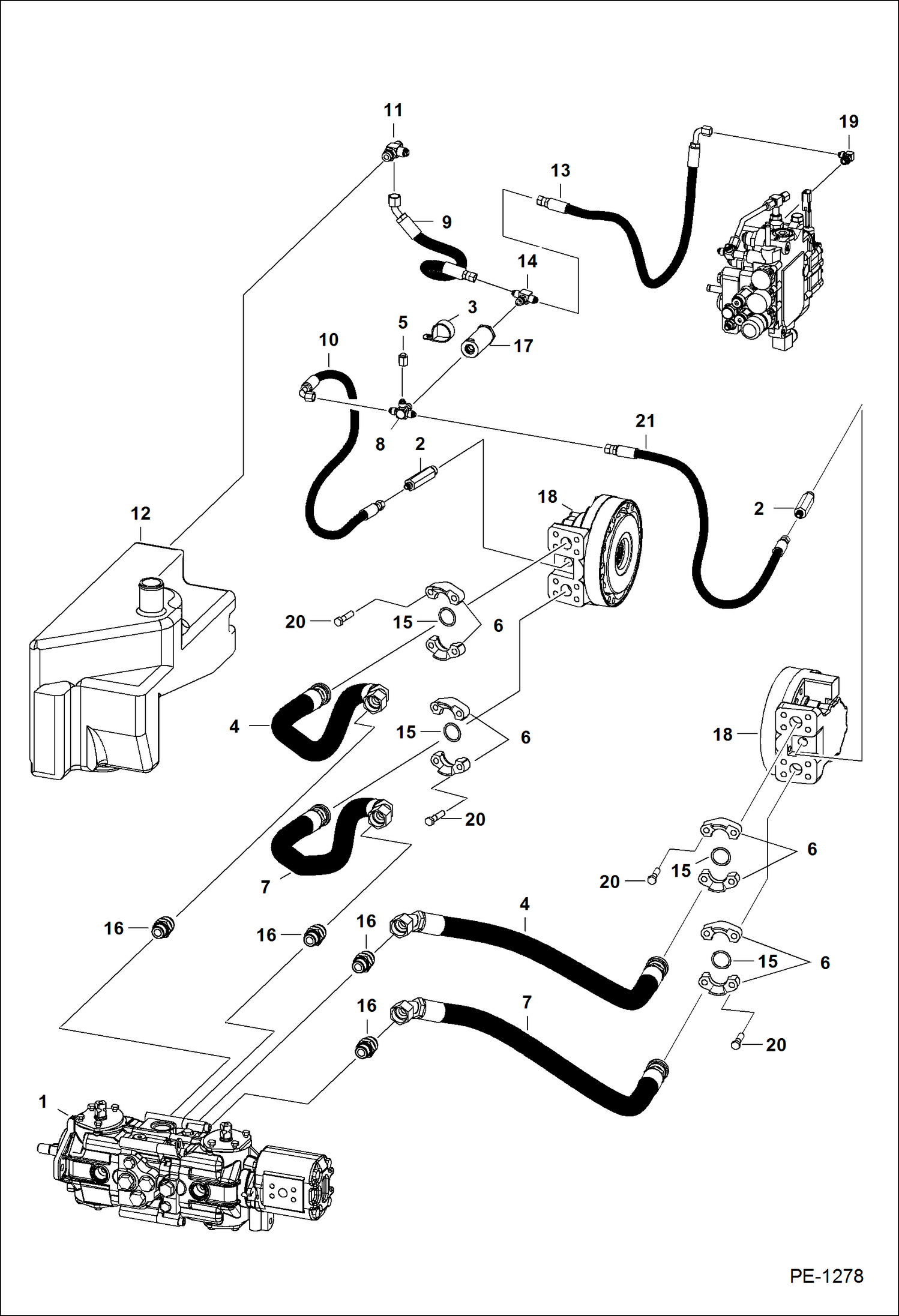

Запчасти Bobcat 800s HYDROSTATIC CIRCUITRY (W/Motors) (S/N 514147759, 514241034, 517912083 & Above) HYDROSTATIC SYSTEM

1

PUMP See Illustration HYDROSTATIC PUMP/ B25288 See Illustration HYDROSTATIC PUMP/ B17765A

2

6717306

ADAPTER W/Ref. 13 - tapered boss face

2

97K6

O RING flared end

2

99K6

O RING tapered boss face

3

30H79

CLAMP Was 30H-60 - B

4

6673939

HOSE mega seal

5

36K5

CAP

6

20J16

FLANGE

7

6673940

HOSE mega seal

8

6725497

CROSS W/Ref. 13 - tapered boss face

8

97K6

O RING flared end

8

99K6

O RING

9

6725439

HOSE

10

6725437

HOSE

11

21KB0808

FTG HYD STRAIGHT TEE W/Ref. 19 - tapered boss face - Was 21KV00006B - A

11

97K8

O-RING flared end

11

99K8

O-RING

12

6725423

TANK hydraulic

13

6640724

HOSE

14

19KB0606

TEE W/Ref. 13 - Was 19KV00005B - A

14

97K6

O RING flared end

15

55K219

O'RING

16

15KB1612

FITTING, HYD CONNECTOR

16

79K12

O RING 10

17

6661022

FILTER, OIL HYD IN-LINE See Illustration HYDROSTATIC OIL FILTER/ B13527 - 90 micron

18

MOTOR See Illustration HYDROSTATIC MOTOR/ B17125

19

17K5

ELBOW W/O O-ring

19

79K6

O RING 10

20

17C728

BOLT

21

6725438

HOSE
