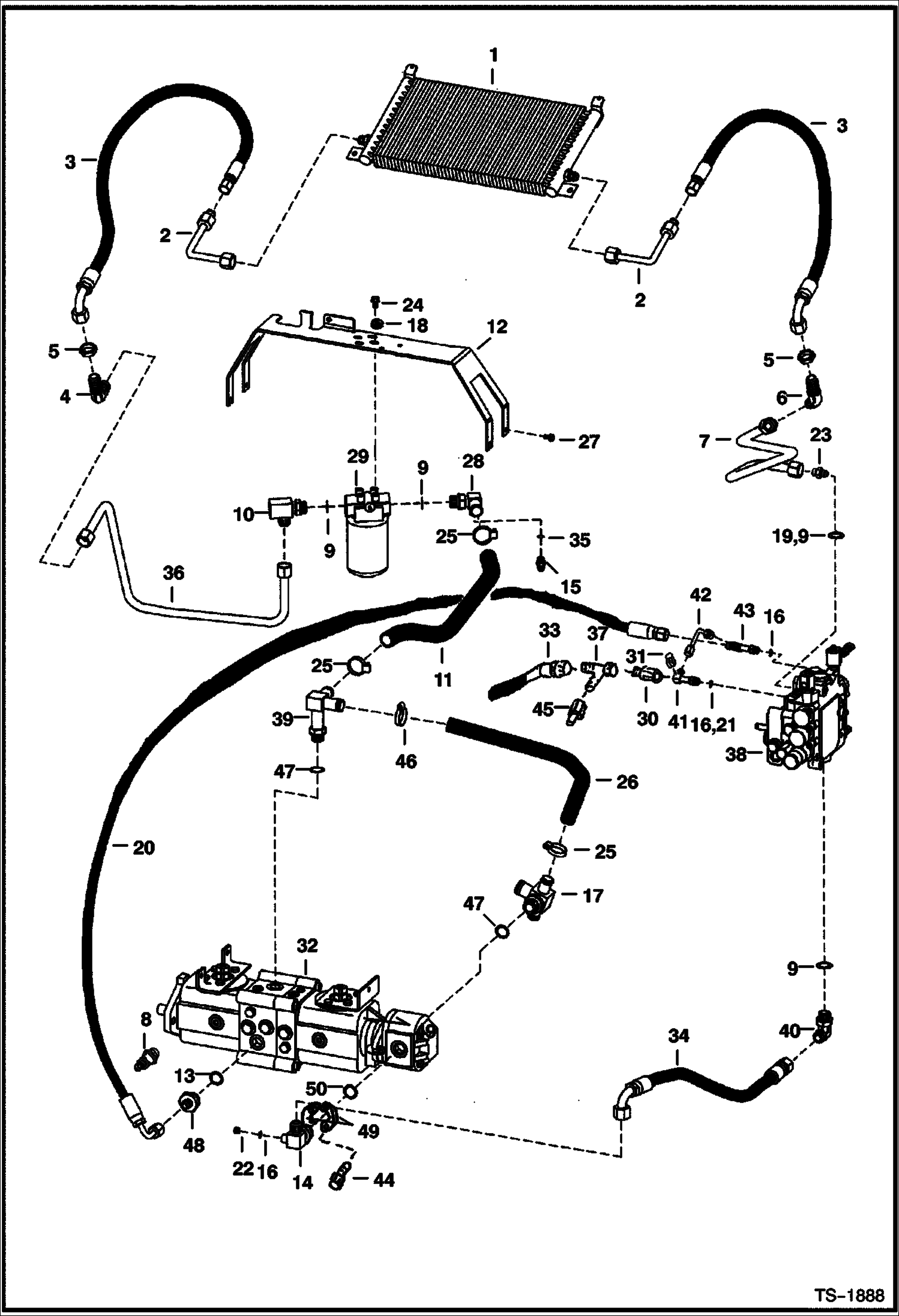

Запчасти Bobcat 800s HYDROSTATIC CIRCUITRY (W/Cooler) (S/N 514147758, 514241033, 517912082 & Below) HYDROSTATIC SYSTEM

1

6667896

EXCHANGER, OIL COOLER oil

2

11K8

ELBOW Was 11KN00008B - A

3

6531336

HOSE

4

88F8

FITTING 37 degree bulkhead - Was 88FN00008B - A

4

6725964

ELBOW 90 degree - long shaft W/ 1.0625-12UN-2A ends

4

97K12

O'RING flared end

5

86F8

NUT 5

6

46K8

ELBOW tapered boss face - Was 46KN00008B - A

6

97K12

O'RING flared end

7

6717227

TUBELINE

8

21KB0610

FITTING, HYD TEE Was 6717503 - A

9

99K12

O RING

10

6700599

ELBOW W/Ref. 9 - Was 6715714 - B,D

10

6706365

ADAPTER W/Ref. 9

11

6719319

HOSE

12

6719446

MOUNT

13

99K10

O'RING tapered boss face

13

79K10

O RING 10 flat Boss Face

14

7103953

TEE split flange - Was 6717662 - A

15

90KV5

PLUG W/Ref. 35 - Was 6630168 - B

16

99K6

O RING tapered boss face

16

79K6

O RING 10 flat boss face

17

6718882

TEE W/Ref. 47

17

6719378

TEE W/Ref. 47

17

97K6

O RING flared end

18

6E6

WASHER

19

79K12

O RING 10

20

6725090

HOSE Was 6717216 - A

21

79K6

O RING 10

22

24K5

PLUG for rear auxiliaries - tapered boss face - Was 24KN00005B - A

23

ADAPTER NLA - W/Ref. 9 - Was 15KN-8 - A

23

97K12

O'RING flared end

23

6812646

ADAPTER W/Ref. 59

24

35C610

BOLT 5

25

5HM35

HOSECLAMP constant tension

26

6716176

HOSE

27

84G3712

BOLT 5

28

6725032

ELBOW W/Ref. 25

28

97K6

O RING flared end

29

6661247

FILTER See Illustration HYDROSTATIC OIL FILTER/ C2818

29

6661248

FILTER, OIL HYD 12 #3 media - 152,4 mm (6'') long

29

6661334

FILTER ASSY See Illustration HYDROSTATIC OIL FILTER/ C2818

29

6661248

FILTER, OIL HYD 12 #3 media - 152,4 mm (6'') long

30

6672766

CHECK VALVE

31

36K5

CAP

32

PUMP See Illustration HYDROSTATIC PUMP/ B17765 See Illustration HYDROSTATIC PUMP/ B17765A See Illustration HYDROSTATIC PUMP/ B25288 See Illustration HYDROSTATIC PUMP/ D2427

33

79K20

O RING 10

33

6716391

HOSE auxiliary spool

34

6736649

HOSE, HYD ASSY Was 6729160 - A

35

95K6

O'RING tapered boss face

36

TUBELINE NLA - Order 6725973 & 6725964 elbow - Was 6719318 - A

36

6725973

TUBELINE Use W/ Ref. 4 (6725964 elbow)

37

6718660

TEE tapered boss face

37

97K6

O RING flared end

38

VALVE See Illustration HYDRAULIC CONTROL VALVE/ MS1602 - W/Ref. 41-43

39

6717186

CROSS W/Ref. 47

40

17KB1212

FITTING, HYD ELBOW W/Ref. 9 - tapered boss face - Order 6812141 - Was 17KV-8 - A

40

97K12

O'RING flared end

40

6812141

ELBOW W.Ref. 19

41

6812815

FITTING See Illustration HYDRAULIC CONTROL VALVE/ MS1602 - W/Ref. 16 - elbow - .5625 - 18UNF-2A - Was 6715188 - A

41

97K6

O RING flared end

41

6805243

TEE W/Ref. 21 - both ends .5625 - 18UNF-2A

42

6577690

TUBE See Illustration HYDRAULIC CONTROL VALVE/ MS1602

43

6804360

TEE See Illustration HYDRAULIC CONTROL VALVE/ MS1602 - W/Ref. 16

44

17C620

BOLT

45

6718948

SNUBBER W/Filter

45

FILTER NSS

46

5HM42

HOSECLAMP

47

99K16

O-RING

48

ADAPTER NLA - W/Ref. 13 - tapered boss face - Was 6717173 - A

48

97K6

O RING flared end

48

15KB0610

FITTING, HYD CONNECTOR W/Ref. 13 - flat boss face

49

19J12

CLAMP

50

58K214

O RING 10 nitrile

50

55K214

O-RING Viton/Fluorocarbon
