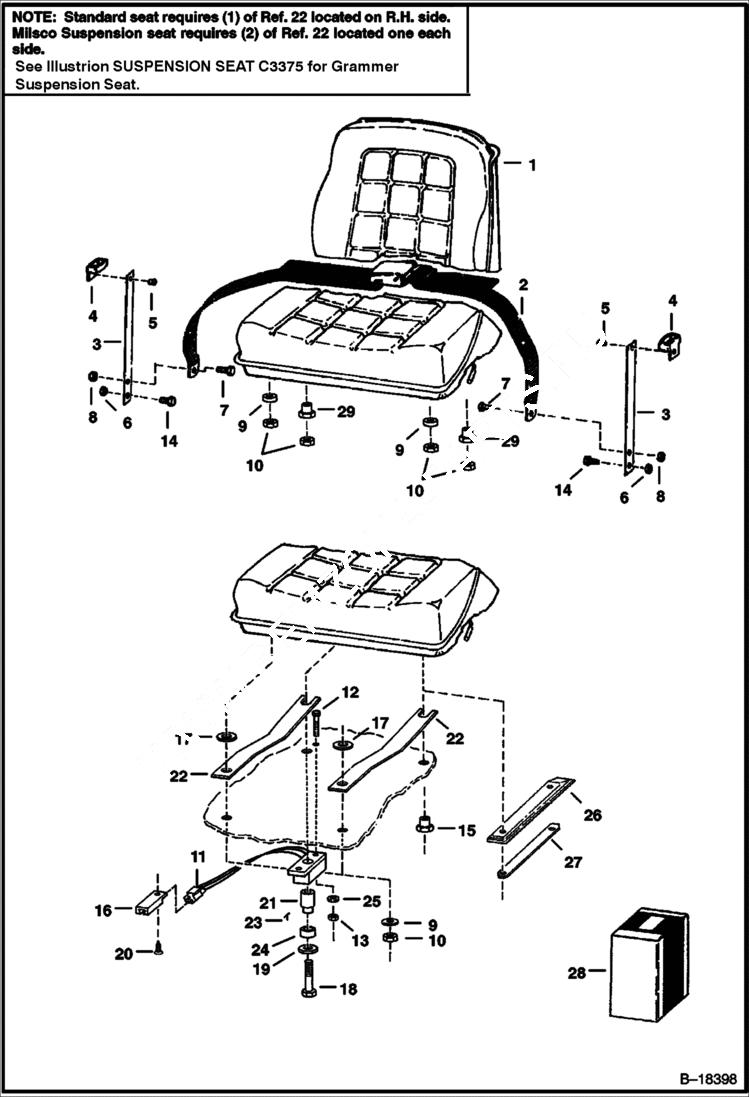

Запчасти Bobcat 800s SEAT MAIN FRAME

1

SEAT See Illustration SEAT/ B7185

2

SEAT BELT NLA - Order Ref. 28 - Was 6564774 - A

2

SEAT BELT NLA - Order 6675074 seat belt & (2) of Ref. 3 (6725373 spring plate) - Was 6667875 - A

2

SEAT BELT NLA - W/spring plates - Order 6675074 seat belt & (2) of Ref. 3 (6725373 spring plate) - Was 6725403 - A

2

6675074

SEAT BELT W/O spring plates

3

GUIDE ASSY. NLA - W/Ref. 4 & 5 - 13.75'' (349 mm) long - Use W/NLA 6564774 Seat belt - Was 6565354 - A

3

GUIDE ASSY. NLA - W/Ref. 4 & 5 - 12.25'' (311 mm) long - Use W/NLA 6667875 Seat belt - Order 6711908 spring plate, Ref. 4 & (2) Ref. 5 - Was 6711907 - A

3

6711908

SPRING PLATE Use W/Ref. 2 (NLA/6667875 seat belt)

3

6725373

SPRING PLATE Use W/Ref. 2 (6675074 seal belt)

4

GUIDE NLA - Order 6703703 - Was 6565355

5

6630207

RIVET 5

6

85D6

NUT, 5

7

17C716

BOLT

8

85D7

NUT

9

6701174

WASHER

10

61D5

NUT

10

59D5

NUT 5

11

7105252

SENSOR, SEAT BAR POSITION Also Order Ref. 23 - Was 6680430 - A

12

35C410

BOLT 5 fastens thru tab of Ref. 11

12

17C428

BOLT fastens thru body of Ref. 11 - Was 6710539 - A

13

83D4

NUT 10 fastens thru tab of Ref. 11

13

50D12

NUT fastens thru body of Ref. 11

14

17C612

BOLT 5

15

6707319

NUT spacer

16

6665000

CLIP

17

6706890

WASHER

18

17C508

BOLT

19

25E16

WSHR

20

6664221

RETAINER

21

BUSHING NLA - spacer - 1.775'' (45mm) long - Order 6710751 Bushing - Was 6706686 - A

21

6710751

BUSHING spacer - Was 6710571 - D

22

6706966

SPRING, SEAT plate - SEE NOTE

23

6680523

KEY,MAGNETIC magnet bushing - Was 6664881 - A

24

6680472

SENSOR tapered - magnetic - Was 6666608 - A

25

25E10

WASHER

26

6711729

COVER

27

6711730

STRIP

28

KIT NLA - seat belt - W/ Ref. 2 & 3 - Order Ref. 2 (6675074 seat belt) & (2) of Ref. 3 (6725373 spring plate) - Was 6713061 - A

29

6707318

GUIDE
