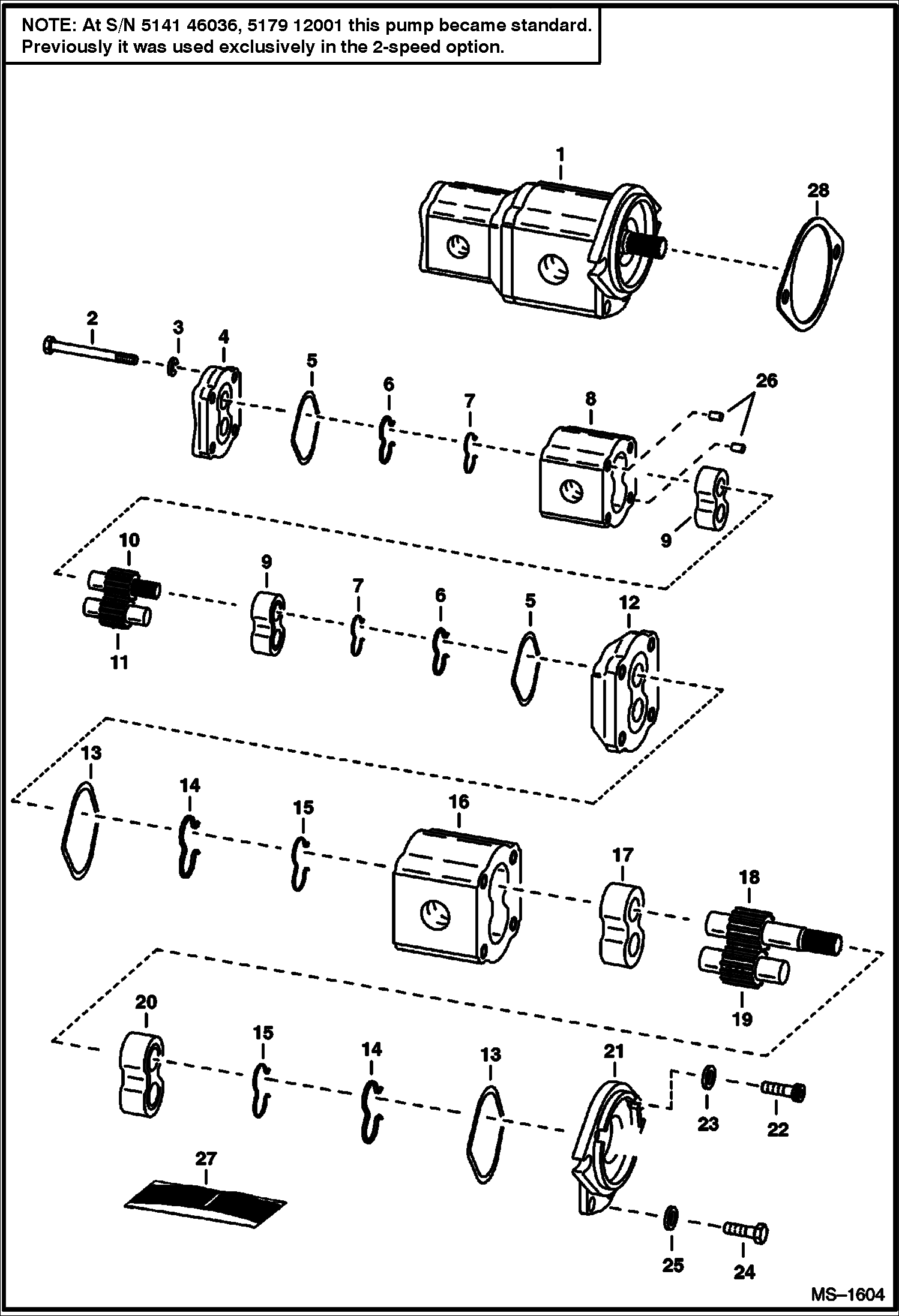

Запчасти Bobcat 800s HIGH HORSEPOWER HYDRAULICS (Aluminium) (Double Gear Pump) (S/N 514149136, 517912141 & Below) HIGH FLOW HYDRAULICS

1

6673913

PUMP B5501-37254 - Ref. 2-26 - for 4445061

1

6675661

PUMP B5501-38097 - Ref. 2-26 - for 4445067 - SEE NOTE

2

BOLT NSS

3

WASHER NSS

4

COVER NSS

5

O-RING NSS - seal

6

SEAL NSS

7

RING NSS

8

BODY NSS

9

BEARING NSS

10

GEAR NSS - drive

11

GEAR NSS

12

COVER NSS

13

O-RING NSS - seal

14

SEAL NSS

15

RING NSS

16

BODY NSS

17

BEARING NSS

18

GEAR NSS - drive

19

GEAR NSS - idler

20

BEARING NSS

21

COVER NSS

22

BOLT NSS

23

SEAL NSS

24

BOLT NSS

25

WASHER NSS

26

DOWEL NSS

27

SEAL KIT NLA - Ref. 5-7 & 13-15 - For B5501-37254 - Order 6678853 - Was 6674370 - A

27

6678853

SEAL KIT Ref. 5-7 & 13-15 - for B5501-38097

28

6660339

GASKET
