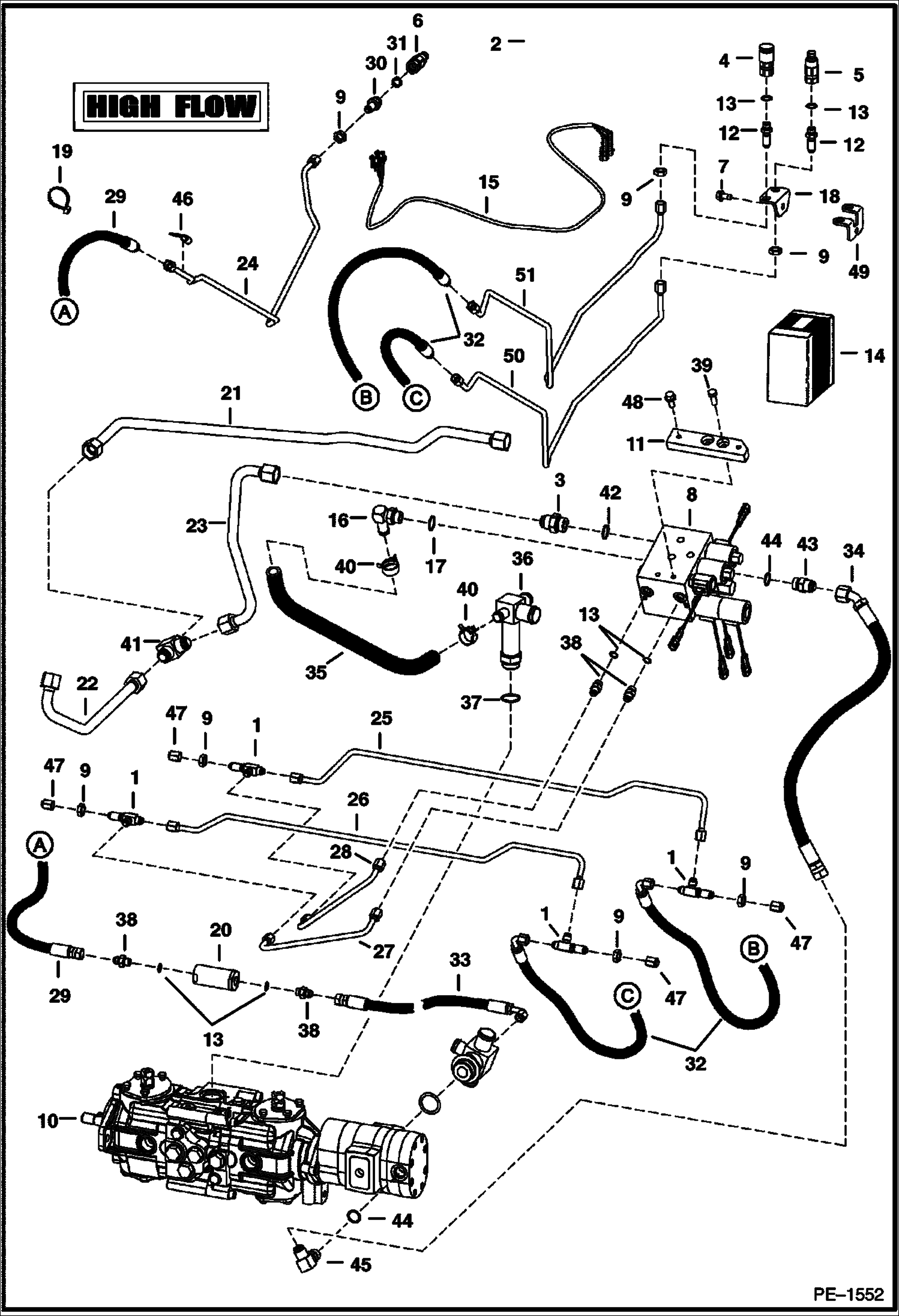

Запчасти Bobcat 800s HIGH FLOW HYDRAULICS HIGH FLOW HYDRAULICS

1

TEE NLA - W/Flared end O-ring - Was 6719298 - A

1

97K6

O RING flared end

1

91K5

TEE W/O Flared end O-ring

2

59D8

NUT 5

3

6659459

CHECK VALVE W/Ref. 42

4

6667803

COUPLER, FF FEMALE

5

6667804

COUPLER, FF MALE

6

6667806

COUPLER male - Used for RH aux

7

84G3712

BOLT 5

8

6669203

VALVE See Illustration HIGH HORSEPOWER HYDRAULICS/ TS1434R - select

9

86F5

NUT

10

PUMP See Illustration HYDROSTATIC PUMP/ B17765 See Illustration HYDROSTATIC PUMP/ B25288 See Illustration HYDROSTATIC PUMP/ B17765A See Illustration HYDROSTATIC PUMP/ D2427

11

6705471

MOUNT valve

12

6716089

CONNECTOR bulkhead - W/Ref. 13

12

97K6

O RING flared end

13

99K6

O RING tapered boss face

14

6727739

KIT See Illustration ELECTRICAL CONTROLS KIT/ TS1955 - Attachment Controls - Was 6719431 - A

15

6718645

HARNESS

16

6717885

ELBOW W/Ref. 17

17

79K10

O RING 10

18

6725959

BRACKET L shaped - tubeline mount for aux couplers

19

6610510

TIE

20

6661022

FILTER, OIL HYD IN-LINE

21

6718384

TUBELINE

22

6718385

TUBELINE

23

6718386

TUBELINE

24

6718436

TUBELINE Use W/ RH aux

25

6718552

TUBELINE

26

6718553

TUBELINE

27

6718554

TUBELINE

28

6718555

TUBELINE

29

6725435

HOSE 93.5'' (2,374,9 mm) long

30

6726479

ADAPTER bulkhead - W/Ref. 31 - Was 6711628 - A

30

97K6

O RING flared end

31

99K8

O-RING tapered boss face

32

6718853

HOSE

33

6737648

HOSE 33.5'' (850,9 mm) long - Was 6725436 - A

34

6718856

HOSE

35

6718857

HOSE

36

6719133

TEE W/Ref. 37

37

97K16

O-RING

38

15KB0606

FITTING, HYD CONNECTOR W/Ref. 13

38

97K6

O RING flared end

39

17C616

BOLT 5

40

5HM29

HOSECLAMP Was 5HM00027B - A

41

10K8

TEE W/Ref. 42 - Was 10KN00008B - A

41

97K12

O'RING flared end

42

99K12

O RING tapered boss face

43

15KB1010

FITTING, HYD CONNECTOR W/Ref. 44 - Was 15KN00007B - A

43

97K10

O-RING 10 flared end

44

99K10

O'RING tapered boss face

45

17KB1010

FITTING, HYD ELBOW W/Ref. 44 - Was 17KV-7 - A

45

97K10

O-RING 10 flared end

46

30H62

CLIP insulated

47

36K5

CAP

48

35C614

BOLT

49

6718511

BRACKET L shaped - split tubeline mounts

50

TUBELINE NLA - Order 6725962 tubeline, 6725963 tubeline & Ref. 18 bracket - Was 6718480 - A

50

6725962

TUBELINE Use W/Ref. 18

51

TUBELINE NLA - Order 6725963 tubeline, 6725962 tubeline & Ref. 18 bracket - Was 6718481 - A

51

6725963

TUBELINE Use W/Ref. 18
