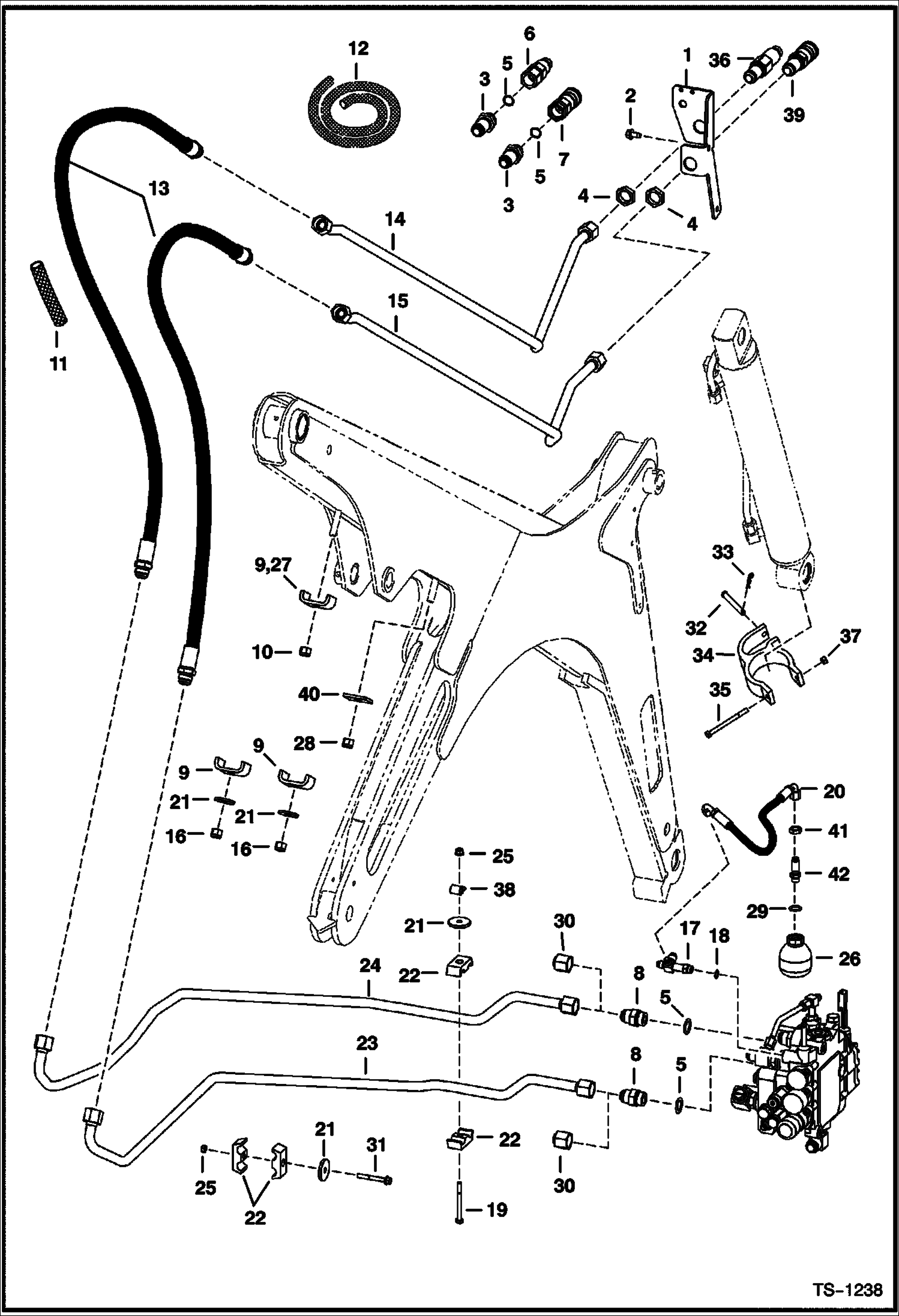

Запчасти Bobcat 800s AUXILIARY HYDRAULICS HYDRAULIC SYSTEM

1

6716808

BRACKET

2

84G3712

BOLT 5

3

ADAPTER NLA - W/Ref. 5 - tapered boss face - Was 6716090 - A

3

97K12

O'RING flared end

3

6812823

ADAPTER W/Ref. 5 - flat boss face

4

86F8

NUT 5

5

99K12

O RING tapered boss face

5

79K12

O RING 10 flat boss face

6

COUPLER NLA - male - Order Ref. 36 - Was 6667808 - B

6

6679841

SEAL Was 6672026 - A

7

COUPLER NLA - female - Order Ref. 39 - Was 6672960 - B

8

15KB1212

FITTING, HYD CONNECTOR W/Ref. 5 - tapered boss face - Was 15KN00008B - A

8

97K12

O'RING flared end

9

6718754

CLAMP Was 6502203 - A

10

95D6

NUT .375

10

95D8

NUT .50

11

SHIELD NLA - 70.75'' (1797,1 mm) long - Order Ref. 12

12

6651436

HOSE COVER bulk - 2.38'' (60,5 mm) ID - Sold Per Foot

13

6729163

HOSE Was 6718855 - A

14

6718056

TUBELINE

15

6718057

TUBELINE

16

95D6

NUT

17

6727931

TEE W/Ref. 18

18

99K6

O RING tapered boss face

19

17C552

BOLT

20

6727971

HOSE Use W/Ref. 17 & 26

21

872229

WASHER

22

6592506

CLAMP

23

6718687

TUBELINE

24

6718688

TUBELINE

25

85D5

NUT 5

26

6676923

ACCUMULATOR Use W/Ref. 42

27

6800262

CLAMP

27

6800262

CLAMP

28

59D8

NUT 5

29

99K6

O RING tapered boss face

30

36K8

CAP

31

35C540

BOLT

32

6541981

PIN clevis

33

1306637

CLIP

34

6731008

CLAMP Was 6713937 - A

35

17C560

BOLT

36

6676445

COUPLER male

36

6679841

SEAL Was 6672026 - A

37

95D5

NUT

38

30H31

CLAMP 10

39

6676447

COUPLER female

40

6553709

WASHER

41

86F5

NUT Use W/Ref. 42

42

6716089

CONNECTOR W/Ref. 43

42

97K6

O RING flared end
