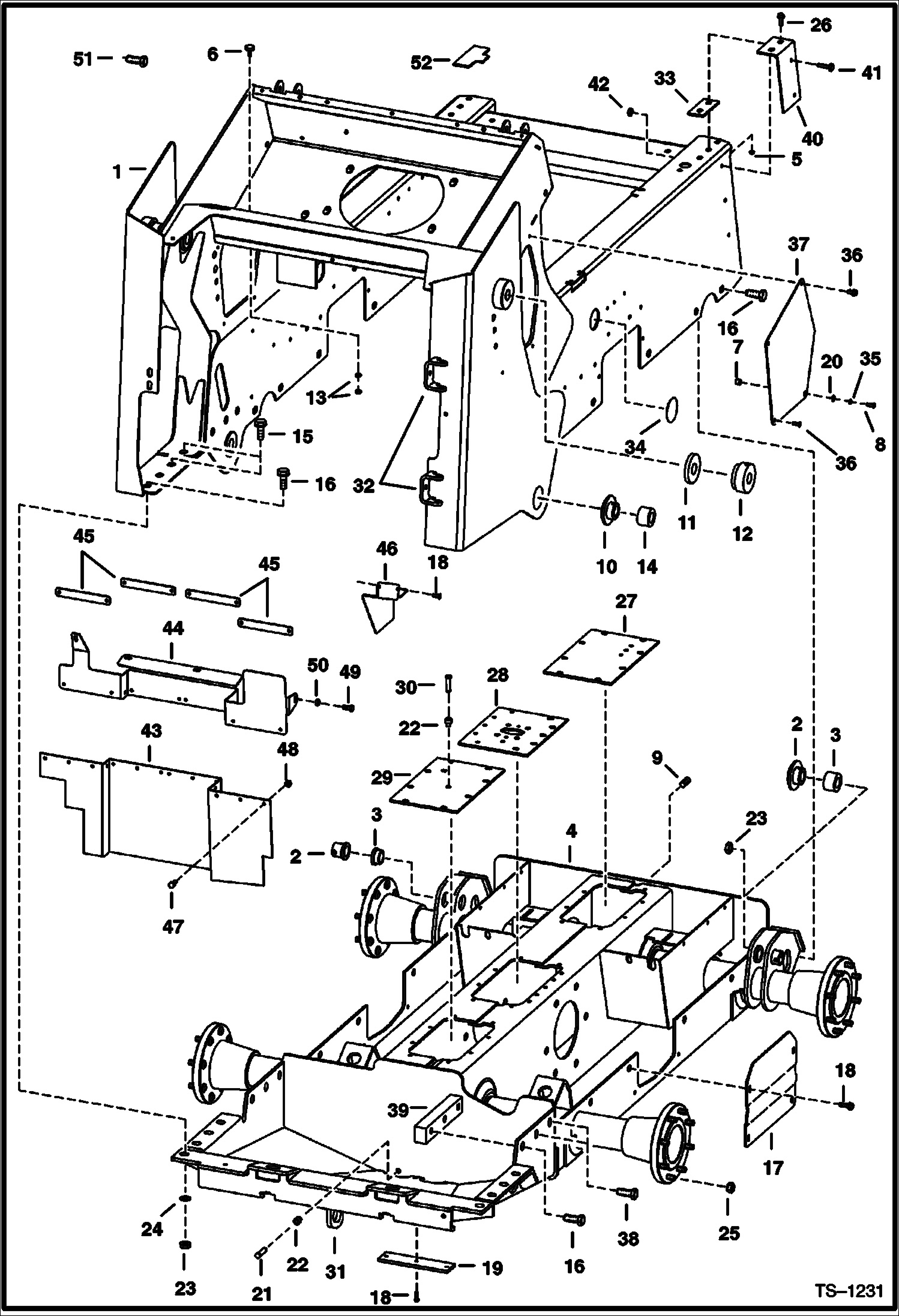

Запчасти Bobcat 800s MAIN FRAME MAIN FRAME

1

MAIN FRAME NLA - Order 6728479 - Was 6706022 - A

1

MAIN FRAME NLA - Order 6728479 - Was 6714259 - A

1

6728479

MAIN FRAME Was 6716534 - A

2

6703616

BUSHING weld-on

2

6716532

BUSHING weld-on

3

6705995

BUSHING weld-on

3

6716533

BUSHING weld-on

4

CHAINCASE See Illustration DRIVE TRAIN/ TS1257 - frame only

5

83D8

NUT 5

6

6655399

BUMPER

7

97D5

NUT

8

25G514

BOLT

9

6731121

PLUG chaincase fill - Was 11F000012B - A

10

6706712

BUSHING inside upright weld-on

11

6706710

BUSHING inside upright weld-on

11

6706710

BUSHING

11

6709856

BUSHING inside upright weld-on

11

6709856

BUSHING

12

6706709

BUSHING outside upright weld-on

13

61D5

NUT

14

6706711

BUSHING outside upright weld-on

14

6706711

BUSHING

14

6709857

BUSHING outside upright weld-on

14

6709857

BUSHING

15

31C1236

BOLT

16

31C1228

BOLT

17

6706808

COVER 12.80'' (325,1 mm) hole pattern

17

6719201

COVER 13.80'' (350,5 mm) hole pattern

18

84G3712

BOLT 5

18

84G3712

BOLT 5

19

6700182

COVER, DRAIN

20

25E15

WASHER

21

6599645

PLUG, STEEL chaincase drain

22

6553411

BUSHING

23

83D12

NUT

24

6701097

WASHER

25

6564669

NUT, 10 See Illustration AXLE/ C3270 - wheel

26

35C824

BOLT W/metal guide

26

BOLT NLA - Order 31C832 bolt - Use W/plastic guide - Was 35C832 - A

27

COVER See Illustration DISC BRAKE/ MS1462

28

COVER See Illustration DISC BRAKE/ MS1462

29

6700330

COVER See Illustration DISC BRAKE/ MS1462

30

6680970

BREATHER See Illustration DISC BRAKE/ MS1462 - Was 6670627 - A

31

6706485

HOOK tie down - weld-on

32

6708987

HINGE, WELD-ON Was 6577394 - B,D

33

6709900

SPACER guide - W/metal guide

33

6709900

SPACER guide - W/plastic guide - Was 6909900 - D

34

6718796

PLUG Was 6660646 - A

35

6564535

SPACER

36

84G3112

BOLT 5

37

6706730

COVER

38

17C1228

BOLT

39

6706857

BLOCK threaded

40

GUIDE NLA - plastic - Order (2) of 6709950 guide - Also Order (4) of 35C824 bolt and (4) of 17C516 bolt - Was 6718512 - A

40

6709950

GUIDE metal

41

17C516

BOLT for metal guide -

41

53C516

BOLT for plastic guide

42

83D5

NUT 5

43

6715275

SHIELD exhaust, rubber

44

6715274

BRACKET shield

45

6715270

CLAMP shield

46

6715276

SHIELD hose

47

17C412

BOLT 5

48

83D4

NUT 10

49

17C616

BOLT 5

50

97D6

NUT 10

51

35C616

BOLT 5

52

6707515

BRACE weld-on
