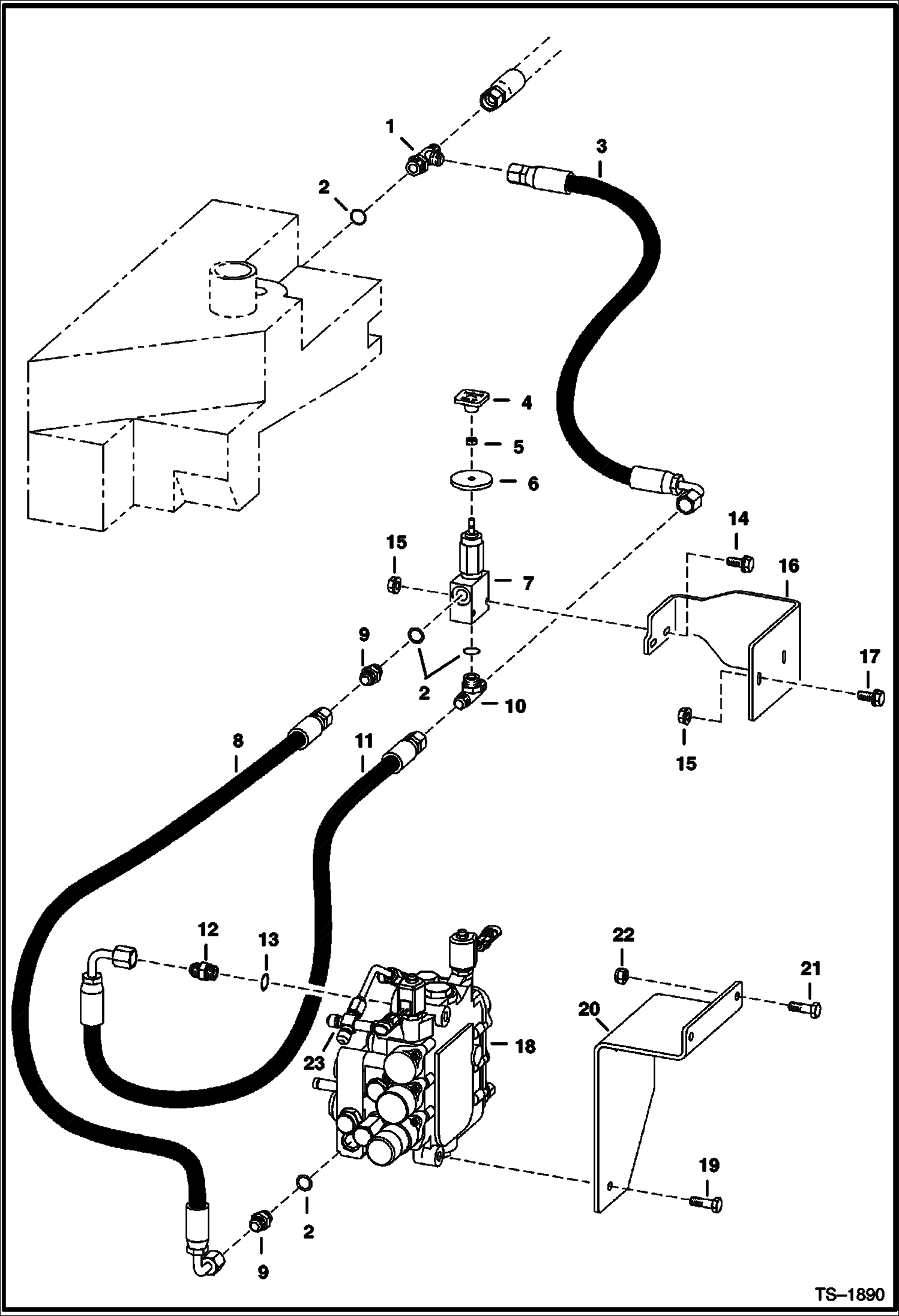

Запчасти Bobcat 800s LIFT & TILT CONTROL CIRCUITRY (S/N 514147758, 514241033, 517912082 & Below) HYDRAULIC SYSTEM

1

21KB0606

FTG HYD STRAIGHT TEE W/Ref. 2 - Was 21KV00005B - A

1

97K6

O RING flared end

2

99K6

O RING

3

6716337

HOSE Was 6716123 - A

4

6737524

KNOB red square - Was 6668913 - A

5

7D4

NUT

6

6707101

SEAL neoprene

7

7230495

VALVE, LIFT MANUAL See Illustration MANUAL LIFT RELEASE VALVE/ PE1547 - manual lift release - Was 6667844 - A

8

6716124

HOSE

9

15KB0606

FITTING, HYD CONNECTOR W/Ref. 2

9

97K6

O RING flared end

10

19KB0606

TEE W/Ref. 2 - 37 degree flare straight thread branch tee - Was 19KN00005B - A

11

6533363

HOSE 22.55'' (572,7 mm) long

12

90K8

PLUG W/Ref. 13 - Was 90KV00008B - A

12

97K12

O'RING flared end

13

95K12

O-RING Was 99K000012B - B

14

17C428

BOLT

15

83D4

NUT 10

16

6719936

BRACKET Was 6714840 - A

17

35C416

BOLT

18

VALVE See Illustration HYDRAULIC CONTROL VALVE/ MS1603 See Illustration HYDRAULIC CONTROL VALVE/ MS1602 - control

19

6717378

BOLT

20

6735728

MOUNT Was 6727751 - A

21

35C616

BOLT 5

22

85D6

NUT, 5

23

36K5

CAP
