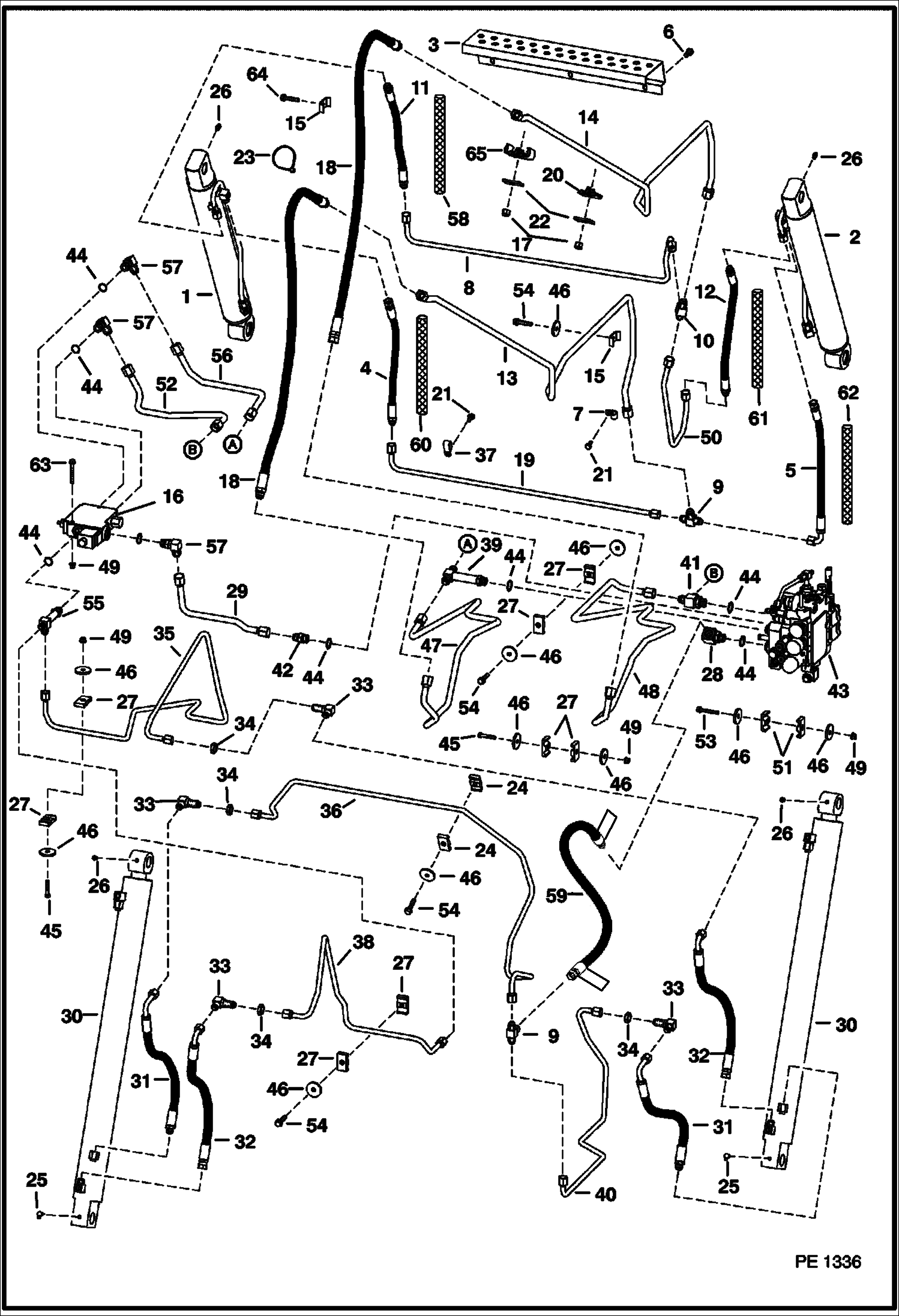

Запчасти Bobcat 800s HYDRAULIC CIRCUITRY (W/ Bucket Positioning Valve) (S/N 514147759, 514241034, 517912083 & Above) HYDRAULIC SYSTEM

1

CYLINDER See Illustration TILT CYLINDER/ PE1550 - LH tilt

2

CYLINDER See Illustration TILT CYLINDER/ PE1549 - RH tilt

3

6710491

SHIELD boom step

4

6711811

HOSE

5

6710642

HOSE

6

84G3712

BOLT 5

7

30H30

CLAMP

8

6718352

TUBE

9

6716061

TEE

9

97K8

O-RING flared end

9

97K10

O-RING 10 flared end

10

6569146

TEE

11

6718817

HOSE

12

6718818

HOSE

13

6718476

TUBELINE

14

6718477

TUBELINE

15

6502203

CLAMP

16

VALVE See Illustration BUCKET POSITIONING VALVE/ MS1943 - BPV

17

59D8

NUT 5

18

6718854

HOSE

19

6710629

TUBE

20

6728023

CLAMP

21

84G3112

BOLT 5

22

6553709

WASHER rectangular

23

6624289

STRAP, TIE

24

6701892

CLAMP

25

12H15

FITTING, GREASE 5

26

10H25

FITTING, GREASE 5

27

6729605

CLAMP

28

ELBOW NLA - W/Ref. 44 - tapered boss face - Was 6729357 - A

28

7109623

ELBOW W/Ref. 44 - flat boss face - Was 6817335 - A

29

6728176

TUBELINE

30

CYLINDER See Illustration LIFT CYLINDER/ TS1235 - lift

31

6728803

HOSE

32

6728804

HOSE

33

88F6

ELBOW Was 88FN6 - A

33

97K8

O-RING flared end

34

86F6

NUT

35

6728171

TUBELINE

36

6729813

TUBELINE lift

37

31H27

CLIP Was 31H-26 - B

38

6728167

TUBELINE

39

6715294

TEE W/Ref. 44

39

97K10

O-RING 10 flared end

40

6729814

TUBELINE lift

41

21KB1010

FITTING, HYD TEE W/Ref. 44 - Was 21KN00007B - A

42

15KB1010

FITTING, HYD CONNECTOR W/Ref. 44 - tapered boss face - Was 15KV00007B - A

42

97K10

O-RING 10 flared end

43

VALVE See Illustration HYDRAULIC CONTROL VALVE/ MS1603 See Illustration HYDRAULIC CONTROL VALVE/ MS1602

44

99K10

O'RING tapered boss face

44

79K10

O RING 10 flat Boss Face

45

17C528

BOLT

46

872229

WASHER

47

6728174

TUBELINE

48

6728175

TUBELINE

49

83D5

NUT 5

50

6718475

TUBELINE

51

6701893

CLAMP

52

6728178

TUBELINE

53

35C536

BOLT

54

84G3728

BOLT

55

6729490

TEE W/Ref. 44 - tapered boss face

56

6728177

TUBELINE

57

17KB1010

FITTING, HYD ELBOW

57

97K10

O-RING 10 flared end

57

99K10

O'RING boss face

58

SHIELD NLA - Order Ref. 11

59

6729604

HOSE W/Ref. 44 - available only as an assembly W/two danger decals installed

59

6809511

DECAL, DANGER

60

SHIELD NLA - Order Ref. 4

61

SHIELD NLA - Order Ref. 12

62

SHIELD NLA - Order Ref. 5

63

17C540

BOLT

64

84G3724

BOLT

65

6717933

CLAMP
