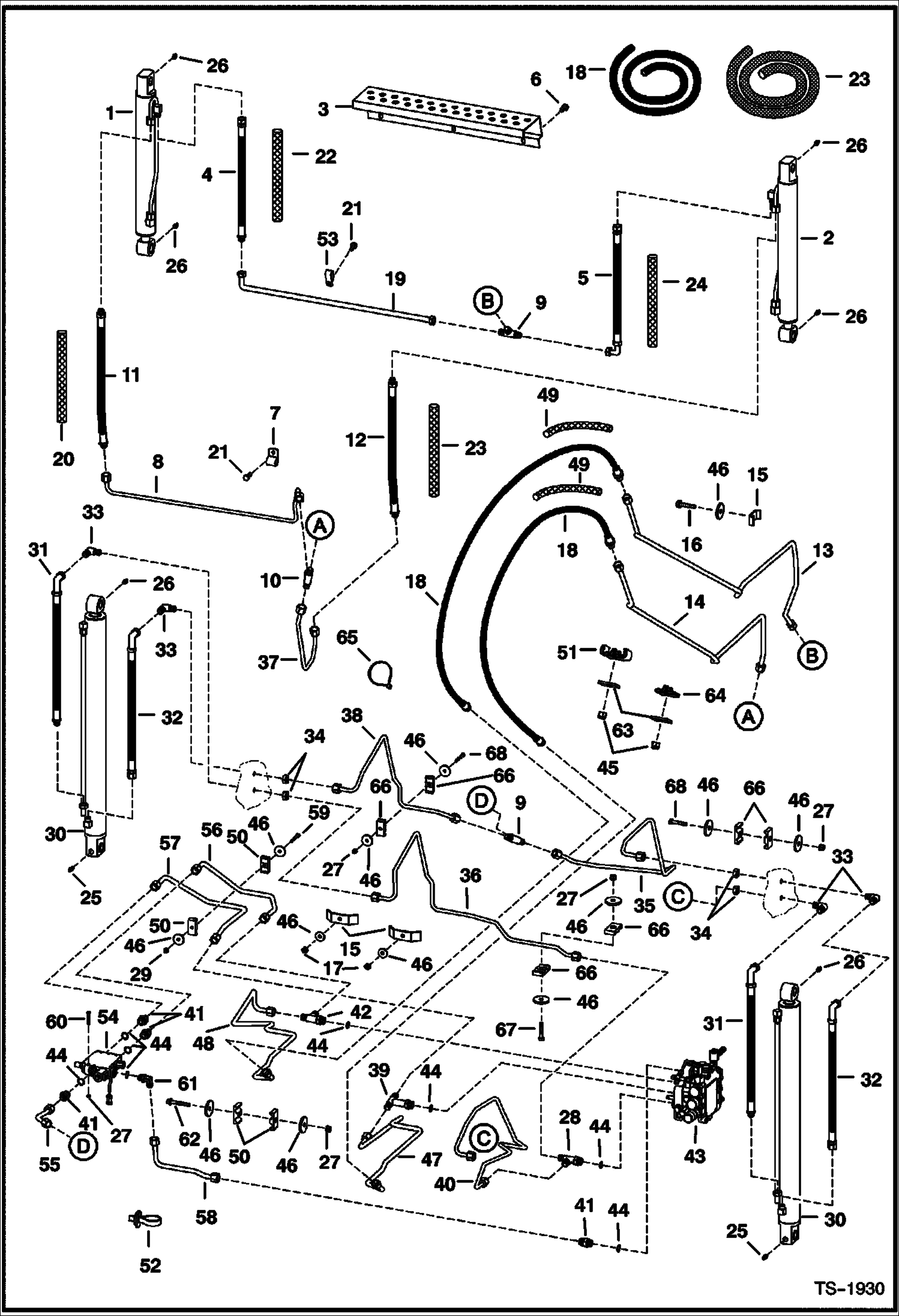

Запчасти Bobcat 800s HYDRAULIC CIRCUITRY (W/ Bucket Positioning Valve) (S/N 514147758, 514241033, 517912082 & Below) HYDRAULIC SYSTEM

1

CYLINDER See Illustration TILT CYLINDER/ PE1550 - LH tilt

2

CYLINDER See Illustration TILT CYLINDER/ PE1549 - RH tilt

3

6710491

SHIELD boom step

4

6711811

HOSE

5

6710642

HOSE

6

84G3712

BOLT 5

7

30H30

CLAMP

8

6718352

TUBE

9

6716061

TEE

9

97K8

O-RING flared end

9

97K10

O-RING 10 flared end

10

6569146

TEE

11

6718817

HOSE

12

6718818

HOSE

13

6718476

TUBELINE

14

6718477

TUBELINE

15

6502203

CLAMP

16

84G3728

BOLT

17

95D6

NUT

18

6718854

HOSE

19

6710629

TUBE

20

SHIELD NLA - Order Ref. 11

21

84G3112

BOLT 5

22

SHIELD NLA - Order Ref. 4

23

SHIELD NLA - Order Ref. 12

24

SHIELD NLA - Order Ref. 5

25

12H15

FITTING, GREASE 5

26

10H25

FITTING, GREASE 5

27

83D5

NUT 5

28

TEE NLA - W/Ref. 44 - tapered boss face - Was 6715187 - A

28

21KB0810

FITTING, HYD TEE W/Ref. 44 - flat boss face

29

85D6

NUT, 5

30

CYLINDER See Illustration LIFT CYLINDER/ TS1235 - lift

31

6708922

HOSE

32

6708923

HOSE

33

88F6

ELBOW Was 88FN6 - A

33

97K8

O-RING flared end

34

86F6

NUT

35

6719537

TUBELINE

36

6719540

TUBELINE

37

6718475

TUBELINE

38

6719539

TUBELINE

39

6715294

TEE W/Ref. 44

39

97K10

O-RING 10 flared end

40

6719538

TUBELINE

41

15KB1010

FITTING, HYD CONNECTOR W/Ref. 44 - tapered boss face - Was 15KV00007B - A

41

15KB1010

FITTING, HYD CONNECTOR W/Ref. 44 - tapered boss face - Was 15KV00007B - A

41

97K10

O-RING 10 flared end

42

21KB1010

FITTING, HYD TEE W/Ref. 44 - Was 21KN00007B - A

43

VALVE See Illustration HYDRAULIC CONTROL VALVE/ MS1603 See Illustration HYDRAULIC CONTROL VALVE/ MS1602

44

99K10

O'RING tapered boss face

44

79K10

O RING 10 flat boss face

45

59D8

NUT 5

46

872229

WASHER

46

872229

WASHER

47

6718693

TUBELINE

48

6718694

TUBELINE

49

SHIELD NLA - Order Ref. 18

50

6701893

CLAMP

51

6717933

CLAMP

52

6675734

STRAP, TIE button head

53

31H27

CLIP Was 31H-26 - B

54

VALVE See Illustration BUCKET POSITIONING VALVE/ MS1943 - BPV

55

6715076

TUBELINE

56

6715077

TUBELINE

56

6725953

TUBELINE

56

6717933

CLAMP

57

6715078

TUBELINE

57

6725954

TUBELINE

58

6715281

TUBELINE

59

17C632

BOLT 5

60

35C540

BOLT

61

17KB1010

FITTING, HYD ELBOW Was 17KV-7 - A

61

17KB1010

FITTING, HYD ELBOW Was 17KV-7 - A

61

97K10

O-RING 10 flared end

62

35C536

BOLT

63

6553709

WASHER rectangular

64

6728023

CLAMP

65

6624289

STRAP, TIE

66

6701892

CLAMP

67

17C532

BOLT 5

68

35C528

SCREW
