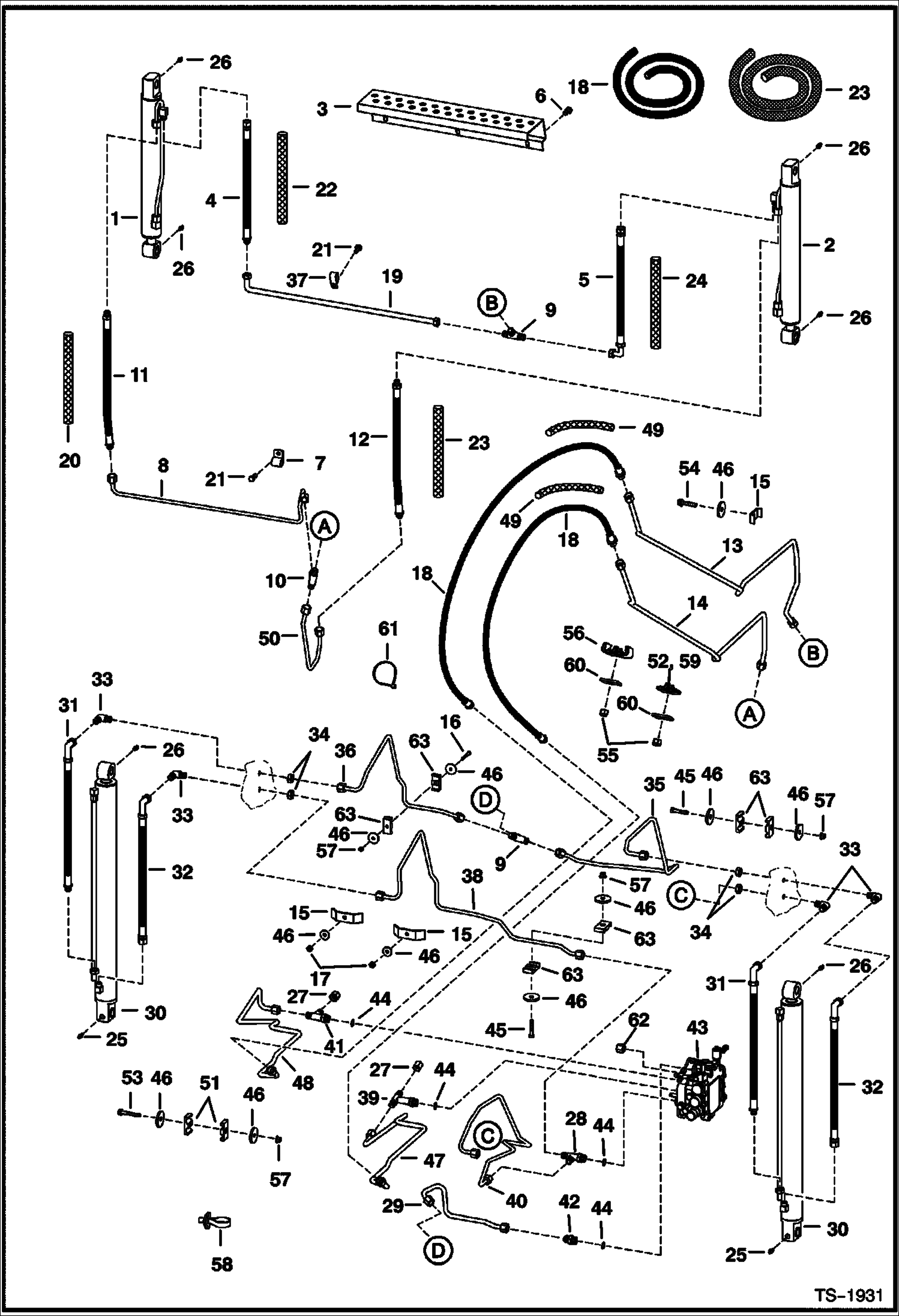

Запчасти Bobcat 800s HYDRAULIC CIRCUITRY (W/O Bucket Positioning Valve) (S/N 514147758, 514241033, 517912082 & Below) HYDRAULIC SYSTEM

1

CYLINDER See Illustration TILT CYLINDER/ PE1550 - LH tilt

2

CYLINDER See Illustration TILT CYLINDER/ PE1549 - RH tilt

3

6710491

SHIELD boom step

4

6711811

HOSE

5

6710642

HOSE

6

84G3712

BOLT 5

7

30H30

CLAMP

8

6718352

TUBE

9

6716061

TEE

9

97K8

O-RING flared end

9

97K10

O-RING 10 flared end

10

6569146

TEE

11

6718817

HOSE

12

6718818

HOSE

13

6718476

TUBELINE

14

6718477

TUBELINE

15

6502203

CLAMP

16

17C532

BOLT 5

17

95D6

NUT

18

6718854

HOSE

19

6710629

TUBE

20

SHIELD NLA - Order Ref. 11

21

84G3112

BOLT 5

22

SHIELD NLA - Order Ref. 4

23

SHIELD NLA - Order Ref. 12

24

SHIELD NLA - Order Ref. 5

25

12H15

FITTING, GREASE 5

26

10H25

FITTING, GREASE 5

27

36K7

FITTING

28

TEE NLA - W/Ref. 44 - Tapered Boss Face - Was 6715187 - A

28

97K8

O-RING flared end

28

21KB0810

FITTING, HYD TEE W/Ref. 44 - Flat Boss Face

29

6715075

TUBE

30

CYLINDER See Illustration LIFT CYLINDER/ TS1235 - lift

31

6708922

HOSE

32

6708923

HOSE

33

88F6

ELBOW Was 88FN6 - A

33

97K8

O-RING flared end

34

86F6

NUT

35

6719537

TUBELINE

36

6719540

TUBELINE

37

31H27

CLIP Was 31H-26 - B

38

6719539

TUBELINE

39

6715294

TEE W/Ref. 44

39

97K10

O-RING 10 flared end

40

6719538

TUBELINE

41

21KB1010

FITTING, HYD TEE W/Ref. 44 - Was 21KN00007B - A

42

15KB1010

FITTING, HYD CONNECTOR W/Ref. 44 - tapered boss face - Was 15KV00007B - A

42

97K10

O-RING 10 flared end

43

VALVE See Illustration HYDRAULIC CONTROL VALVE/ MS1603 See Illustration HYDRAULIC CONTROL VALVE/ MS1602

44

99K10

O'RING tapered boss face

44

79K10

O RING 10 flat boss face

45

35C528

SCREW

46

872229

WASHER

47

6718693

TUBELINE

48

6718694

TUBELINE

49

SHIELD NLA - Order Ref. 18

50

6718475

TUBELINE

51

6701893

CLAMP

52

6728023

CLAMP

53

35C536

BOLT

54

84G3728

BOLT

55

59D8

NUT 5

56

6717933

CLAMP

57

83D5

NUT 5

58

6675734

STRAP, TIE button head

59

6728023

CLAMP

60

6553709

WASHER rectangular

61

6624289

STRAP, TIE

62

36K8

CAP

63

6701892

CLAMP
