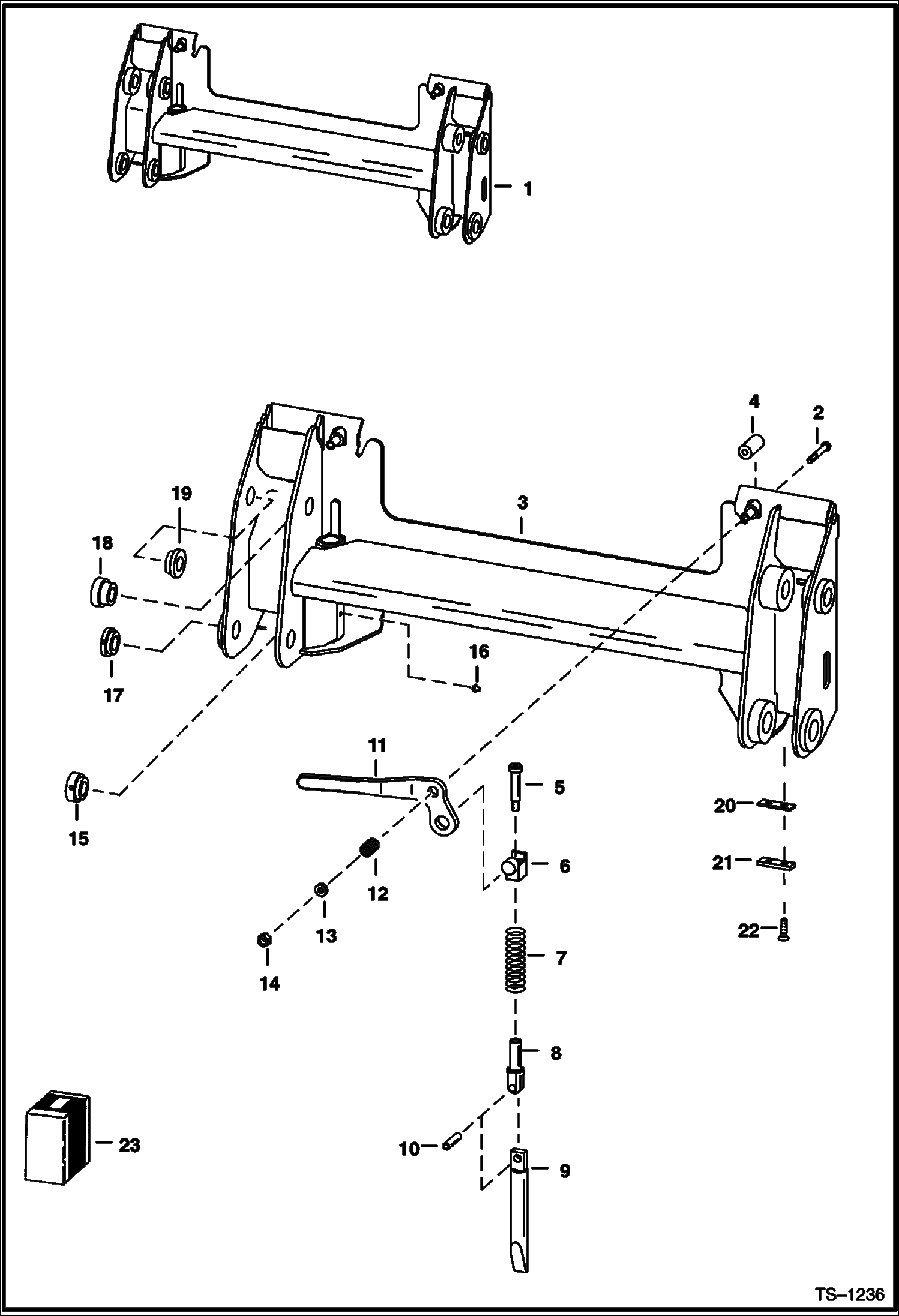

Запчасти Bobcat 800s BOB-TACH MAIN FRAME

1

6703666

BOB-TACH See Illustration DECALS/ B14391 - Ref. 2-22 - Also Order 6561383 decal

2

17C660

BOLT in kit

3

FRAME NLA

4

6702958

BUSHING, WELD-ON

5

6728473

BOLT, SHOULDER pre-applied thread locker - Was 38C1036 - A

6

6704240

PIVOT ASSY. 0.75'' long pin - not in kit

6

6731119

PIVOT, WEDGE 1.95'' (49,53 mm) long pin - in kit - Was 6714576 - A

7

6578253

SPRING, COMPRESSION Was 6562018 - A

8

6704248

PIVOT, WEDGE

9

6737191

WEDGE Was 6704242 - A

10

14J5032

PIN, STRAIGHT

11

6702904

LEVER, BOB-TACH RH

11

6702903

LEVER, BOB-TACH LH

12

6713040

SPRING in kit

13

619021

WASHER, 5

14

85D6

NUT, 5

15

6708403

BUSHING weld on

16

12H15

FITTING, GREASE 5

17

6708405

BUSHING weld on

18

6708402

BUSHING weld on

19

6708404

BUSHING weld on

20

6579106

SHIM 0.125

21

6579104

SHIM 0.25

22

9G620

BOLT 5

23

6724775

LEVER KIT RH - Bob-Tach - Ref. 2 & 5-14

23

6724776

LEVER KIT LH - Bob-Tach - Ref. 2 & 5-14
