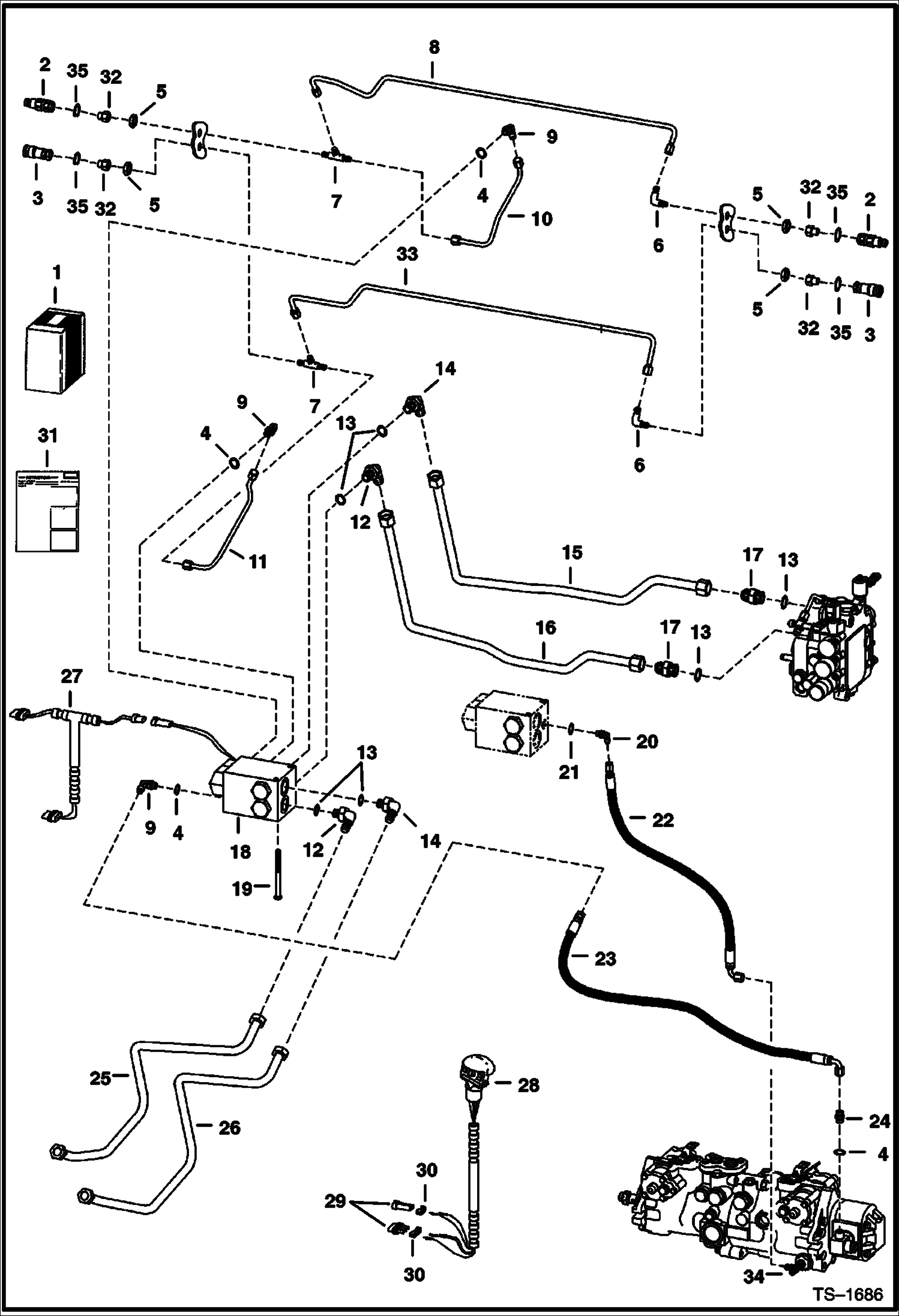

Запчасти Bobcat 800s REAR AUXILIARY (W/FF Couplers) (S/N 5141 22001-39999, 5142 22001-39999) ACCESSORIES & OPTIONS
№
Артикул
Название
Примечание
Количество
1
6716766
KIT Ref. 2-35
2
6667804
COUPLER, FF MALE
3
6667803
COUPLER, FF FEMALE
4
99K6
O RING tapered boss face
5
86F5
NUT
6
ELBOW NLA - Was 88FN00005B - A
6
88F5
ELBOW
7
TEE NLA - Was 91KN00005B - A
7
91K5
TEE flat boss face
7
97K6
O RING
8
6715319
TUBELINE to male couplers
9
ELBOW NLA - W/Ref. 4 - tapered boss face - Was 17KV00005B - A
9
97K6
O RING flared end
9
17KB0606
FITTING W/Ref. 4 - flat boss face
10
6712029
TUBE
11
6712028
TUBE
12
ELBOW NLA - W/Ref. 13 - tapered boss face - Was 17KV00008B - A
12
97K12
O'RING flared end
12
17KB1212
FITTING, HYD ELBOW W/Ref. 13 - flat boss face
13
99K12
O RING tapered boss face
14
6716443
ELBOW W/Ref. 13
14
97K12
O'RING flared end
15
TUBELINE NLA - Order 6717304 & 6717303 tubeline - See Service Letter dated 10 Mar 99 - Was 6716381 - A
15
6717304
TUBELINE
16
TUBELINE NLA - Order 6717303 & 6717304 tubeline - See Service Letter dated 10 Mar 99 - Was 6716382 - A
16
6717303
TUBELINE
17
15K8
FITTING existing - W/Ref. 13 - flat boss face
18
6665572
VALVE See Illustration REAR AUXILIARY VALVE/ TS1362
20
ELBOW NLA - W/Ref. 21 - tapered boss face - Was 17KV00003B - A
20
96K4
O-RING flared end
20
17KB0404
FTG HYD ELBOW 90 W/Ref. 21 - flat boss face
21
79K4
O RING 10
22
6714875
HOSE
23
6714808
HOSE
24
ADAPTER NLA - W/Ref. 4 - flat boss face - Was 15KV00005B - A
25
6712716
TUBE
26
6712715
TUBE
27
6710435
HARNESS aux. bleed - PWM
28
6680414
HANDLE ASSY. Was 6705921 - A
29
6641179
CONNECTOR 2-pin
30
6640700
LOCK 3-pin
30
6641180
LOCK Use W/ 2-pin connector
31
6900572
INSTRUCTIONS
32
6706633
ADAPTER W/Ref. 35 - flat boss face
33
6715320
TUBELINE to female couplers
34
ADAPTER NLA - W/Ref. 4 - tapered boss face - Was 6715186 - A
34
97K6
O RING flared end
34
15KB0612
FITTING, HYD CONNECTOR flat boss face
35
79K6
O RING 10
Выбрано товаров: 53
