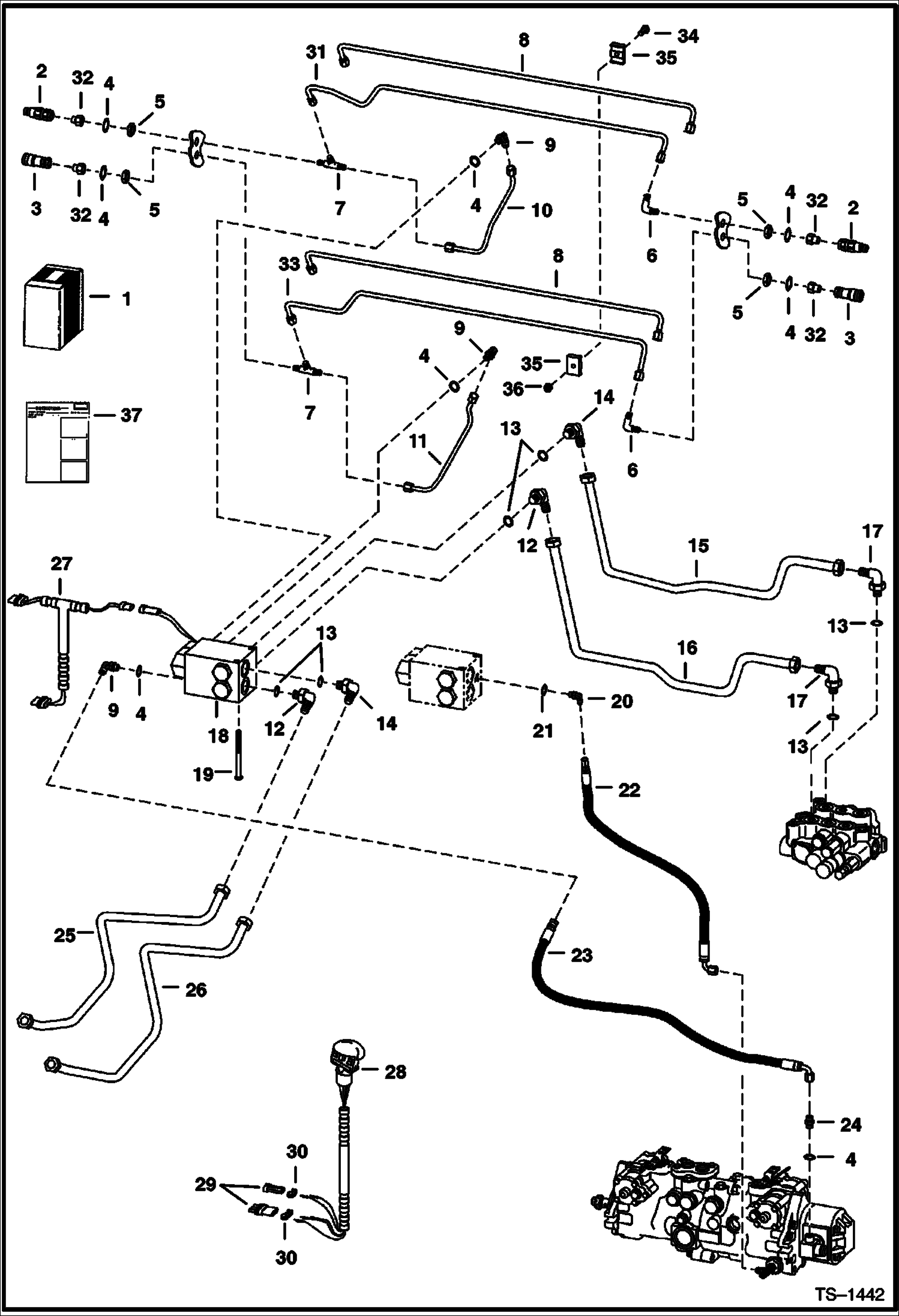

Запчасти Bobcat 800s REAR AUXILIARY (W/FF Couplers) (S/N 5141 12234-21999, 5142 11264-21999) ACCESSORIES & OPTIONS

1

KIT NLA - Ref. 2-16 & 18-32 - Order 6716766 from PARTS - also Order 6708590 , 6708591 & 6519187 (2)

2

6667804

COUPLER, FF MALE

3

6667803

COUPLER, FF FEMALE

4

79K6

O RING 10 flat boss face

4

99K6

O RING tapered boss face

5

86F5

NUT

6

88F5

ELBOW

7

TEE NLA - Was 91KN00005B - A

7

91K5

TEE flat boss face

7

97K6

O RING

8

6708779

TUBELINE not in kit

9

17K5

ELBOW W/Ref. 4 - flat boss face

9

ELBOW NLA - W/Ref. 4 - tapered boss face - Was 17KV00005B - A

9

97K6

O RING flared end

9

17KB0606

FITTING W/Ref. 4 - flat boss face

10

6712029

TUBE

11

6712028

TUBE

12

17K8

FITTING W/Ref. 13 - flat boss face

12

ELBOW NLA - W/Ref. 13 - tapered boss face - Was 17KV00008B - A

12

97K12

O'RING flared end

12

17KB1212

FITTING, HYD ELBOW W/Ref. 13 - flat boss face

13

79K12

O RING 10 flat boss face

13

99K12

O RING tapered boss face

14

6519187

ELBOW W/Ref. 13 - flat boss face

15

6708590

TUBE

16

6708591

TUBE

17

15K8

FITTING existing - W/Ref. 13 - flat boss face

18

6665572

VALVE See Illustration REAR AUXILIARY VALVE/ TS1362

19

17C672

BOLT

20

17K3

ELBOW W/Ref. 21 - flat boss face

20

ELBOW NLA - W/Ref. 21 - tapered boss face - Was 17KV00003B - A

20

96K4

O-RING flared end

20

17KB0404

FTG HYD ELBOW 90 W/Ref. 21 - flat boss face

21

79K4

O RING 10

22

6714875

HOSE Was 6709049 - A

23

6714808

HOSE Was 6536129 - A

24

15K5

FITTING W/Ref. 4 - flat boss face

25

6712716

TUBE

26

6712715

TUBE

27

6710435

HARNESS bleed - pwm

28

6680414

HANDLE ASSY. Was 6705921 - A

29

6640699

CONNECTOR 3-pin

29

6641179

CONNECTOR 2-pin

30

6640700

LOCK 3-pin

30

6641180

LOCK Use W/ 2-pin connector

31

6715319

TUBELINE to male couplers

32

6706633

ADAPTER W/Ref. 4 - flat boss face

33

6715320

TUBELINE to female couplers

34

31C420

BOLT 5

35

6578870

CLAMP tubeline

36

83D4

NUT 10

37

6724870

INSTRUCTIONS
